F1369039 GreenSmithfield Suspension Pro dimmable DALI
Designed by Jasper Morrison, 2009

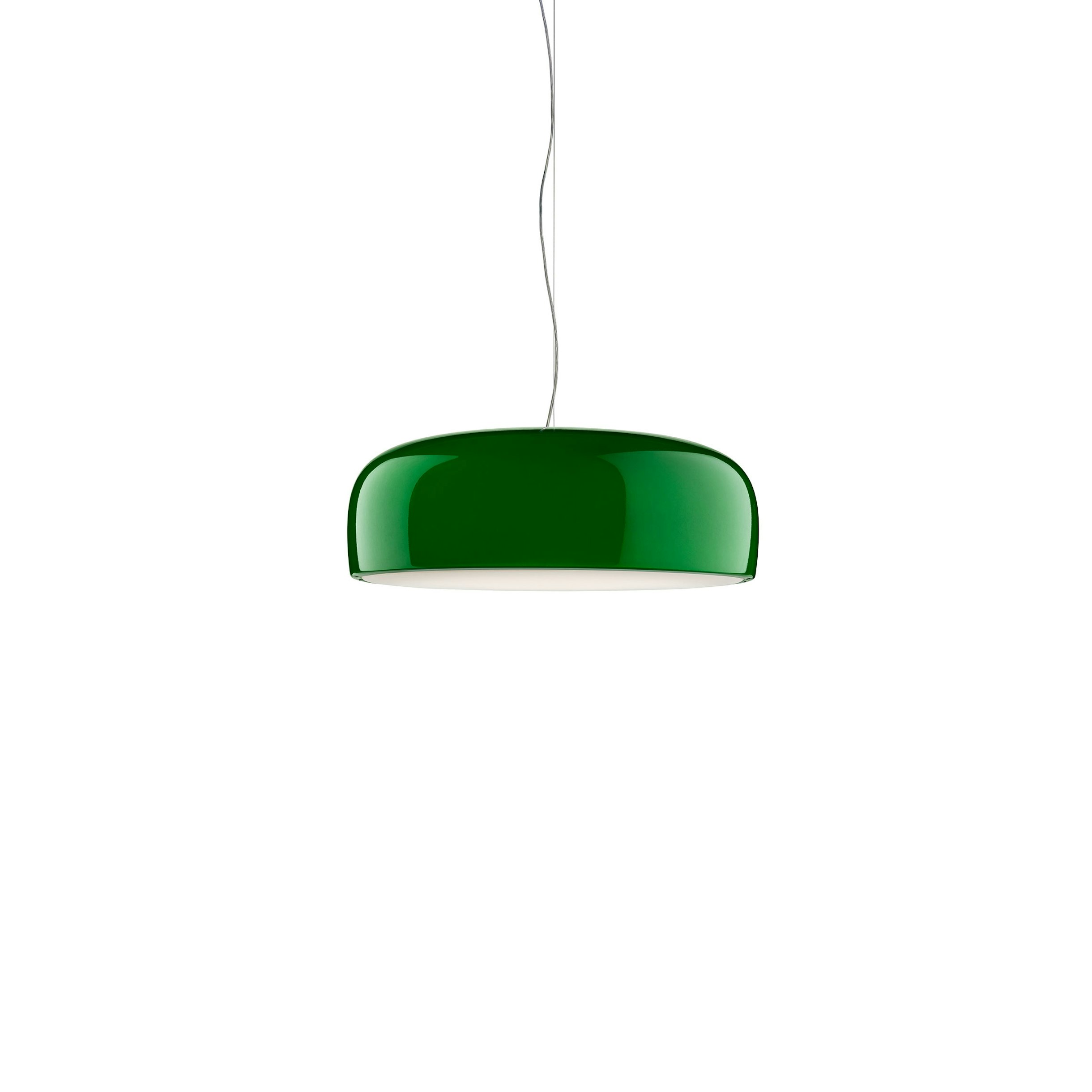

Suspension lamp with direct light. Aluminium body. Available in gloss black, white, matt black, green, red or MUD. Injection-moulded opalescent methacrylate diffuser. Steel ceiling attachment with steel suspension cable , 5 pole electric cable in PTFE double insulation, working length 2700 mm. Control DALI dimmable.
45W - 2791lm - 2700K - CRI> 95
Technical Drawing
Main specifications
EAN
8059607015162
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
45
System power (W)
45
Lumen Output (lm)
2791
Schematic light drawing
Photometric
Light distribution
Roto symmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
200-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Green
Length (mm)
600
Cord colour
Clear
Cord length (mm)
2700
Canopy colour
Green
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
5.8
Package height (mm)
310
Package width (mm)
710
Package length (mm)
710
Package volume (m3)
0.16
IP internal
20
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
Spare Parts
01.
Smithfield Suspension Green rose assembly
RF1367039
02.
Kit of 5 or rings
RF05382
03.
Smithfiled Suspension 2,7mt fep/pvc 5x0,75 transparent cable
RF29934
04.
3 mt steel cable ø1,2 with 19 winded wires
RF29665
05.
Driver 60W 500-1400mA 200-240V
RF31674
06.
Methacrylate diffuser
RF19022
