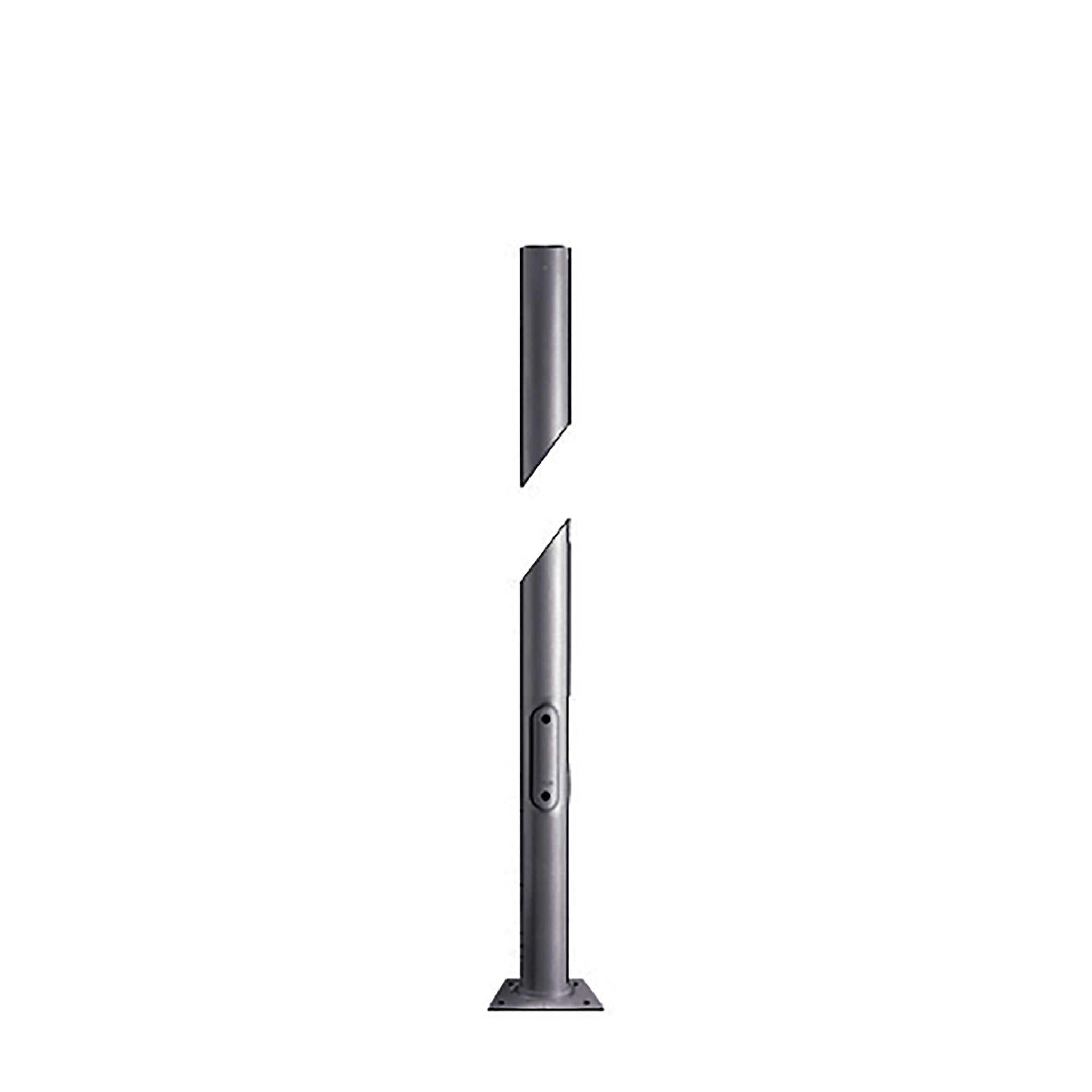

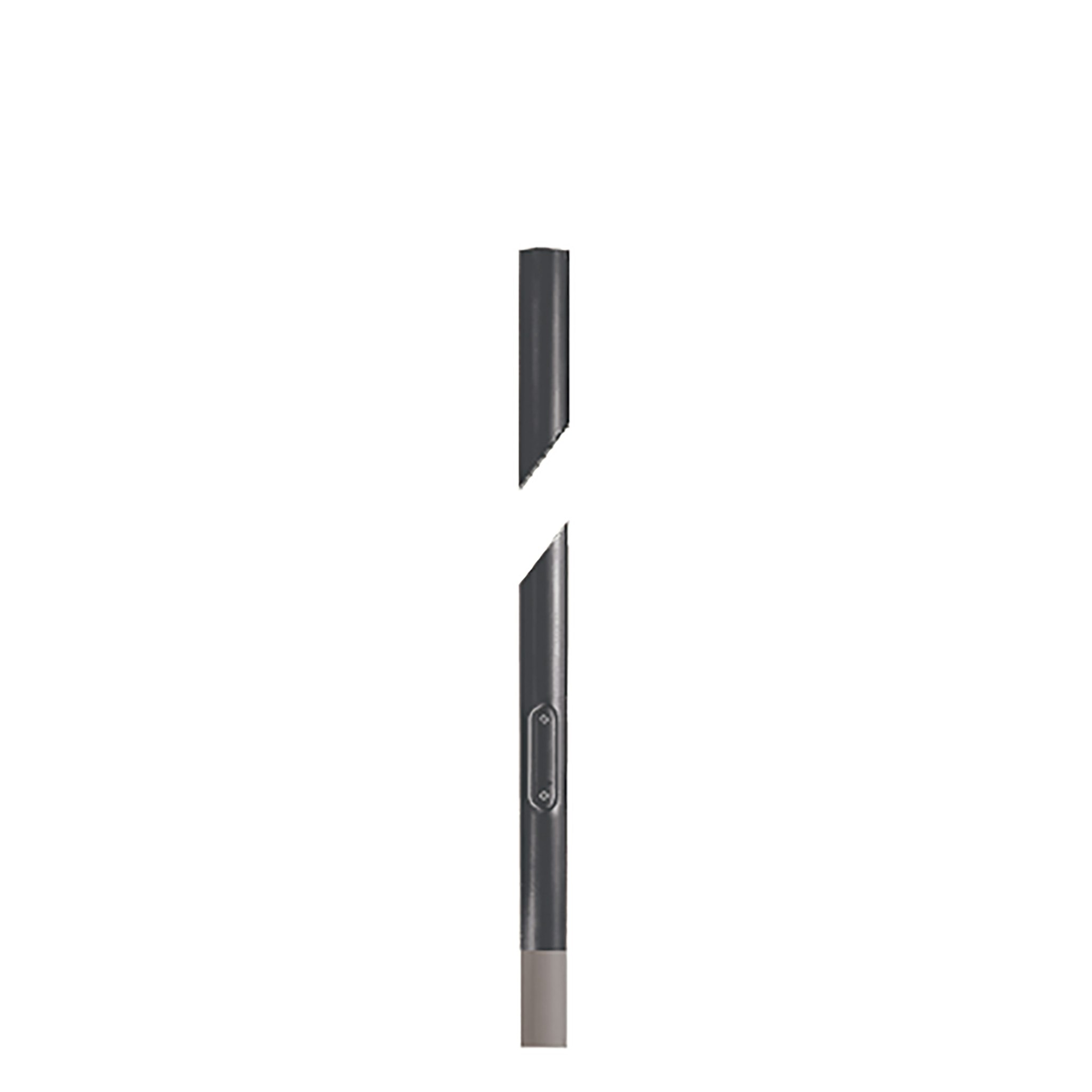

Related to
Spine
F02502BA033AnthraciteSpine T 1 Absolute
Designed by Vincent Van Duysen, 2021
LED COB light source integrated. Integrated electric power supply 220-240 V ON/OFF. Integrated support for pole fixing, for poles with a diameter between 60 and 120 mm and a maximum thickness of 3 mm. Equipped with a 5 m neoprene cable (10 m upon request) for remote connection. To guarantee its water tightness, it is recommended to use flexible cables designed for outdoor use. Upon request: 1-10 V or DALI dimmable version with 24 Vdc remote power supply.
923lm - 2700K - CRI> 80 - Beam° 15
Technical Drawing
Main specifications
EAN
8054793776798
Mounting
Pole Top
Light source type
LED
Light sources included
Yes
LED type
LED array
Number of lamps
1
System power (W)
11
Source flux (lm)
1247
Lumen Output (lm)
923
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
15
Beam angle C90-270 (º)
15
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Anthracite
Orientation
Adjustable
Rotation (º)
45
Longitudinal tilting (°)
165
Cord length (mm)
5000
Net weight (kg)
0.9
Package height (mm)
265
Package width (mm)
290
Package length (mm)
205
Package volume (m3)
0.02
IP internal
66
Notes
5 m neoprene cable (10 m upon request) for remote connection.
