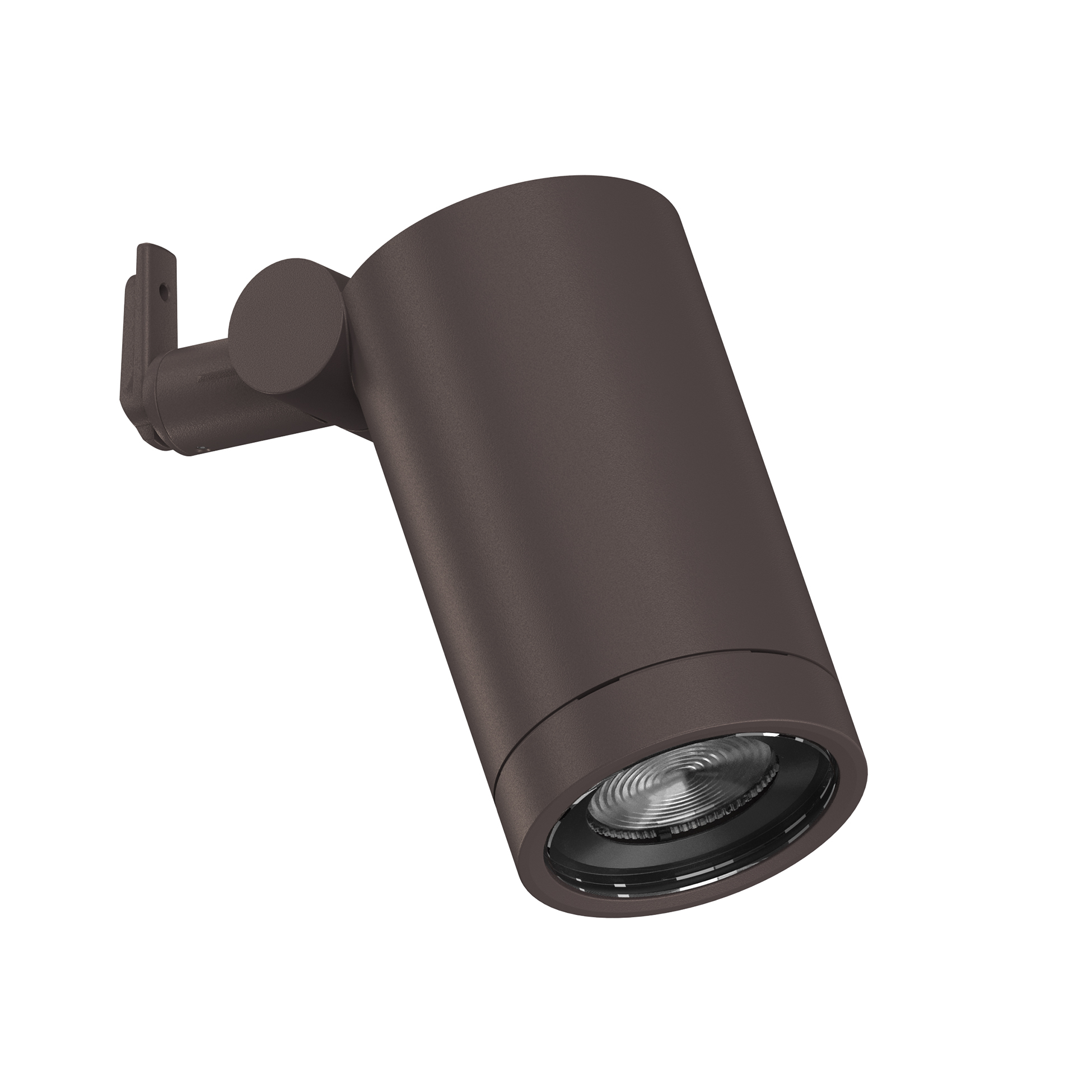

F02662BB018 Deep BrownSpine T 2 Pro Hp Dimmable 1-10V
Designed by Vincent Van Duysen, 2021
Energy-efficient Power LED source included Equipped with an integrated snoot for higher visual comfort. Collimators are available as an accessory to modify the beam opening. Integrated electric power supply 220-240 V ON/OFF and adjustable 1-10 V or DALI. Integrated support for pole fixing, for poles with a diameter between 60 and 120 mm and a maximum thickness of 3 mm. Equipped with a 5 m neoprene cable (10 m upon request) for remote connection. To guarantee its water tightness, it is recommended to use flexible cables designed for outdoor use.
1443lm - 2700K - CRI> 80 - Beam° 15
Technical Drawing
Main specifications
EAN
8054793461298
Mounting
Pole Top
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
System power (W)
17
Source flux (lm)
1739
Lumen Output (lm)
1443
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
15
Beam angle C90-270 (º)
15
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 1-10V
Dimming interface
Dimmer Integrated
Emergency
No
Physical
Colour
Deep Brown
Orientation
Adjustable
Rotation (º)
45
Longitudinal tilting (°)
165
Net weight (kg)
2.5
Package height (mm)
205
Package width (mm)
290
Package length (mm)
265
Package volume (m3)
0.02
IP internal
66
Notes
5 m neoprene cable (10 m upon request) for remote connection.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
