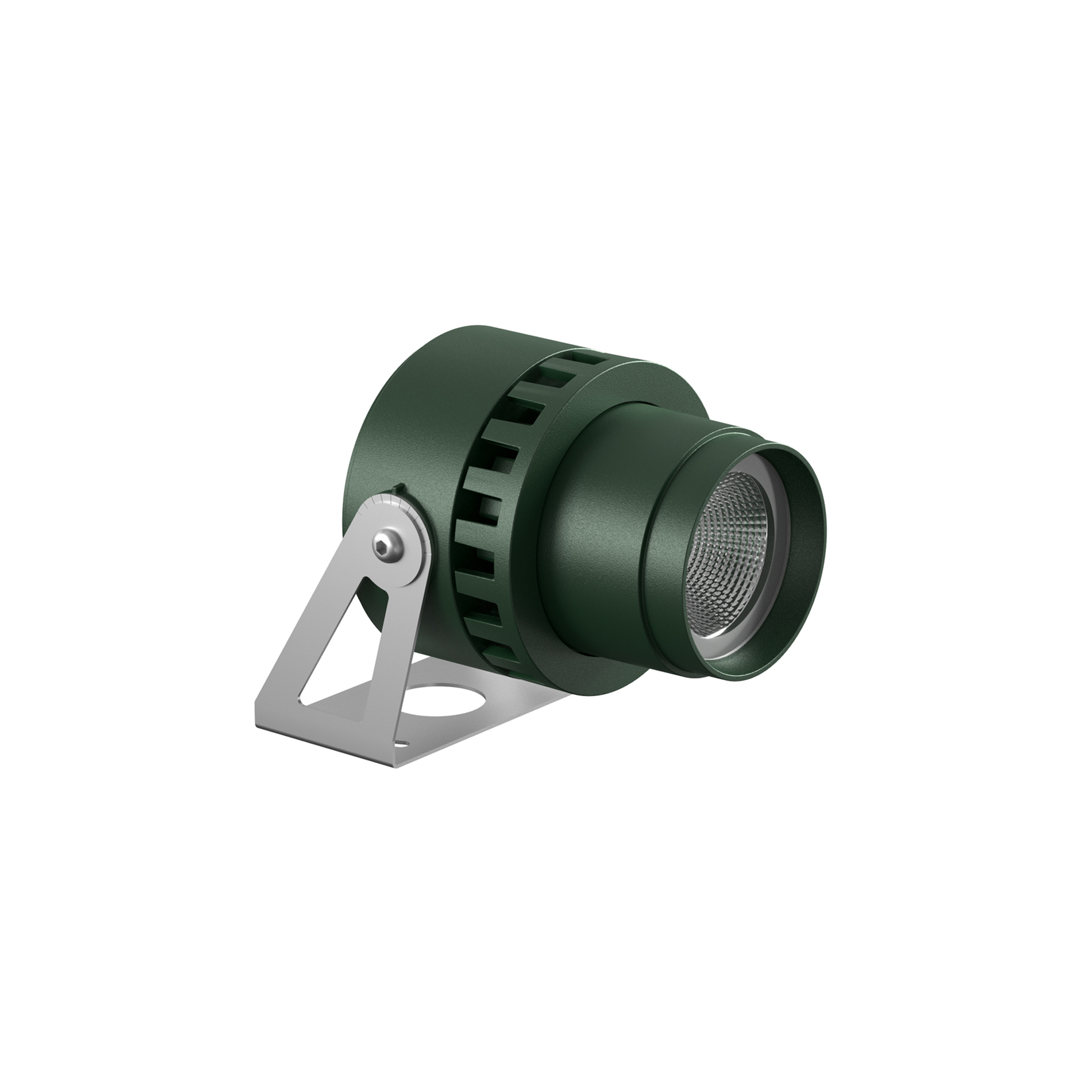

Spock
FA54100512 Forest Green
Spock 1
New
Designed by FLOS Outdoor, 2013
LED source included. Integrated electrical power supply 220-240V ON/OFF. Fixing bracket included. Equipped with a 1000 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Optional IP68 connectors available. The metal nail for ground installation needs to be ordered separately. Optional accessories to regulate the light beam. Dimmable version available upon request.
9W - 778lm - 4000K - CRI> 80 - Beam° 50
Technical Drawing
Main specifications
EAN
8054793686981
Mounting
Ground
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
LED array
Number of lamps
1
Power (W)
9
System power (W)
11
Source flux (lm)
1124
Lumen Output (lm)
778
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
4000
CRI>
80
Beam angle C0-180 (º)
50
Beam angle C90-270 (º)
50
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Forest Green
Orientation
Adjustable
Longitudinal tilting (°)
270
Net weight (kg)
0.89
Package height (mm)
150
Package width (mm)
135
Package length (mm)
180
IP internal
66
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Dimmable version on request
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
