String Light

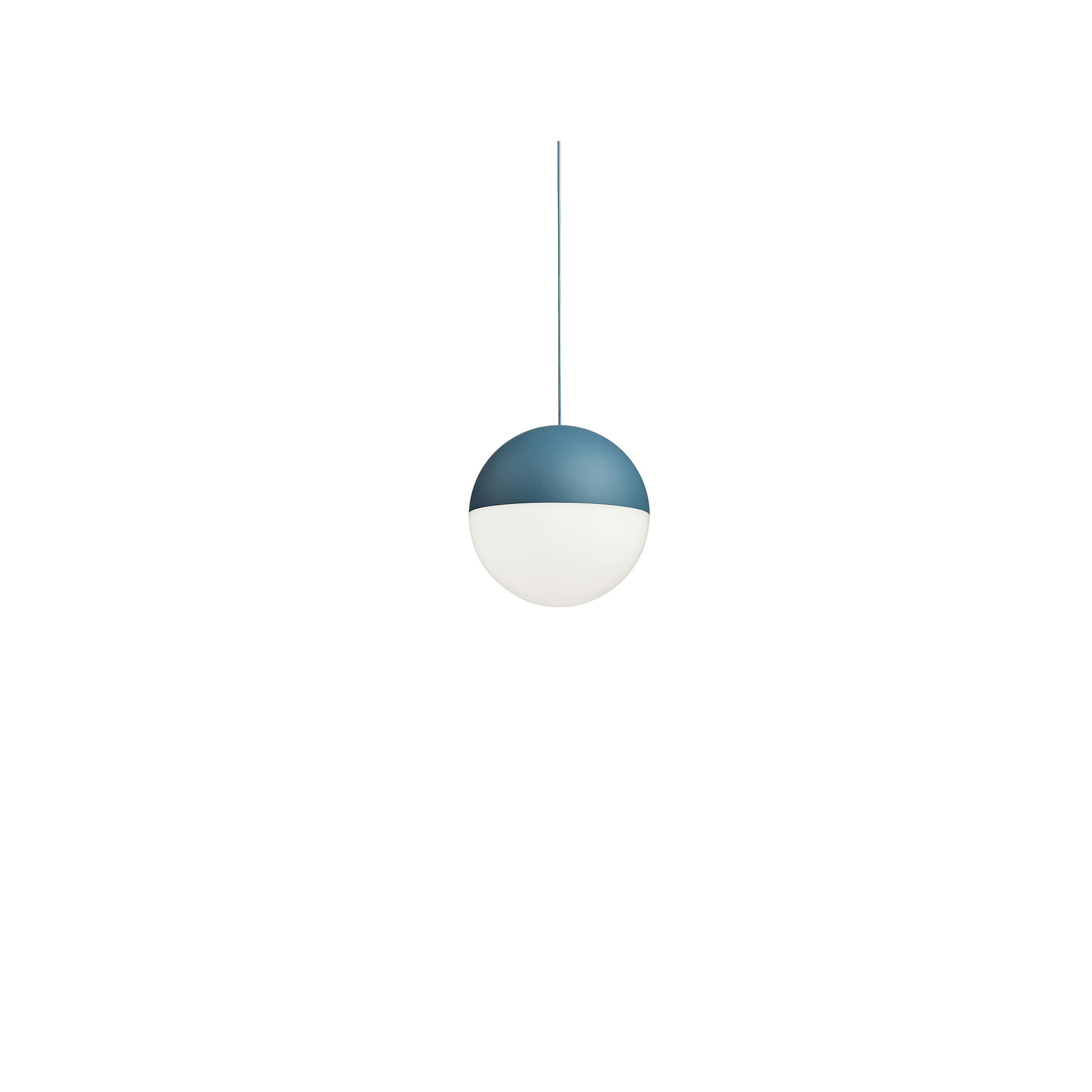

F6486014BlueString Light - Sphere head - 12mt cable
Designed by Michael Anastassiades, 2014
Suspension lamp emitting diffused light. Varnished die-cast aluminium body coated with clear soft-touch varnish and an optical diffuser in opal polycarbonate. The suspension system (12 or 22mt long) includes a Kevlar-reinforced coaxial cable. Available with wall/ceiling connection or floor switch in black polycarbonate. The on/off switch features an electronic, optical and touch-dim mechanism or a Casambi Ready version with touch dimmer included. Must be paired with either the floor switch or ceiling/wall rose (sold separately).
21W - 1515lm - 2700K
Technical Drawing
Main specifications
EAN
8059607041413
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Power (W)
21
Lumen Output (lm)
1515
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Roto symmetric
CCT (K)
2700
Electrical
Insulation class
III
Main voltage (Vac)
48
Forward voltage (V)
48
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Electronic 48V
Dimming interface
Dimmer Integrated
Batteries inside
No
Physical
Colour
Blue
Length (mm)
190
Cord colour
Blue
Cord length (mm)
12000
Net weight (kg)
1.35
Package height (mm)
300
Package width (mm)
300
Package length (mm)
300
Package volume (m3)
0.03
IP internal
20
Accessories & Power Supply
Spare Parts
01. String Light Kit with blue hooks and blue wire cable clamps
RF6480114
02. Power supply unit for led
RF22934
03. String Light Kit with allen key and screws for ceiling rose assembly
RF6480200
