Superarchimoon
F6366020 FabricSuperArchimoon
Designed by Philippe Starck, 2000

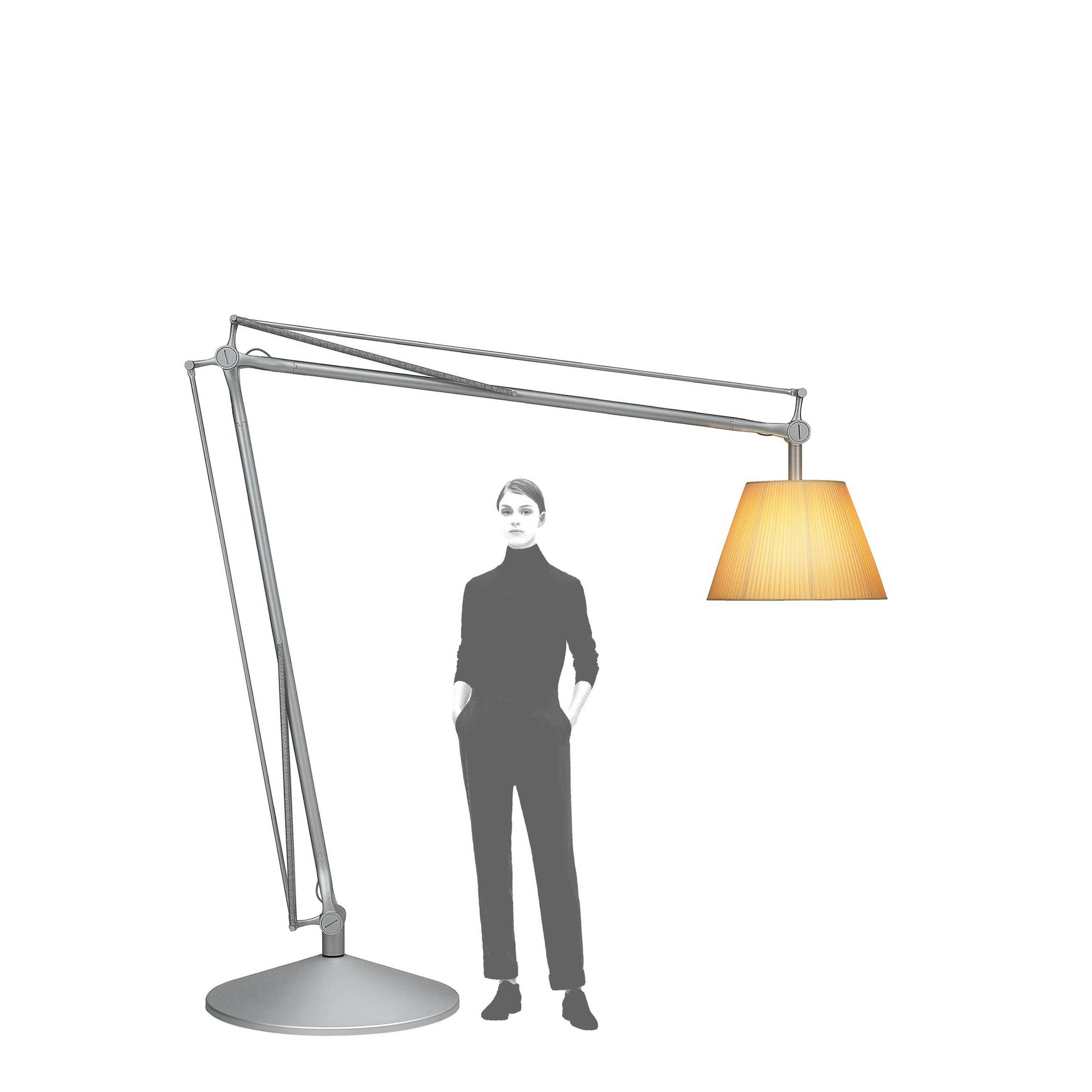

Floor lamp providing direct and diffused light. Acid-etched hand-blown pressed borosilicate glass internal diffuser. Plissé cloth external diffuser. Sand-cast, aluminum diffuser support. Gray painted assembly composed of tubular aluminum arms and tie rods, stainless steel springs, and die-cast aluminum joints. Sand-cast aluminum base with gray painted spun aluminum cover. On the cable there is the electronic dimmer which allows the regulation of light brightness.
Halogen - 250W
Technical Drawing
Main specifications
EAN
8059607079874
Mounting
Floor
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
250
Schematic light drawing
Photometric
Lighting type
Indirect, Direct
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Plug type
Type C
Batteries inside
No
Physical
Colour
Fabric
Length (mm)
790
Cord colour
Grey
Cord length (mm)
1600
Net weight (kg)
90.88
Package volume (m3)
1.28
IP internal
20
Bulbs
Spare Parts
01.

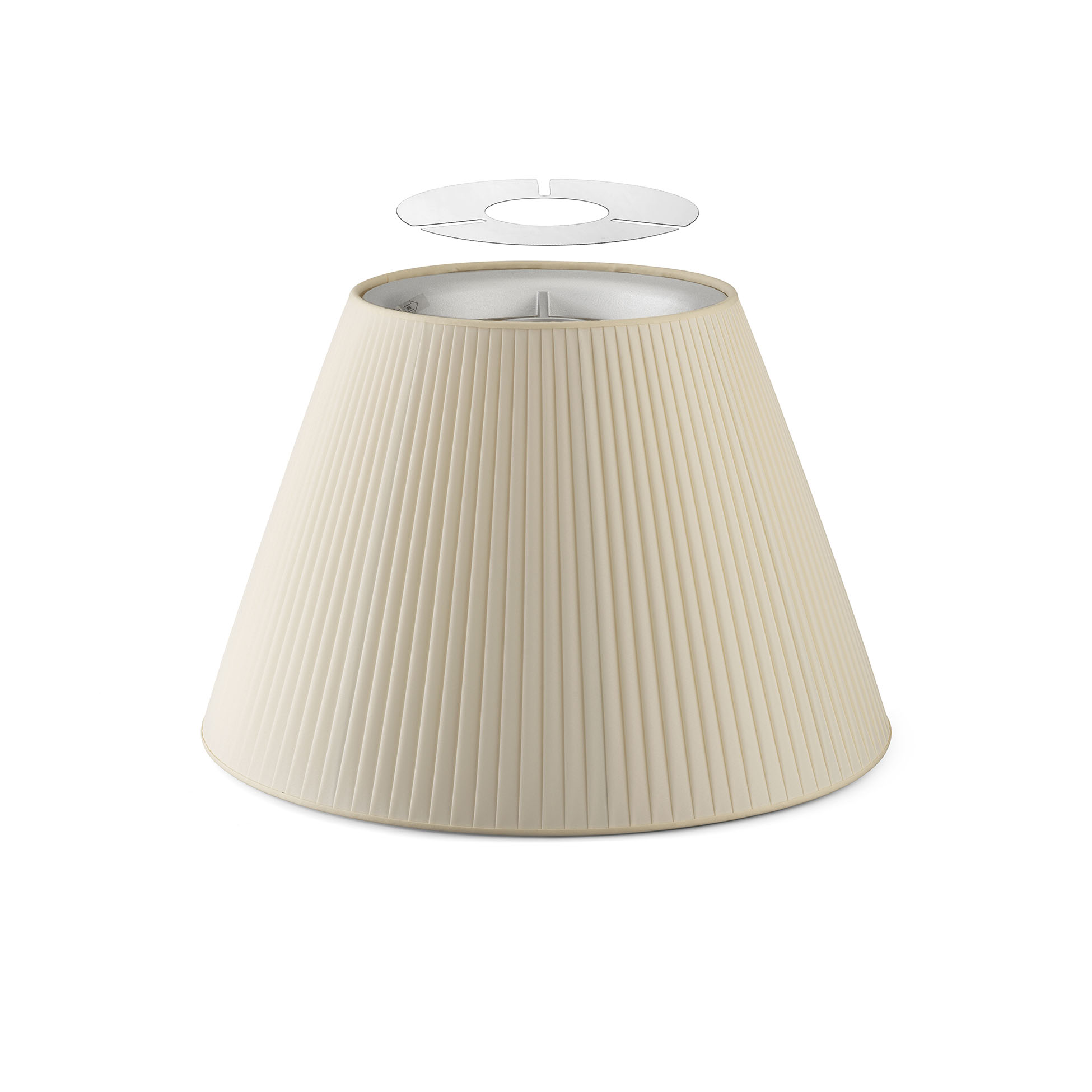

Superarchimoon Diffuser Assembly
F6372007
02.
Superarchimoon Anti-dust screen
RF10277
03.
Superarchimoon Acid-etched diffuser assembly
RF10442
04.
Superarchimoon Ivory shade
RF10023
05.
Superarchimoon Bag with fixing elements for diffuser
RF6372100
06.
Superarchimoon Grey base cover
RF6372300
07.
Superarchimoon Floor support bag kit
RF6372200
08.

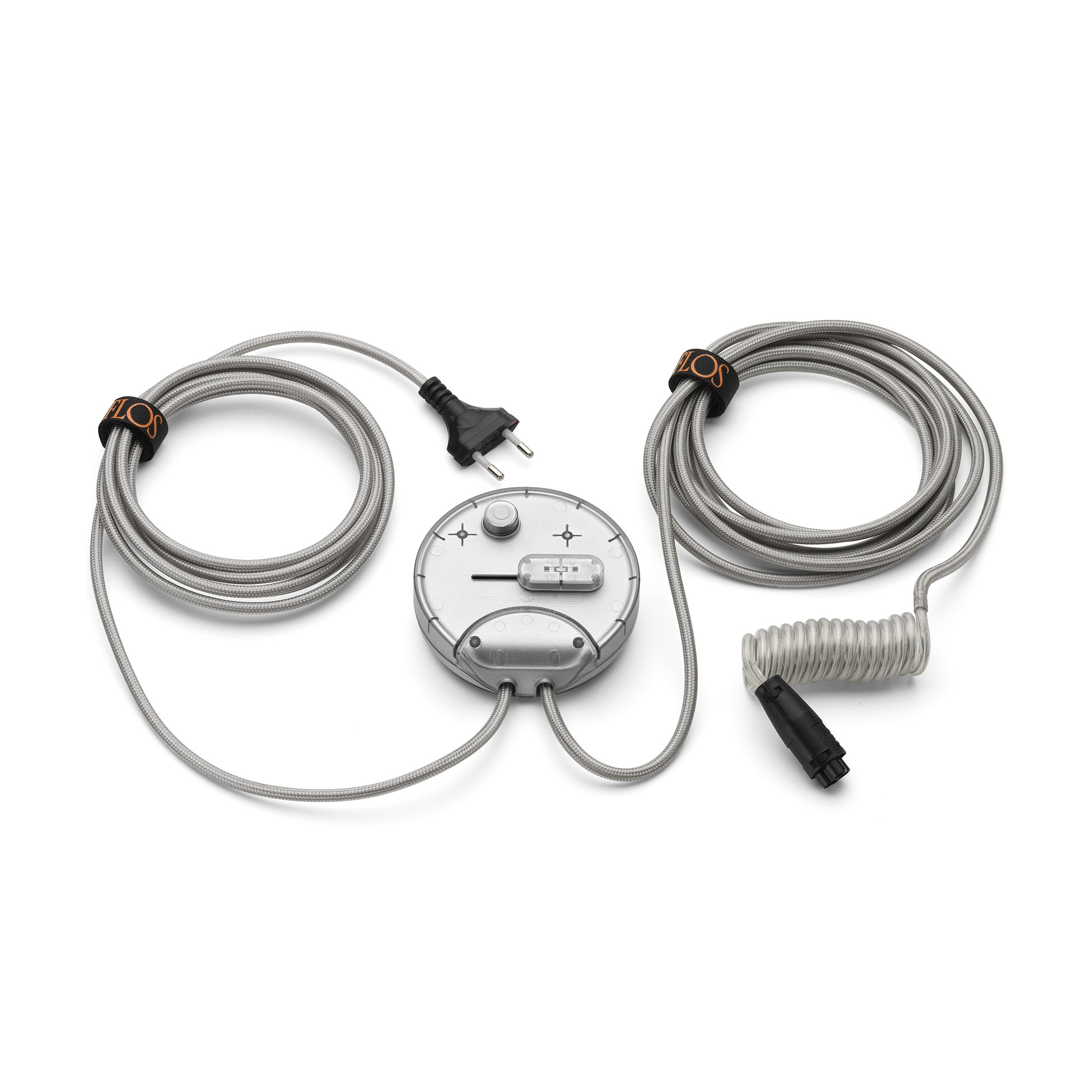

Superarchimoon Electrical wiring assembly with dimmer 1012s lfp
RF29987
