Taccia

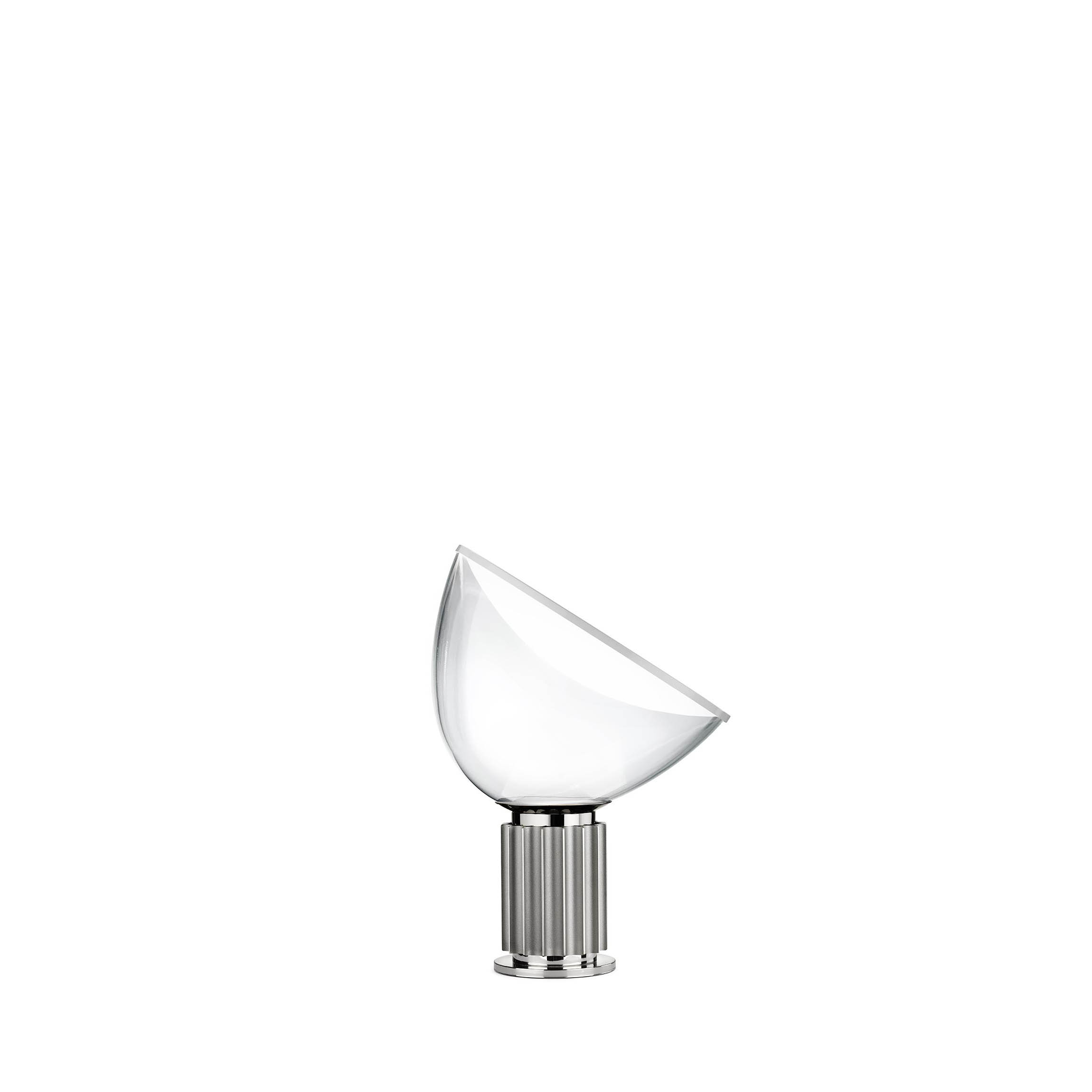

F6604004 SilverTaccia Small
Designed by Achille and Pier Giacomo Castiglioni, 1962
Table lamp providing indirect and reflected light. Reflector in painted aluminium, gloss white on the outside and matt white on the inside. Directionable diffuser in transparent blown glass. Body in matt black or naturally anodized extruded aluminium. Base in nickel-plated ABS+PC. Electric cable of useful length 190 cm, with dimmer switch for ON/OFF and adjustment of the light flow between 10-100%. Plug-in power supply with interchangeable plugs.
16W - 2700K
Technical Drawing
Main specifications
Mounting
Table
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Power (W)
16
Photometric
Lighting type
Indirect
Light distribution
Asymmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Electronic 24V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Batteries inside
No
Physical
Colour
Silver
Length (mm)
142
Cord colour
Black
Cord length (mm)
1900
Net weight (kg)
4.25
Package volume (m3)
0.11
IP internal
20
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class D
Replaceable (LED only) light source by a professional
Replaceable control gear by an end-user
Spare Parts
01.
Taccia Small led transparent diffuser & shiny reflector
F6606000
02.
Taccia Small White reflector
RF24886
03.
Taccia small led base with old dimmer
F6605004
04.
Jack plug with coaxial cable and dimmer
RF6605100
05.
Black plug assembly kit & 24V driver
RF6600230
