Taraxacum 88
F7431000Polished Aluminium

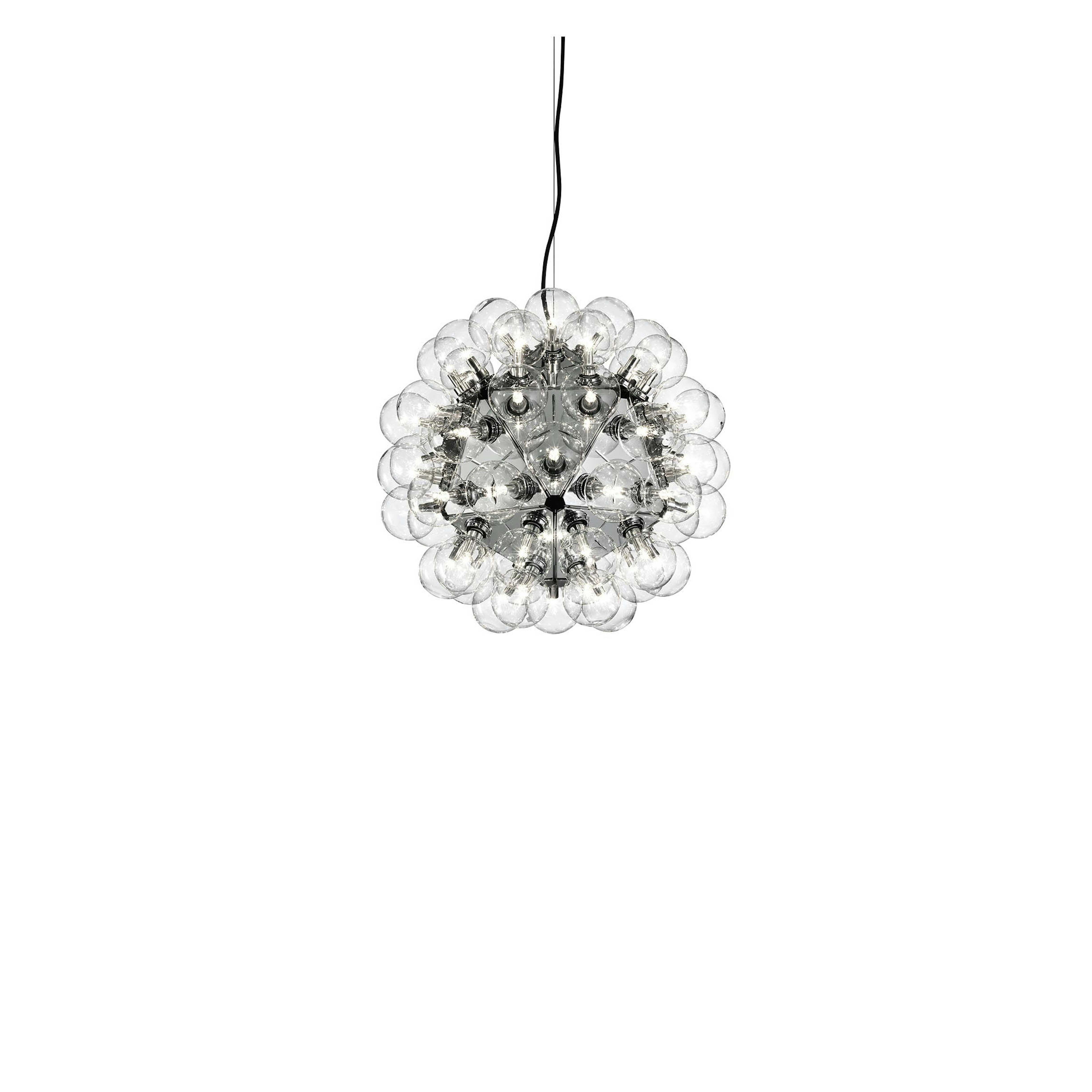

Taraxacum 88 Suspension 1

Suspension lamp emitting direct and reflected light. The modular structure comprises 20 pressed and polished aluminium triangles, supporting 60 exposed clear Globolux bulbs. Steel ceiling fitting and rose.

LED retrofit - 60 x 3W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Taraxacum_88-1
Main specifications
Mounting
Suspension
Environments
Indoor dry location
Light source type
Bulb
Light sources included
Yes
Lamp category
LED retrofit
Lamp holders
E27
Ilcos
HSGSG
Number of lamps
60
Power (W)
3
Photometric
Lighting type
Total
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Polished Aluminium
Length (mm)
800
Cord colour
Black
Cord length (mm)
5500
Canopy length/diameter (mm)
180
Canopy height (mm)
85
Net weight (kg)
20.8
Package volume (m3)
0.58
IP internal
20
CE
EAC
CMIM
ENEC
IRAM
UKCA
IECEC
RETILAP
Autoprotected Lamp
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions
Dimmers or chargers compatible
Dimmers or chargers compatible

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

Bulbs

Thumbnail
x4
INCLUDEDLED Global Lamp E27 3W 2500K Dimmable (Set 15pcs)RF35800
Thumbnail
x60
NOT INCLUDEDLED Global Lamp 3W 200lm E27 180-265V 2500KRF35799

Spare Parts

F7430000-taraxacum-flos-boom

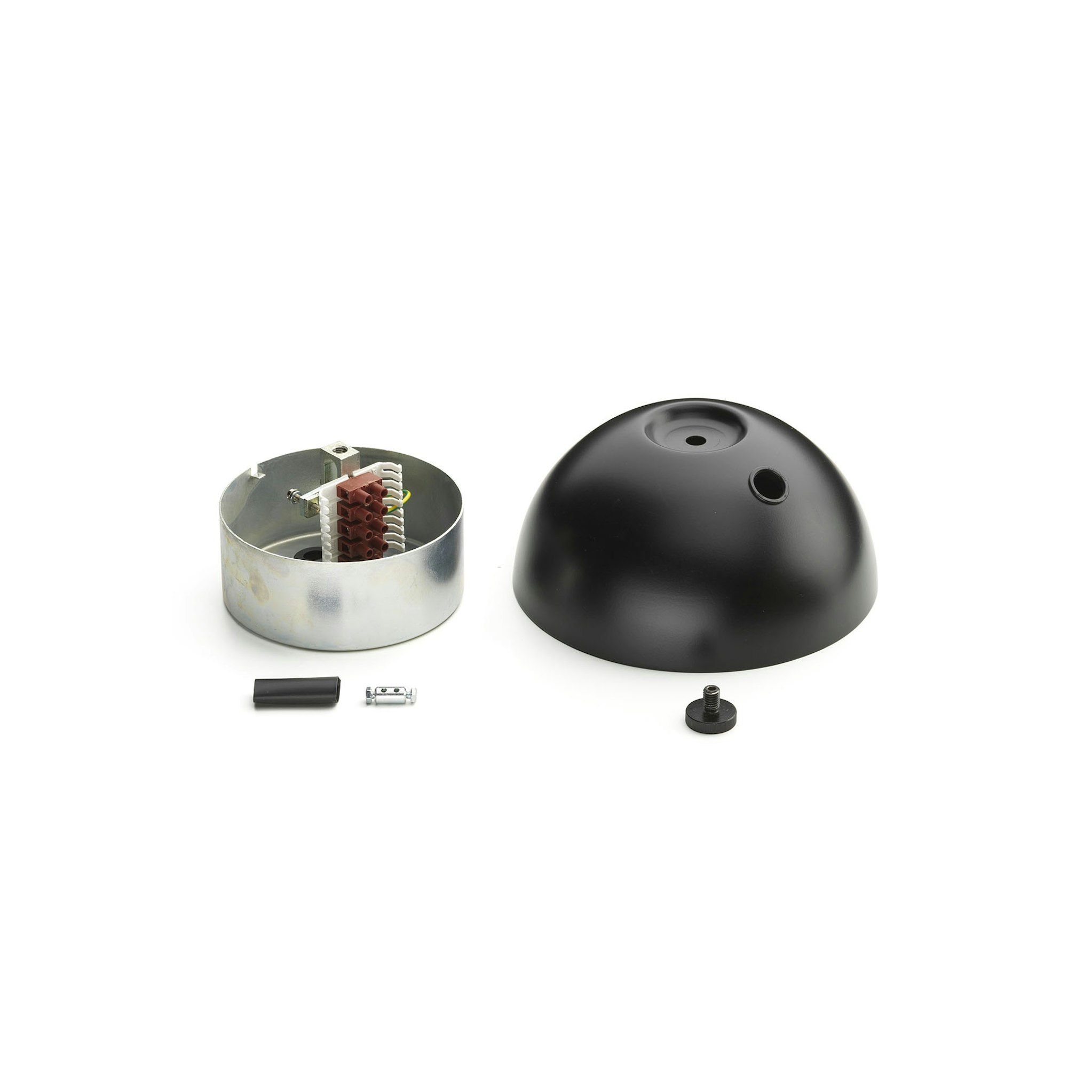

01. Rose assembly
RF01484
02. E27 Lamp Holder Black
RF03927
03. Taraxacum 88 Lampholder Support Assembly
RF06118
x1
Rose assemblyRF01484
x1
E27 Lamp Holder BlackRF03927
x1
Taraxacum 88 Lampholder Support AssemblyRF06118
