Related to
Tau
FA523022 Transparent

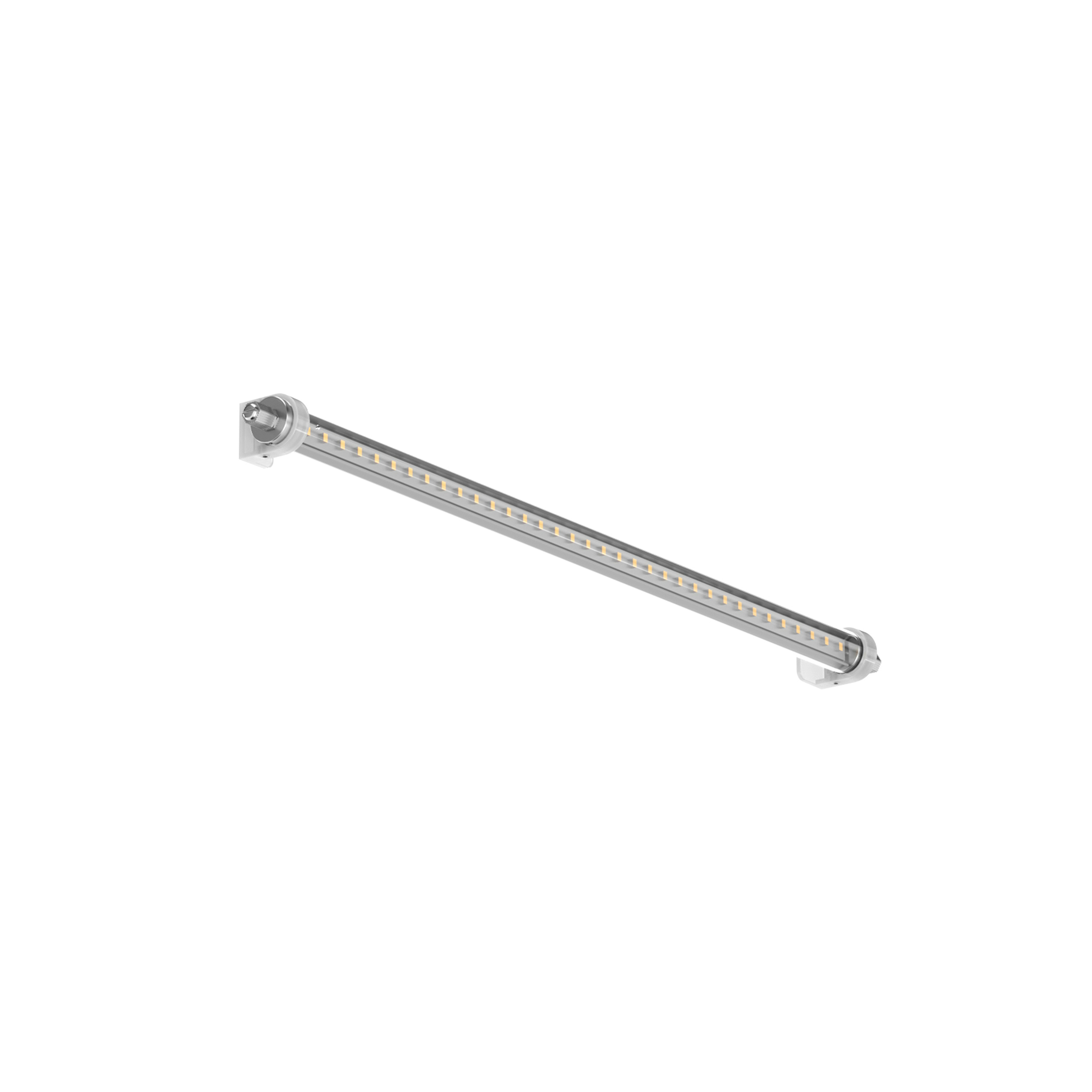

Tau L 554
New
Designed by FLOS Outdoor
LED light source included. Screw connector at the tube’s end. 24V dc remote electric power supply and individual or series feeding cables, to be ordered separately. Transparent polycarbonate diffuser. Adjustable light intensity.
5W - 384lm - 4000K - CRI> 80 - Beam° 110
Technical Drawing
Main specifications
EAN
8054793640280
Mounting
Ceiling, Wall
Environments
Outdoor wet location
LED type
Power LED
Power (W)
5
System power (W)
5
Source flux (lm)
420
Lumen Output (lm)
384
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
4000
CRI>
80
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
108
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
24
Power supply
Remote excluded
Power supply type
Non Dimmable, Dimmable 1-10V, Dimmable DALI 1
Emergency
No
Physical
Colour
Transparent
Orientation
Fixed
Net weight (kg)
0.41
Package height (mm)
720
Package width (mm)
73
Package length (mm)
73
IP internal
65
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Replaceable (LED only) light source by a professional
