Thin LED

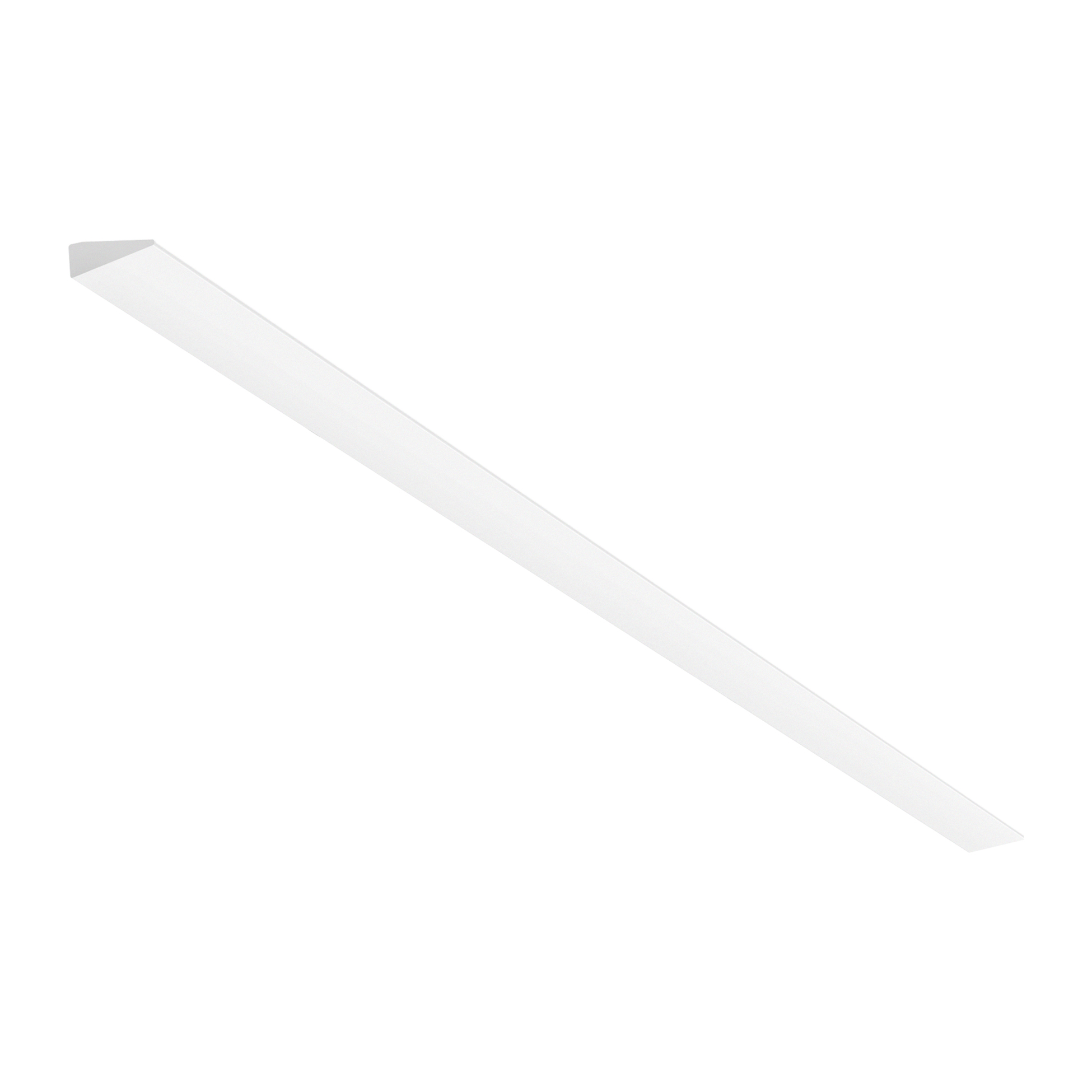

09.0100.30B WhiteThin LED 1034 mm
Designed by FLOS Architectural, 2015
Wall application luminaire for indirect lighting with LED. Remote transformer not included.
LED - Top LED - 20.5W - 1863lm - 3000K - CRI> 90 - Beam° 101
Technical Drawing
Main specifications
Mounting
Wall surface
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Top LED
Lamp category
LED
Number of lamps
1
Power (W)
20.5
Source flux (lm)
2133
Lumen Output (lm)
1863
Schematic light drawing
Photometric
Lighting type
Indirect
Light distribution
Asymmetric
CCT (K)
3000
CRI>
90
Beam angle C0-180 (º)
101
Beam angle C90-270 (º)
43
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
24
Power supply
Remote excluded
Dimmable
No
Power supply type
Non Dimmable, Dimmable 1-10V, Dimmable DALI 1
Emergency
No
Physical
Colour
White
Trim
No
Orientation
Fixed
Length (mm)
1034
Net weight (kg)
0.30
IP internal
20
IP external
20
Notes
42 LEDs
