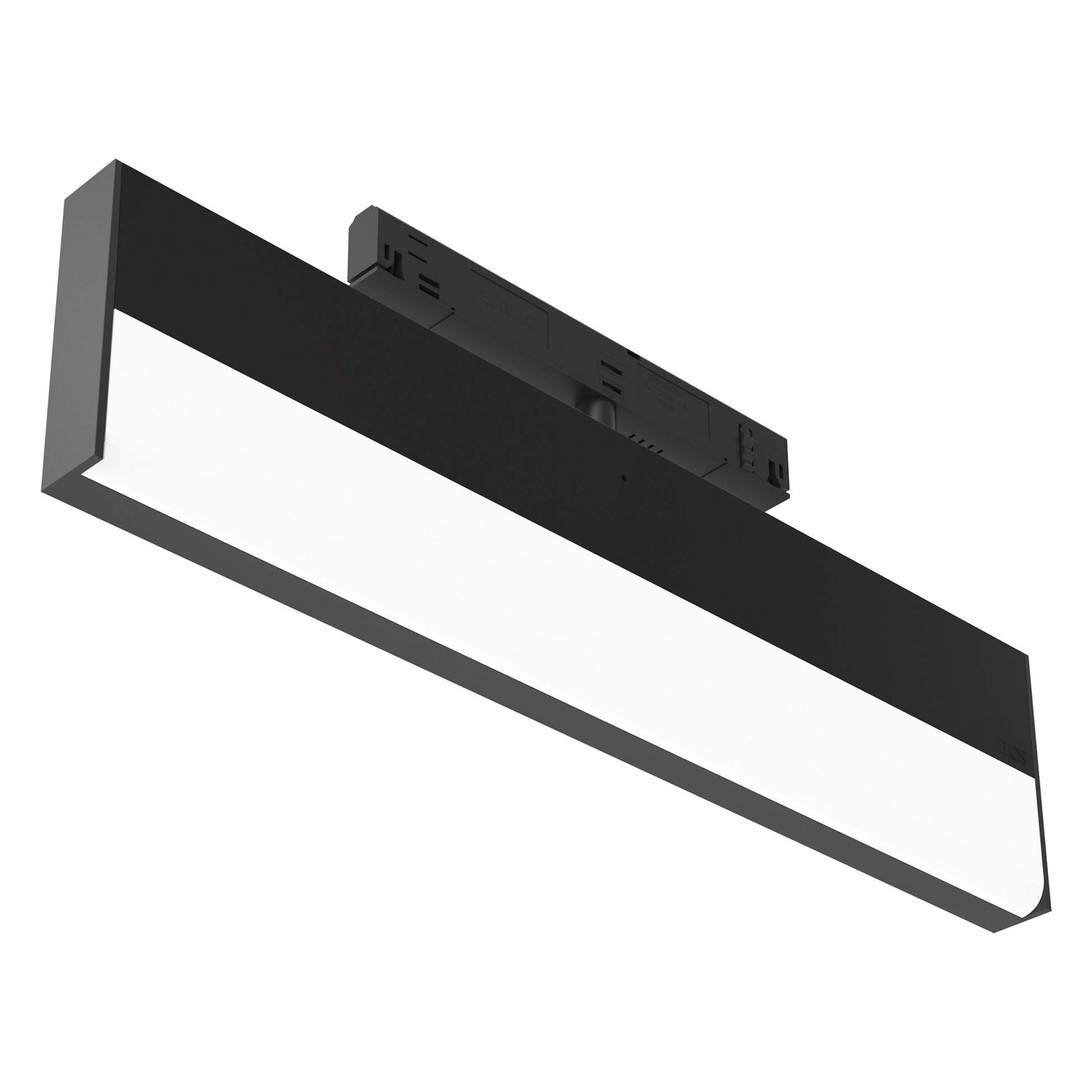

Thumbnail
09.7501.14A Black

UT Pro Wall-Washer

Wall-Washer lighting module to be installed in Tracking Power profile with LED light source. 220-240V power supply integrated.

LED - Top LED - 25.5W - 1700lm - 4000K - CRI> 90 - Beam° 36

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-System-The_Tracking_Power_Evo-UT_Pro_Wall_Washer
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Top LED
Lamp category
LED
Number of lamps
1
Power (W)
25.5
Source flux (lm)
3154
Lumen Output (lm)
1700
Schematic light drawing
EU_09_7501_XX_XXW25.5
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
4000
CRI>
90
Beam angle C0-180 (º)
36
Beam angle C90-270 (º)
75
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Emergency
No
Physical
Colour
Black
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
15
Length (mm)
420
Net weight (kg)
1.05
IP internal
20
IP external
20
UKCA
EAC
RETILAP
CE
