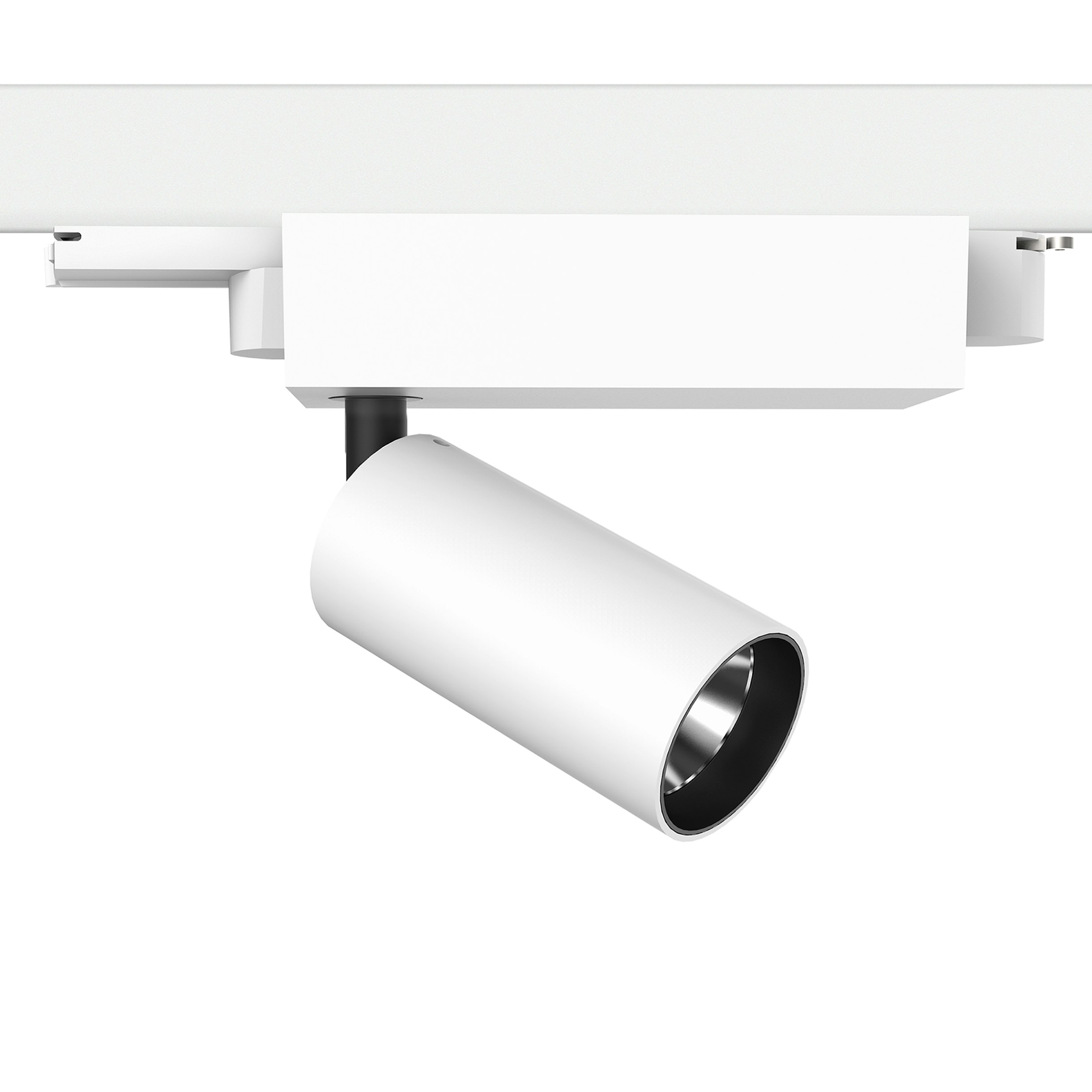

09.4440.30BDA WhiteUT Spot Track Ø 57 Dali Version
Designed by FLOS Architectural, 2017
Spotlight to be installed on 3-phase track. with LED light source. 220-240V, 50-60Hz power supply integrated.
LED - LED array - 23.2W - 1255lm - 3000K - CRI> 80 - Beam° 10
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
23.2
System power (W)
23.2
Source flux (lm)
2498.52
Lumen Output (lm)
1255
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
10
Beam angle C90-270 (º)
10
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
LED current (mA)
550
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
White
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Spot diameter (mm)
57
Net weight (kg)
0.57
IP internal
20
IP external
20
Notes
Screening crosspiece, lenses and Honeycomb directly installable on the head of the luminaire without needing any fastening accessory. FLOS three-phase lighting track luminaires are designed and fully tested for tracks recommended by FLOS. Compatibility is guaranteed with three-phase track produced by Nordic Aluminium. Compatibility with Eutrac under request. FLOS three-phase DALI track luminaires are designed for Pulse DALI from Nordic Aluminium.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
