09.7756.30CDA White

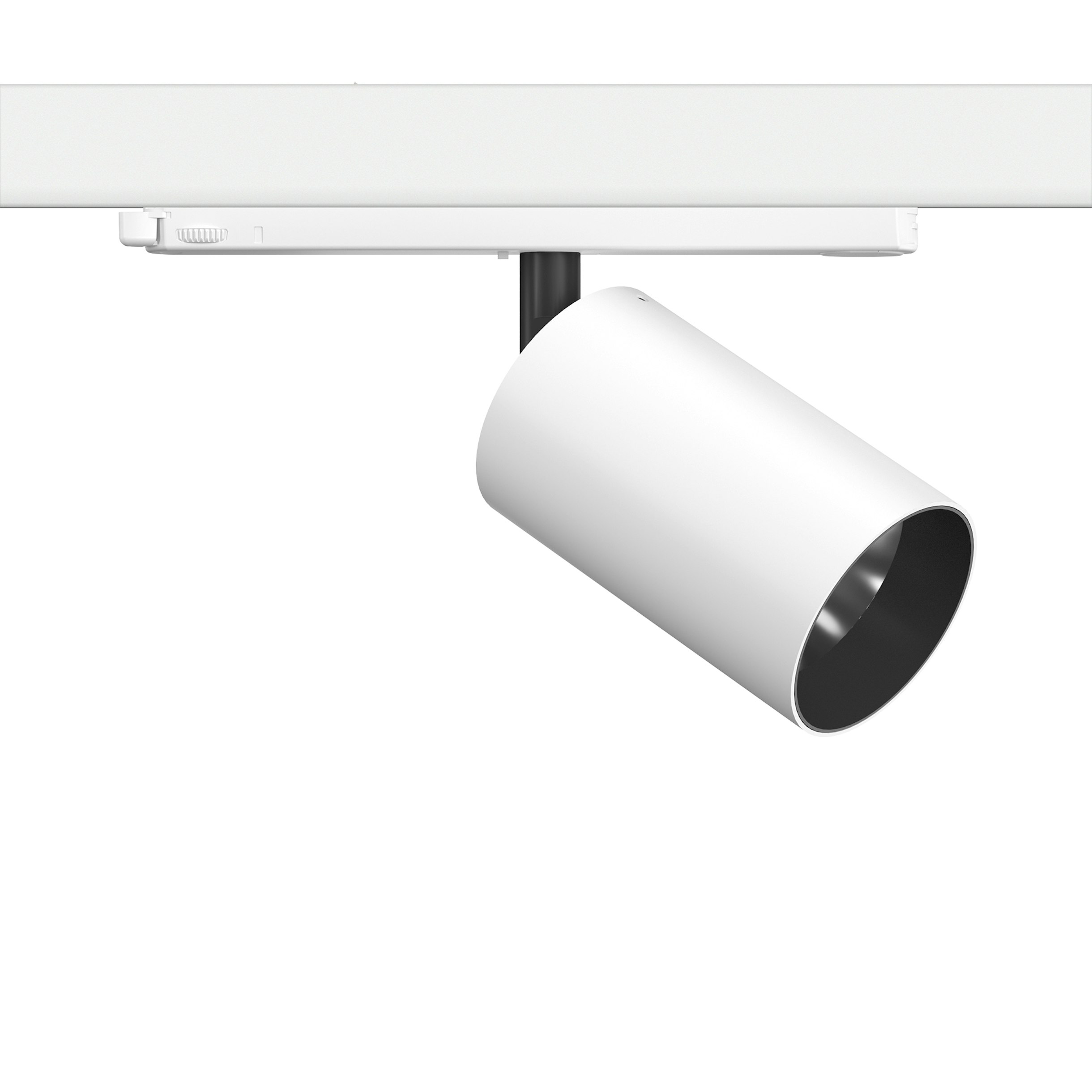

UT Spot Track Ø 86 GA Dali Version
Upgrade

Designed by FLOS Architectural, UT S

Spotlight to be installed on 3-phase track with LED light source. 220-240V, 50-60Hz power supply integrated. .30 versions come with the track adapter, the arm and the rear of the head in black.

LED - LED array - 27.8W - 2190lm - 3000K - CRI> 90 - Beam° 12

Find a Flos store

Technical Drawing

Main specifications

Mounting

Track

Environments

Indoor dry location

Light source type

LED

Light sources included

Yes

LED type

LED array

Lamp category

LED

Number of lamps

Power (W)

27.8

System power (W)

32.8

Source flux (lm)

3225

Lumen Output (lm)

2190

Schematic light drawing

Photometric

Lighting type

Direct

Light distribution

Symmetric

CCT (K)

3000

CRI>

Beam angle C0-180 (º)

Beam angle C90-270 (º)

Extreme cut off

UGRL

<10

Electrical

Insulation class

Frequency (Hz)

50/60

Main voltage (Vac)

220-240

Power supply

Integrated

Dimmable

Yes

Power supply type

Dimmable DALI 2

Dimming interface

Remote Dimmable (Dimmer Not Included)

Physical

Colour

White

Trim

Orientation

Adjustable

Rotation (º)

360

Longitudinal tilting (°)

Spot diameter (mm)

Net weight (kg)

0.75

IP internal

Notes

Screening crosspiece, lenses and Honeycomb directly installable on the head of the luminaire without needing any fastening accessory. Installation compatible with Honeycomb + Lense at the same time. FLOS three-phase lighting track luminaires are designed and fully tested for tracks recommended by FLOS. Compatibility is guaranteed with three-phase track produced by Nordic Aluminium. Compatibility with Eutrac under request. FLOS three-phase DALI track luminaires are designed for Pulse DALI from Nordic Aluminium.

Download

Tech spec pdf

Mounting instructions

Photometric Files

LDT / IES

Technical Drawings
