Walkstick

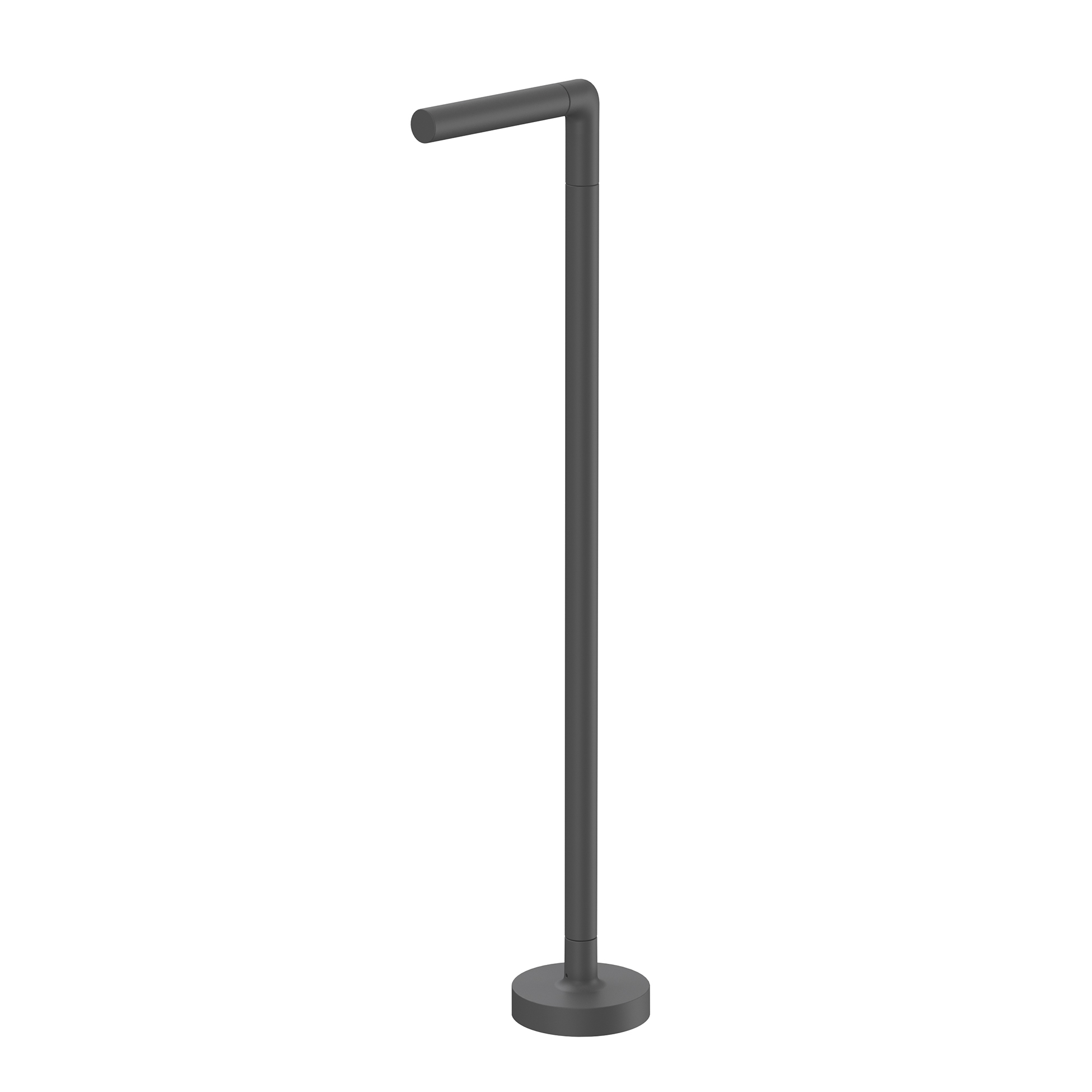

F010J31A033 AnthraciteWalkstick Pipe 2 H 930 mm Non Dimmable
Designed by Antonio Citterio, 2019
220-240V power supply included. Ready for installation on solid surface. Box for ground installation to be ordered separately. Included 2 way terminal block 4 poles IP68 H2O Stop. Version 110V upon request.
7W - 448lm - 3000K - CRI> 80 - Beam° 97
Technical Drawing
Main specifications
EAN
8054793208152
Mounting
Ground
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
7
System power (W)
7
Lumen Output (lm)
448
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
97
Beam angle C90-270 (º)
97
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Anthracite
Trim
No
Orientation
Adjustable
Net weight (kg)
3.15
Package height (mm)
1005
Package width (mm)
261
Package length (mm)
192
Package volume (m3)
0.05
IP internal
65
Drive Over
No
Notes
Ready for installation on solid surface. Box for ground installation to be ordered separately. Included 2 way terminal block 4 poles IP68 H2O Stop. Version 110V upon request.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
