Wireline
F9520034 Pink

Wireline

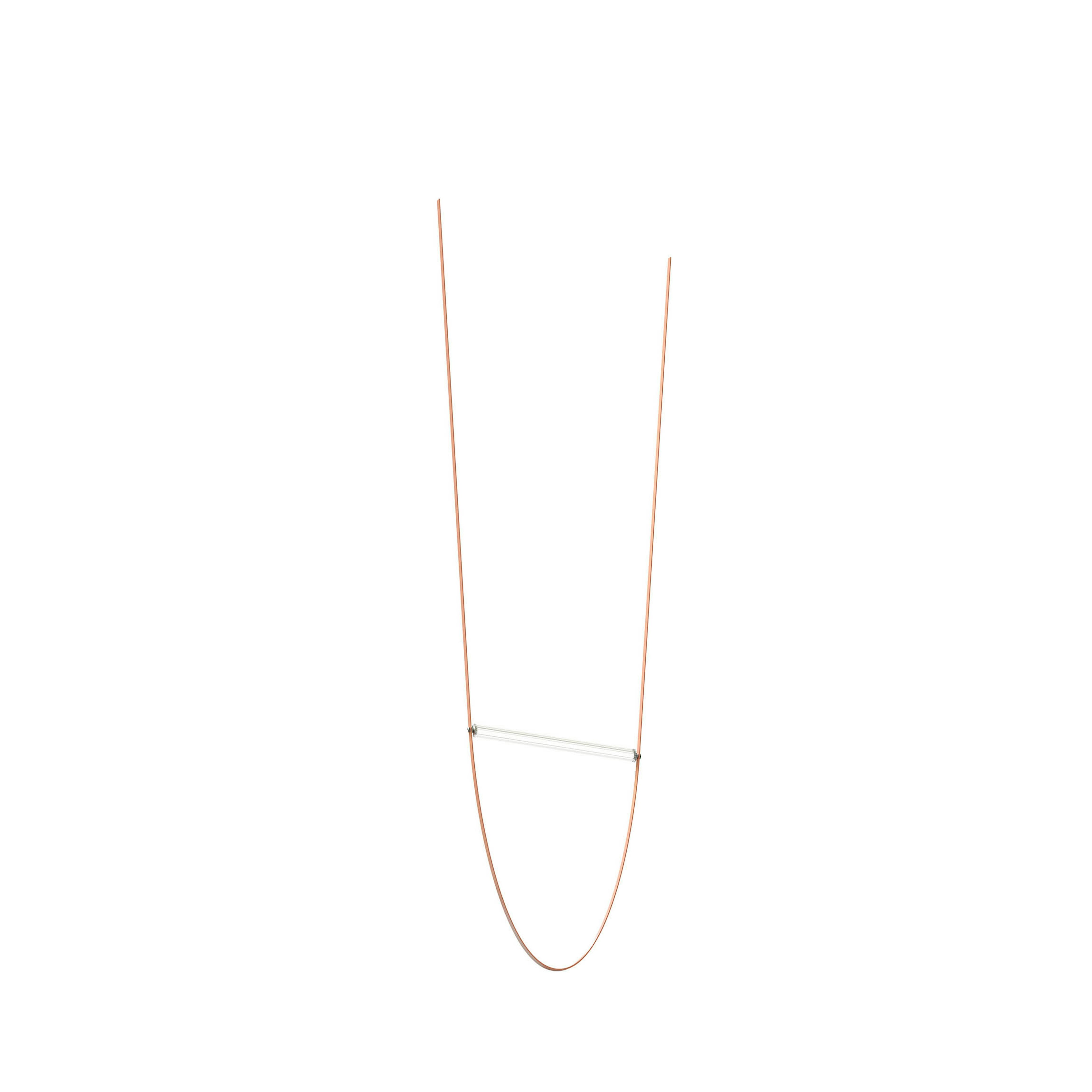

Suspension lamp emitting diffused light. Tubular diffuser in transparent extruded glass with internal opaline polycarbonate insert. CNC-machined stainless-steel ferrules. Flat extruded rubber power cable doubles as a suspension element. Injection-moulded polycarbonate ceiling rose with integrated electronics supporting PUSH, 1–10 V, potentiometer and DALI dimming systems. Can be installed in a series of modules.

Wireline reduces the lamp to its bare essentials, transforming the power cable into the defining feature of the design. By elevating a functional element into a striking visual presence, it balances industrial precision with poetic intent. The result embodies Formafantasma’s exploration of material experimentation and emotional experience and their fascination with light as one of design’s most transformative frontiers.

45W - 2793lm - 2700K - CRI> 90

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Wireline
Main specifications
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
45
System power (W)
45
Lumen Output (lm)
2793
Schematic light drawing
F95200WWIRELINE_45W-LED
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
120-277
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 0-10V, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Pink
Length (mm)
1300
Cord colour
Pink
Cord length (mm)
4050
Canopy colour
Pink
Canopy length/diameter (mm)
130
Canopy height (mm)
70
Net weight (kg)
7.8
Package volume (m3)
0.05
IP internal
20
UKCA
RG
CMIM
IECEC
EAC
ENEC
RETILAP
CE
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F9520034-wireline-flos-boom
00. Push button and cables assembly for dimmer
RF27318
01. Power supply unit for led
RF22934
02. Led dimmer kit
RF34197

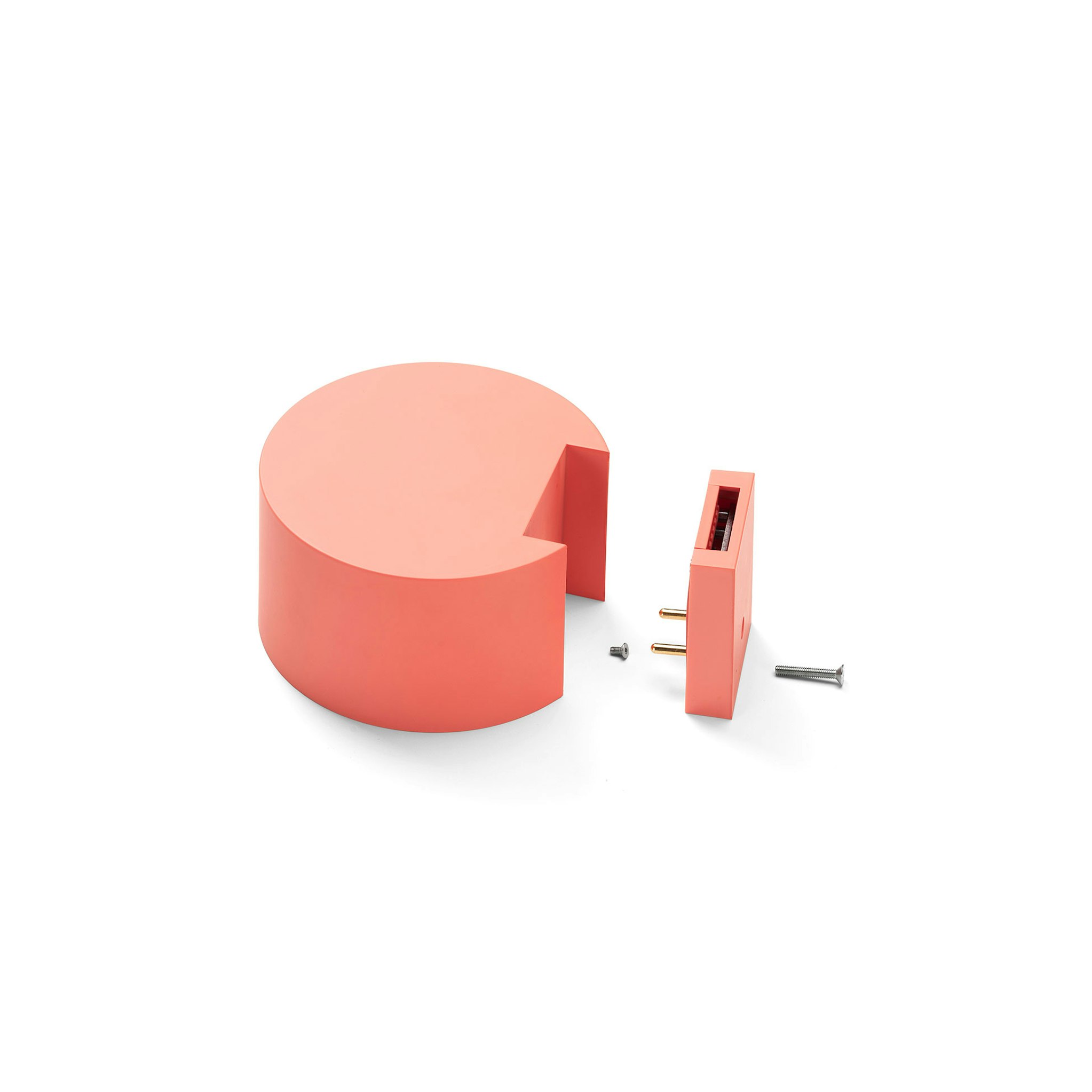

03. Wireline Assembly Rose Cover Pink
RF9523134

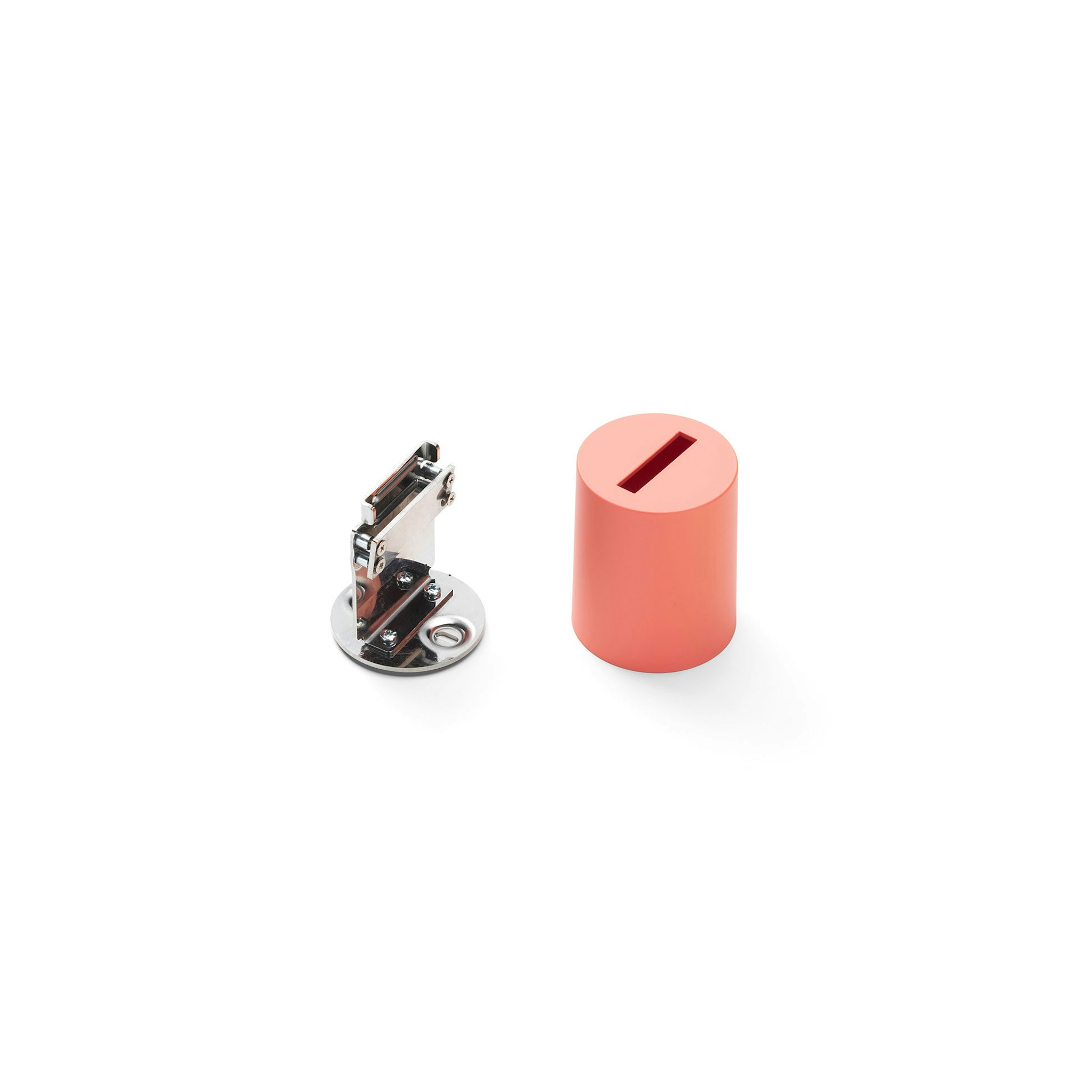

04. Wireline Assembly Suspension Rose for Wirelines Pink
RF30036

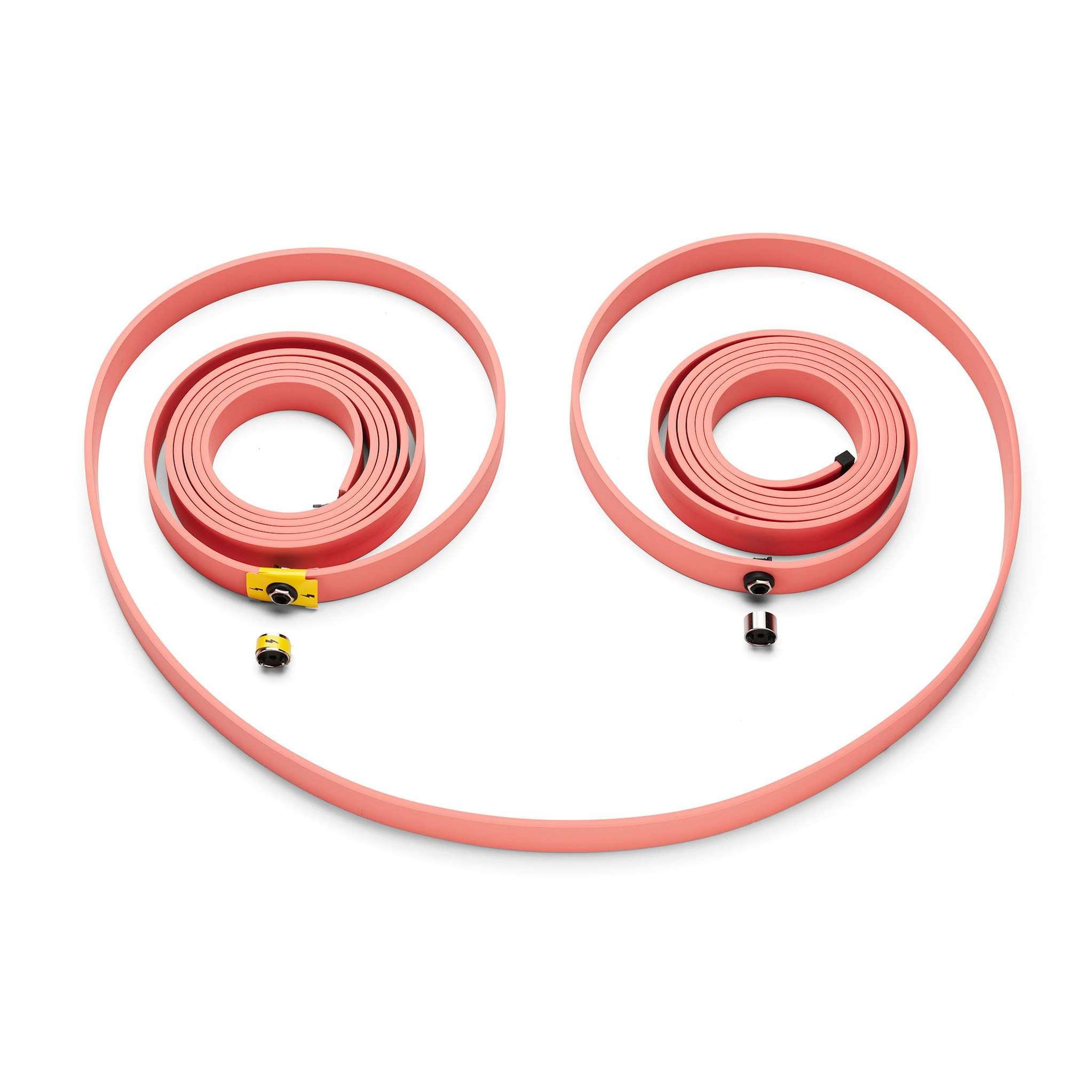

05. WireLine Pink Wire
F9522034
06. WireLine Body
F9521000
