Light Shadow, designed to avoid glare
45º cut off angle for total confort, 83% efficiency, perfect integration in the architecture, super compact dimensions.This is the Light Shadow.

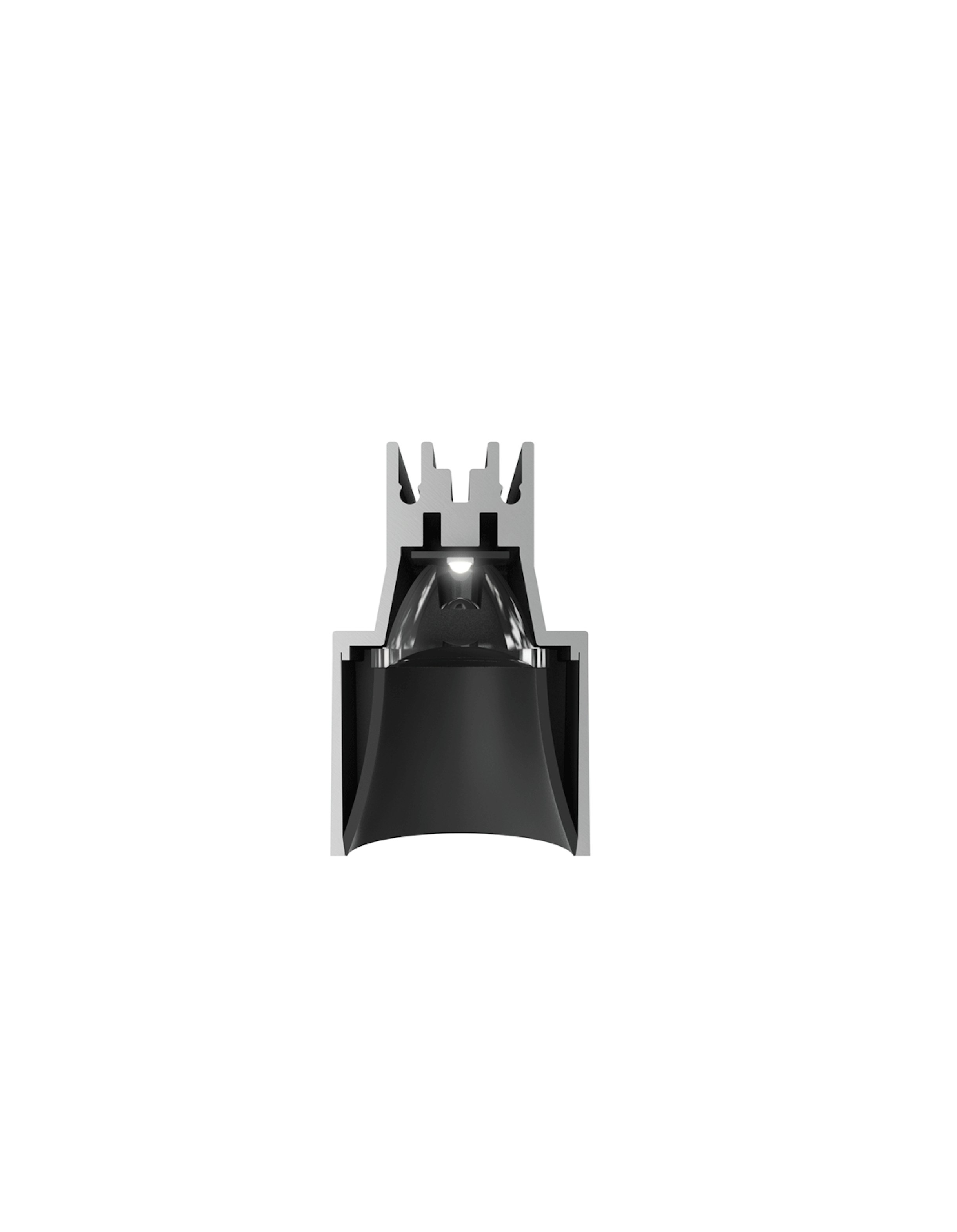

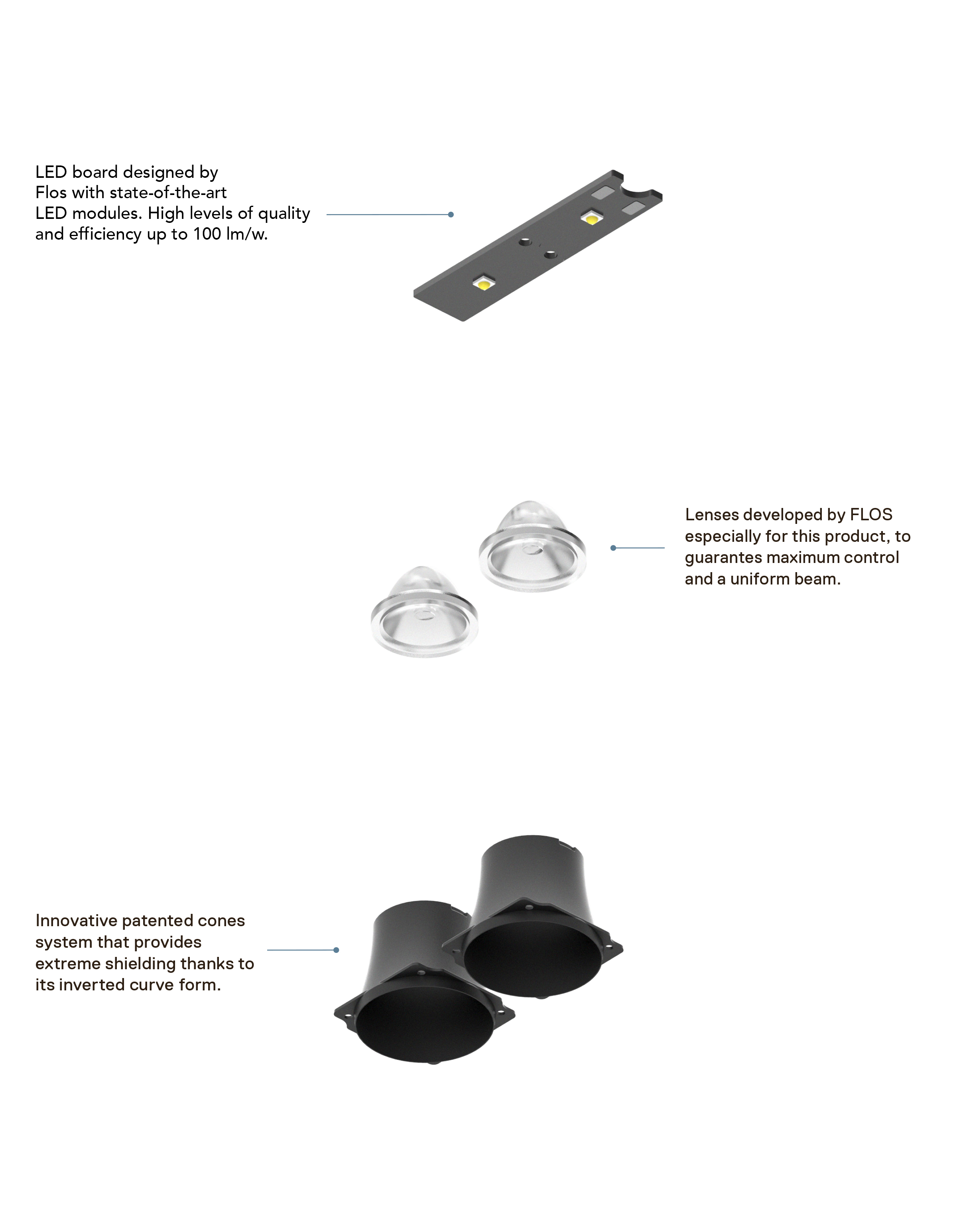

The revolution in low glare lighting. Thanks to its patented unique optical solution, Light Shadow reaches extreme cut off angles without sacrificing high efficiency and very small dimension.

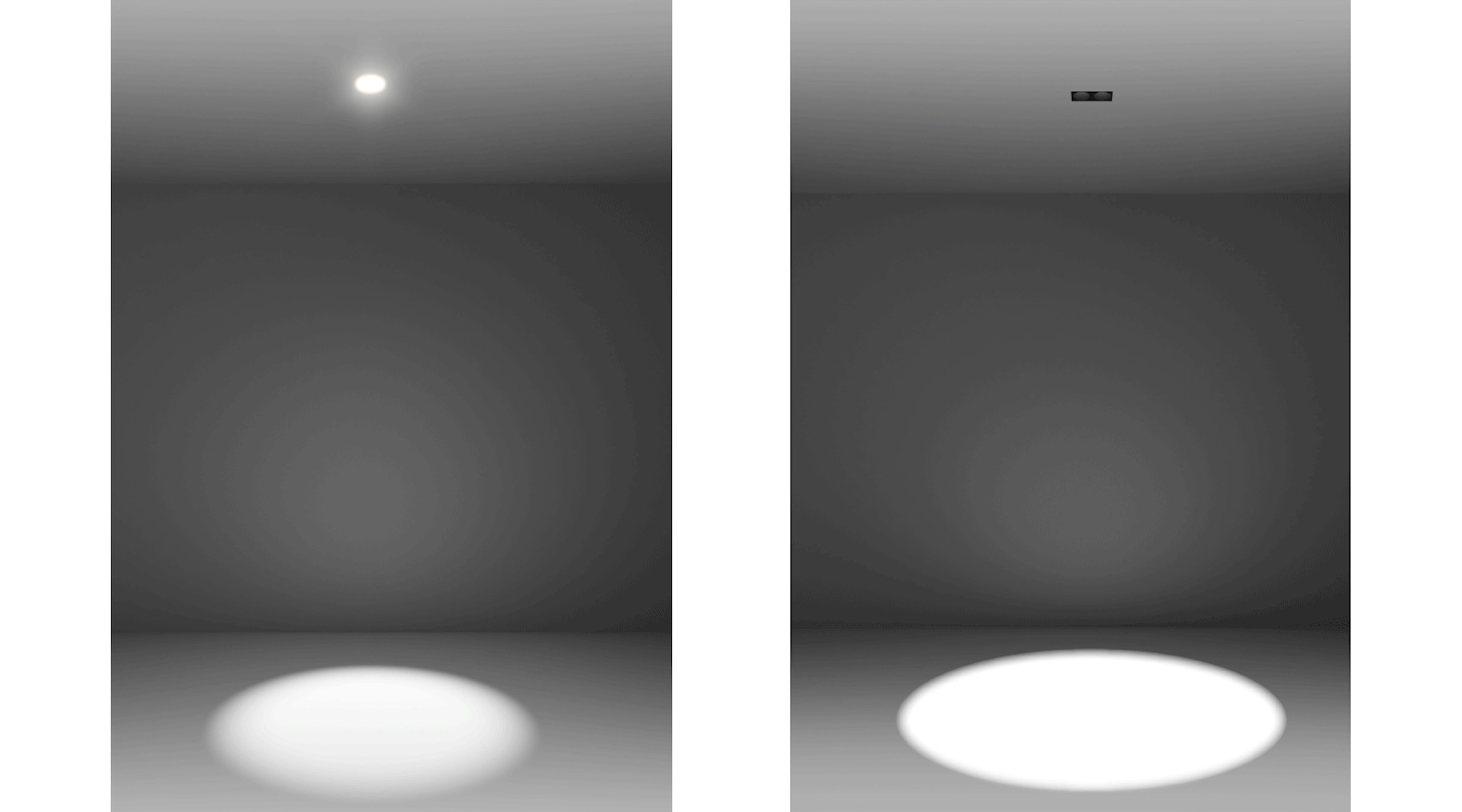

The traditional technology produces: a glare effect while the beam of light is not so precise. Integration with architecture is not achieved.

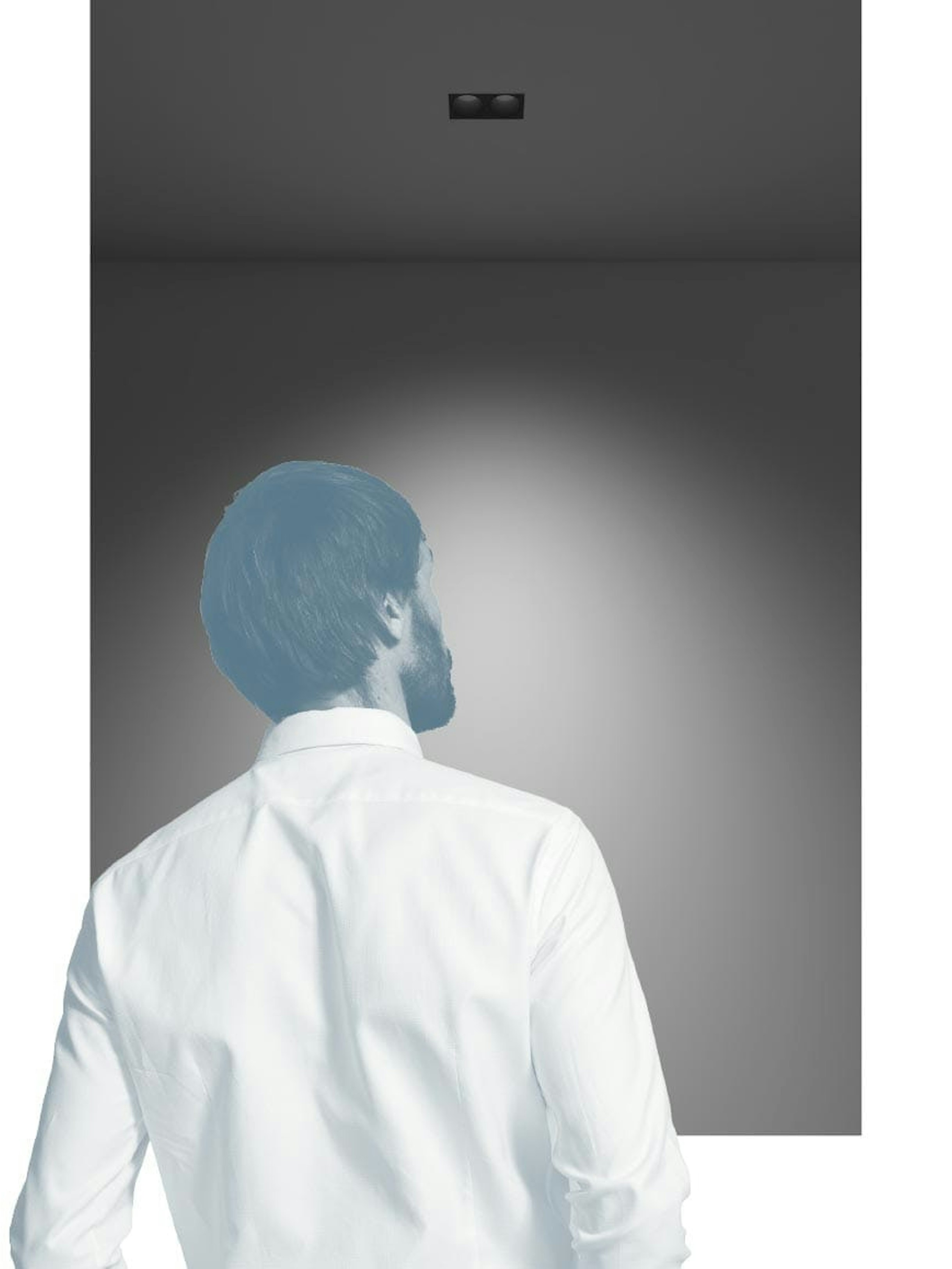

Light Shadow technology thanks to its cut-off of 45 degrees, maximum integration with architecture combines with the impeccable, defined beam of light and total shielding, which allows it to be placed almost in zenithally position with no glare.
Extra-compact size which allows embedded integration, even when there is minimum space available.
Light Shadow Finishes

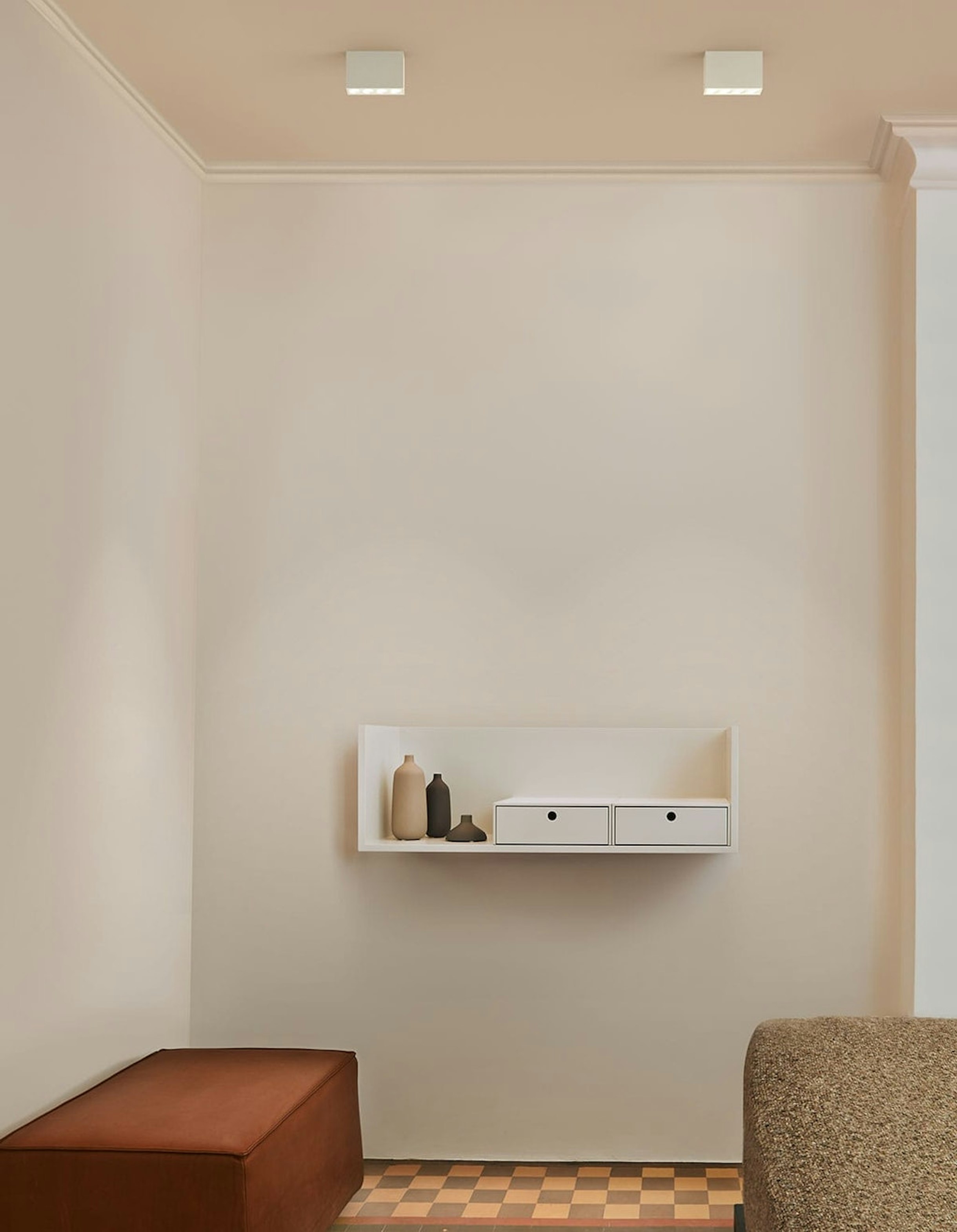

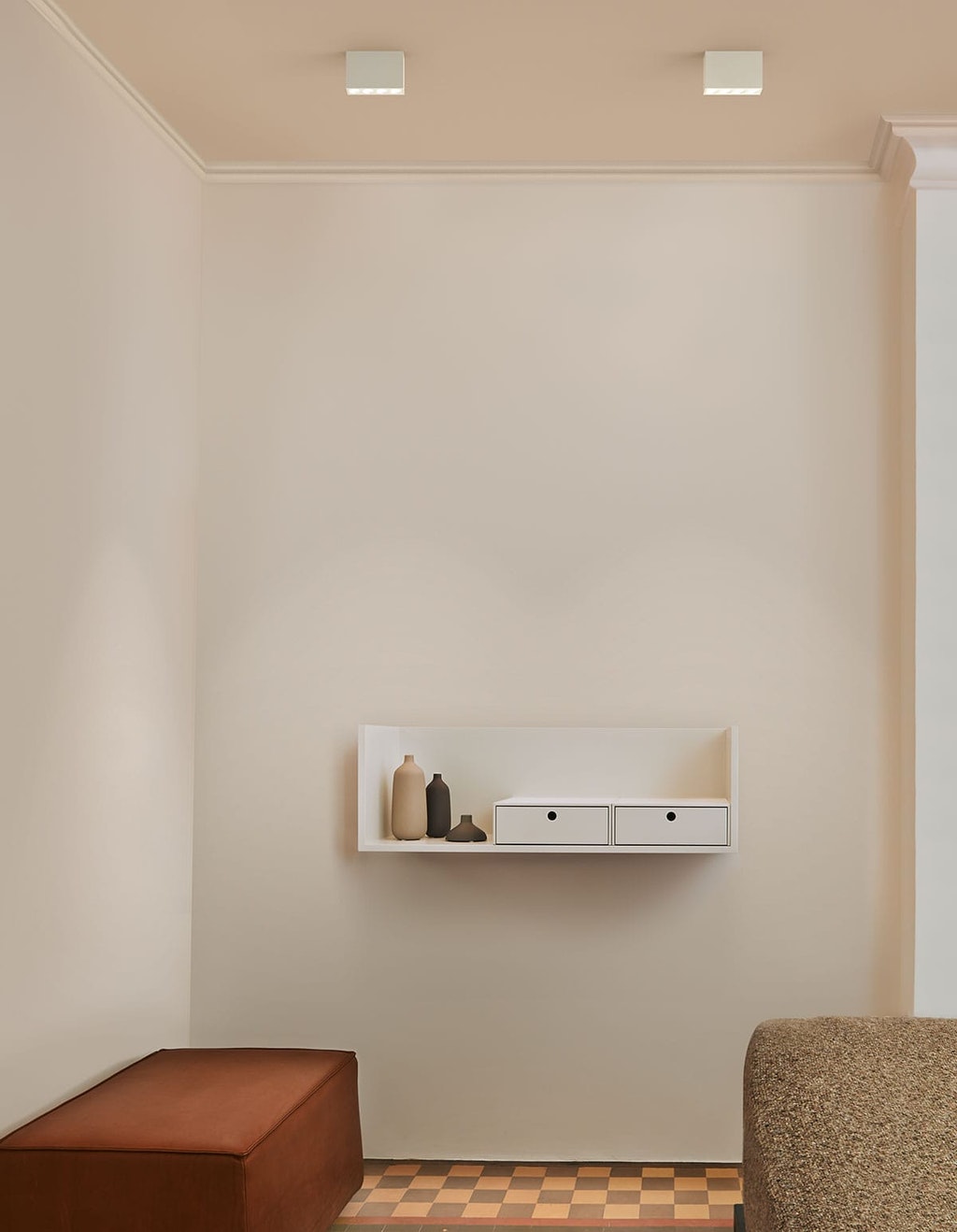

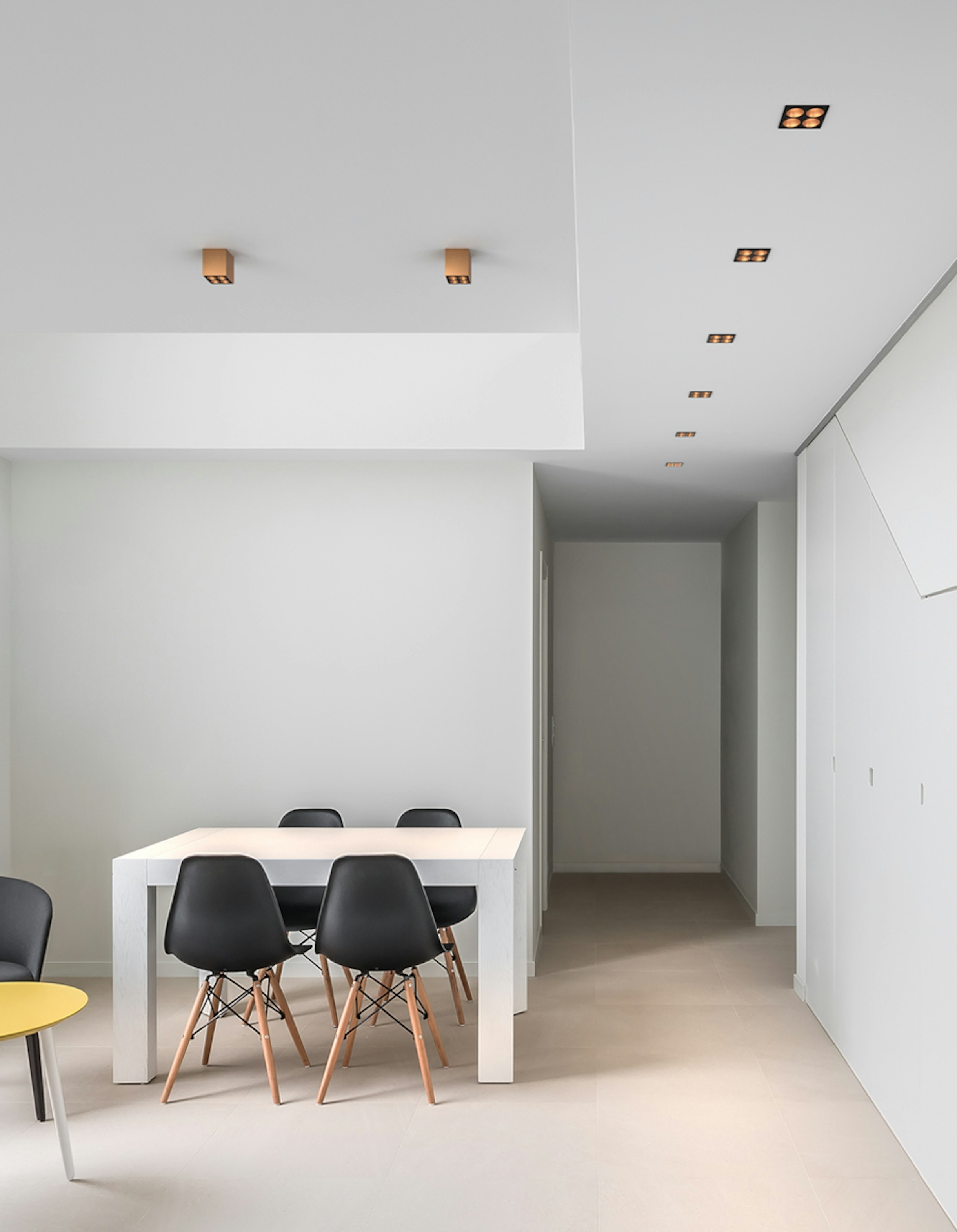

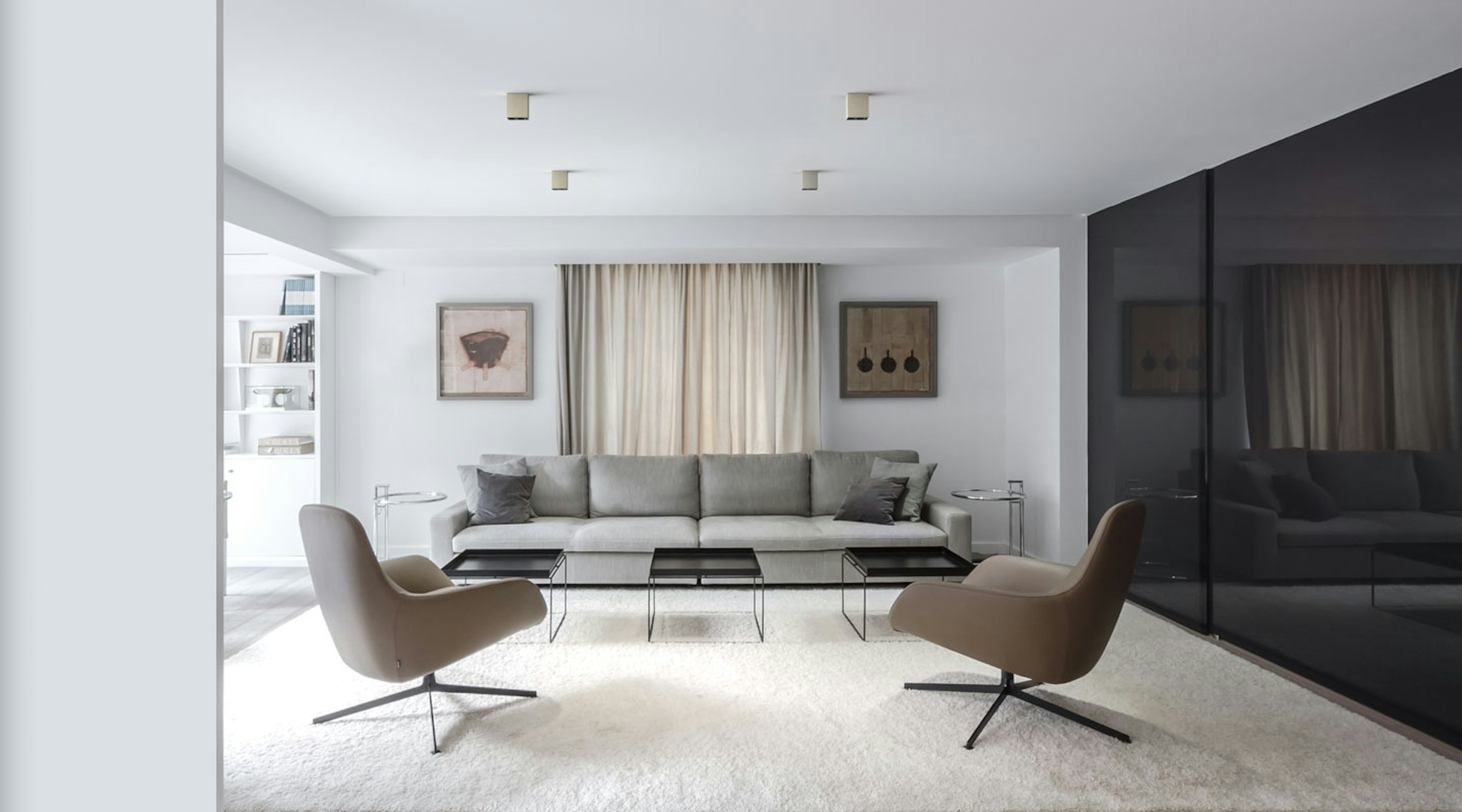

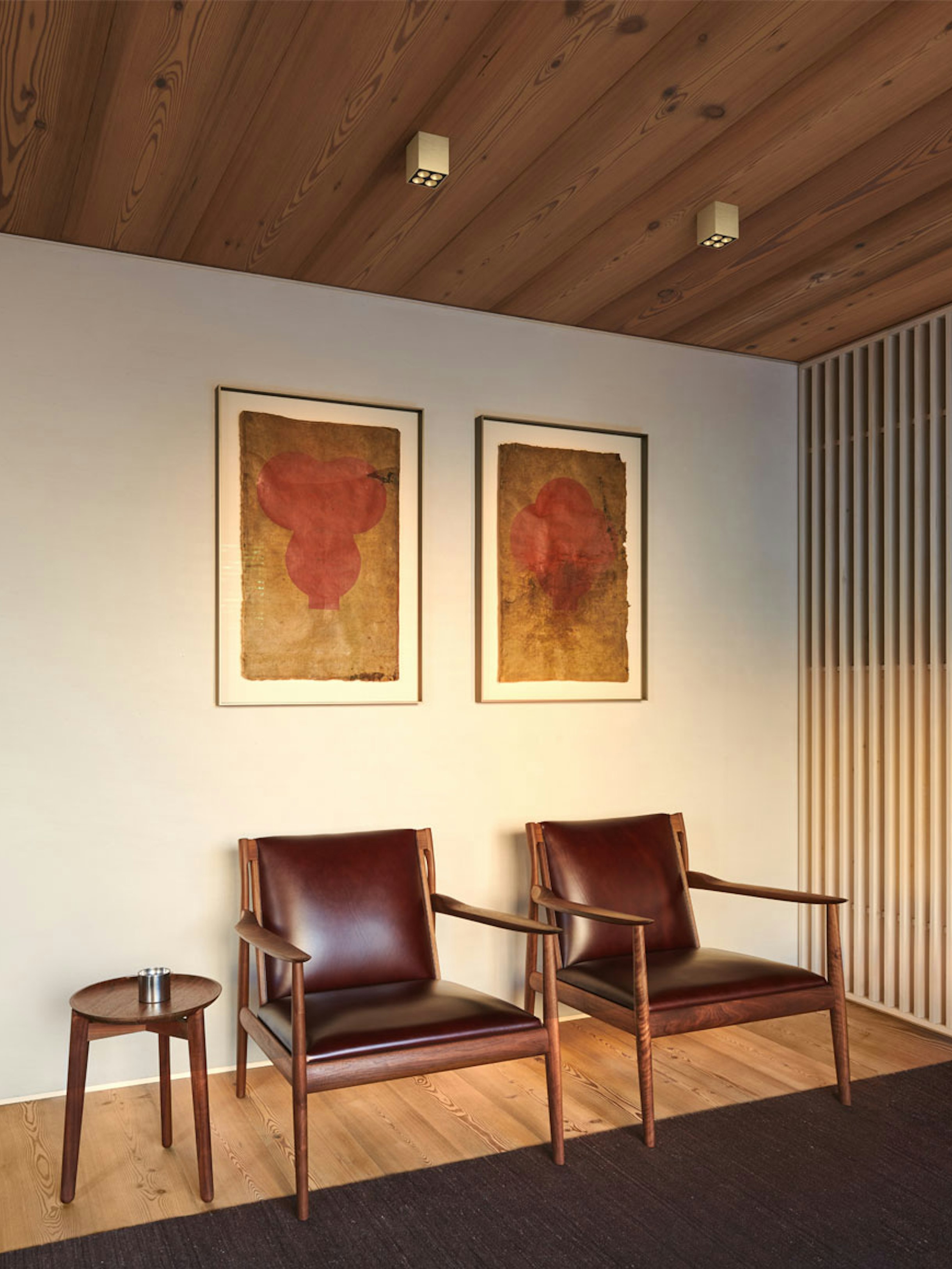

The family comes in some outstanding new metallic colours and wood-like finishings. Textured teak and metallic copper, bronze and steel adorn the exterior skin of the Light Shadow Surface. A selection of metallic coatings is also now available for the inner anti-glare screen, featuring a smooth glossy texture alongside the ultimate glare control technology.

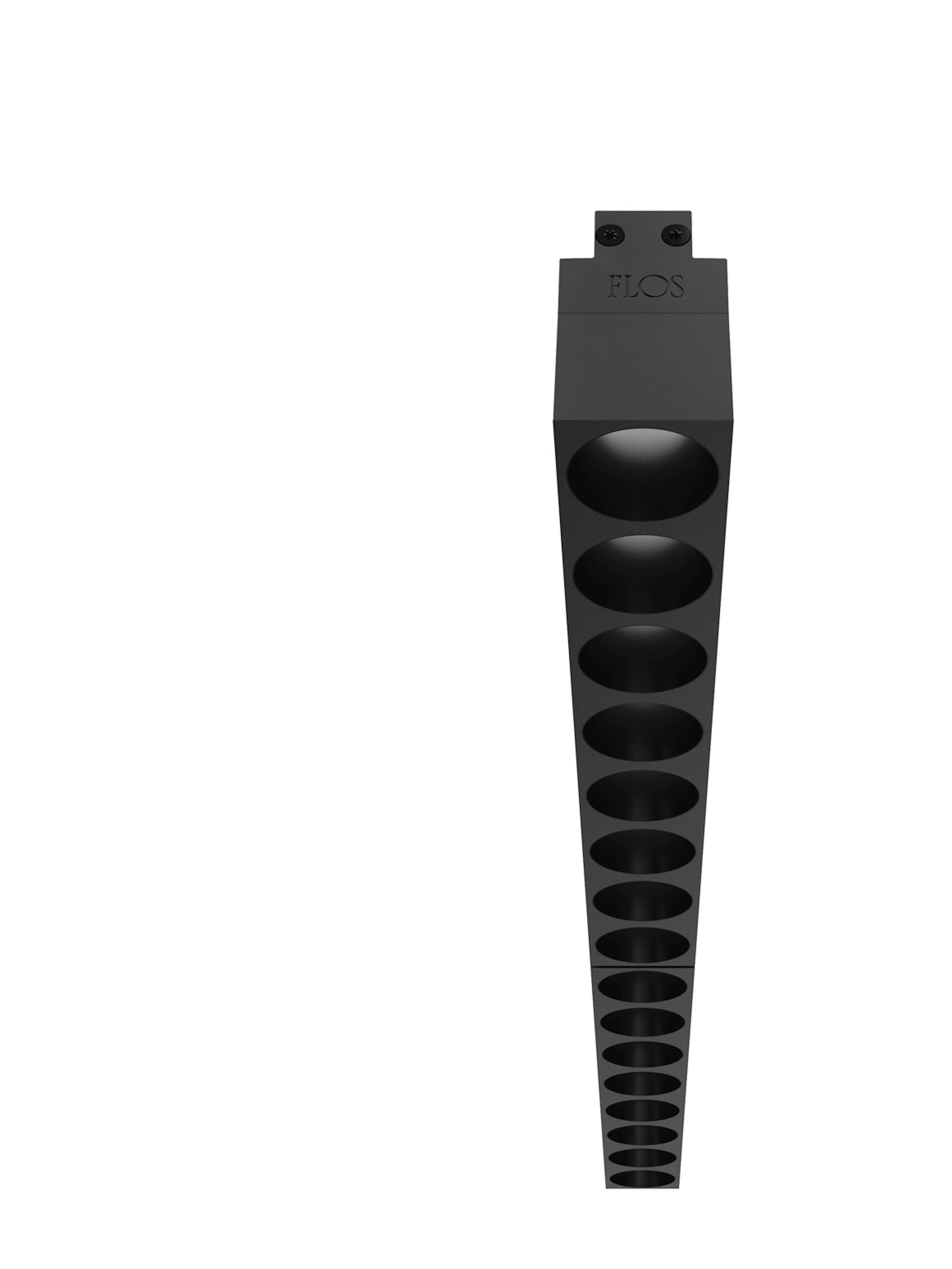

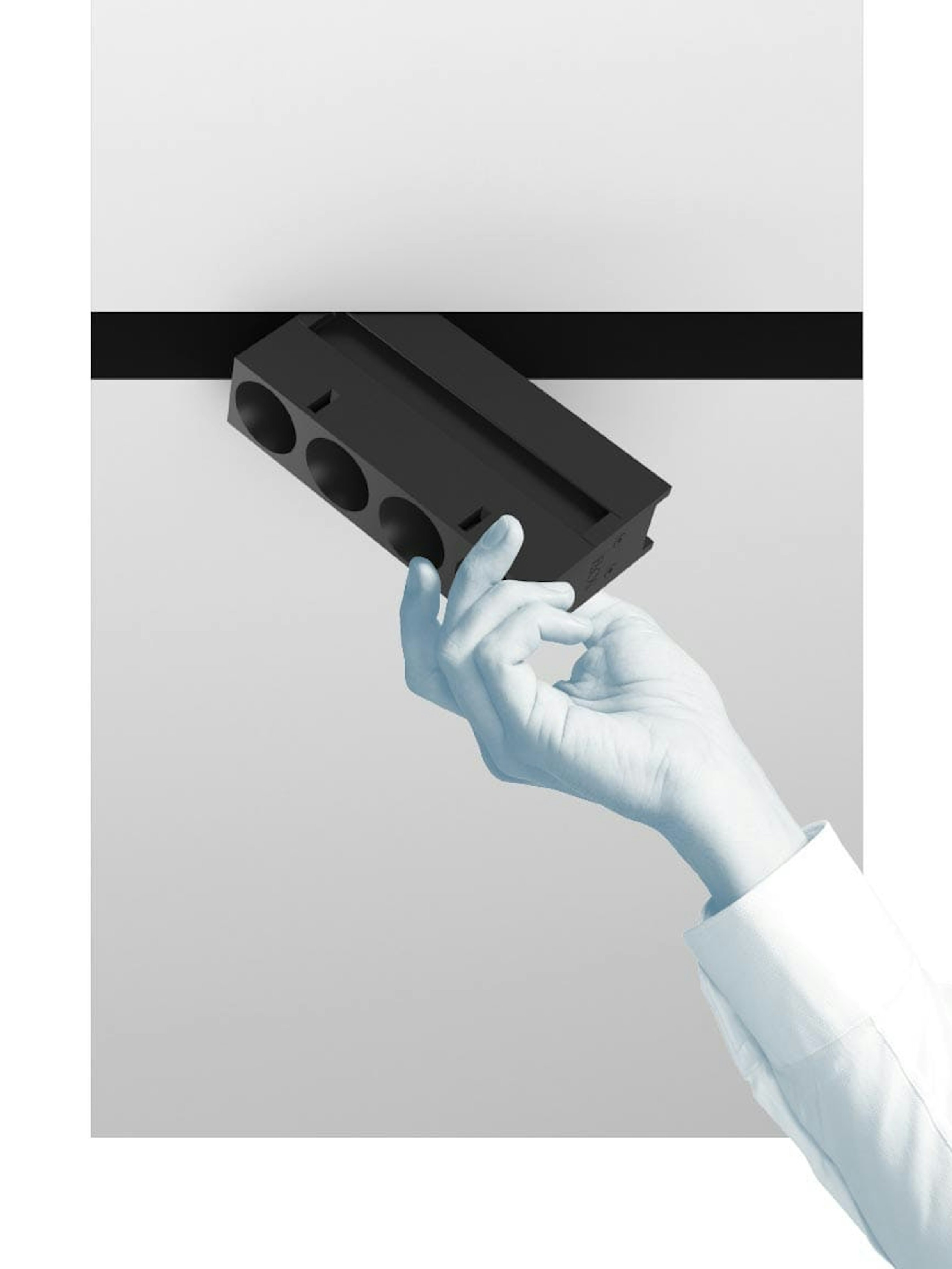

Light Shadow is also available for magnetic installation in Flos exclusive The Running Magnet track: flexibility and adaptability at any time. See Flos catalogues for complete details about The Running Magnet collection.

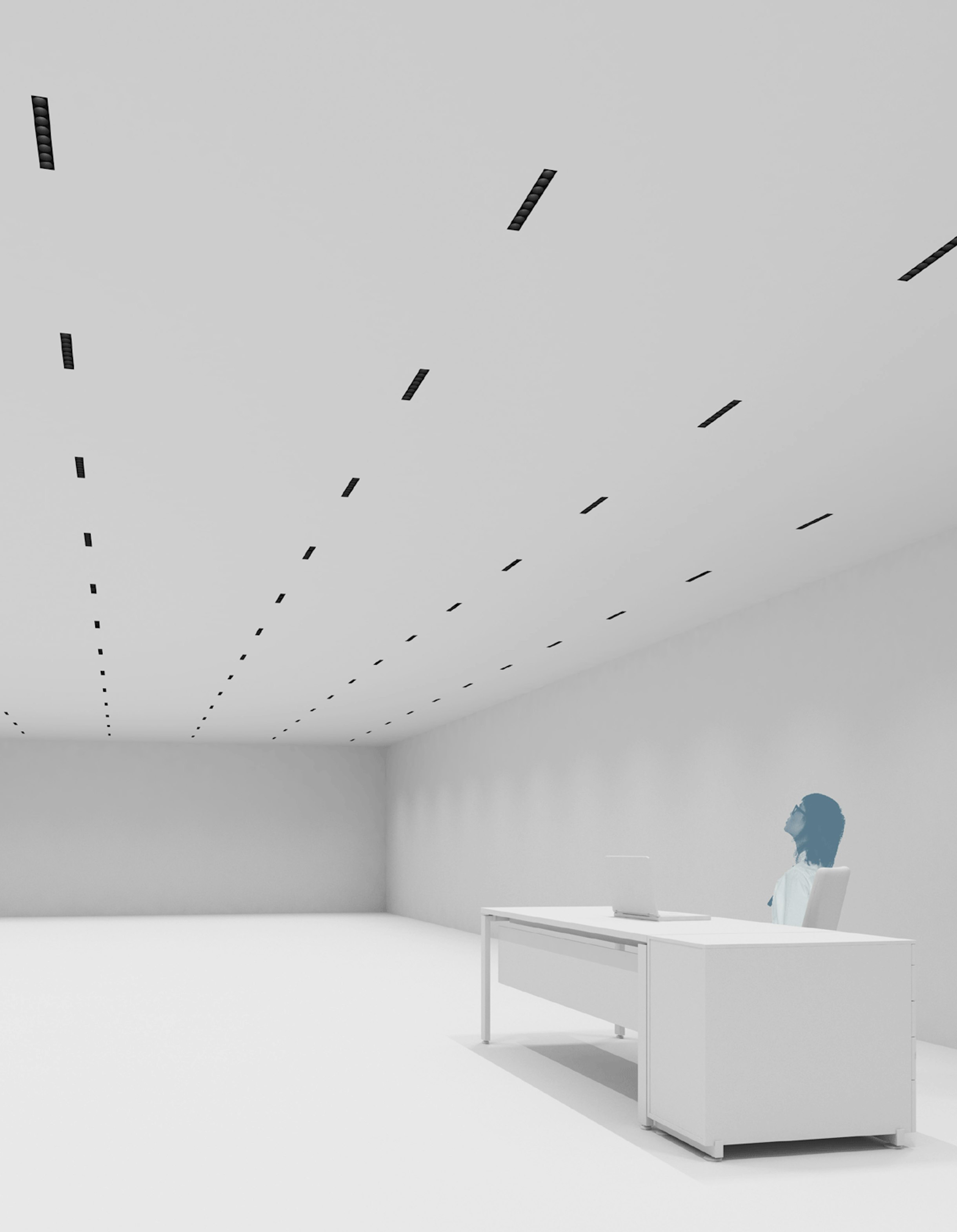

The excellence of comfort: UGR below 10 for outstanding glare protection, homogeneity in light distribution and delivered lux compliant to the most strict standards of the industry.

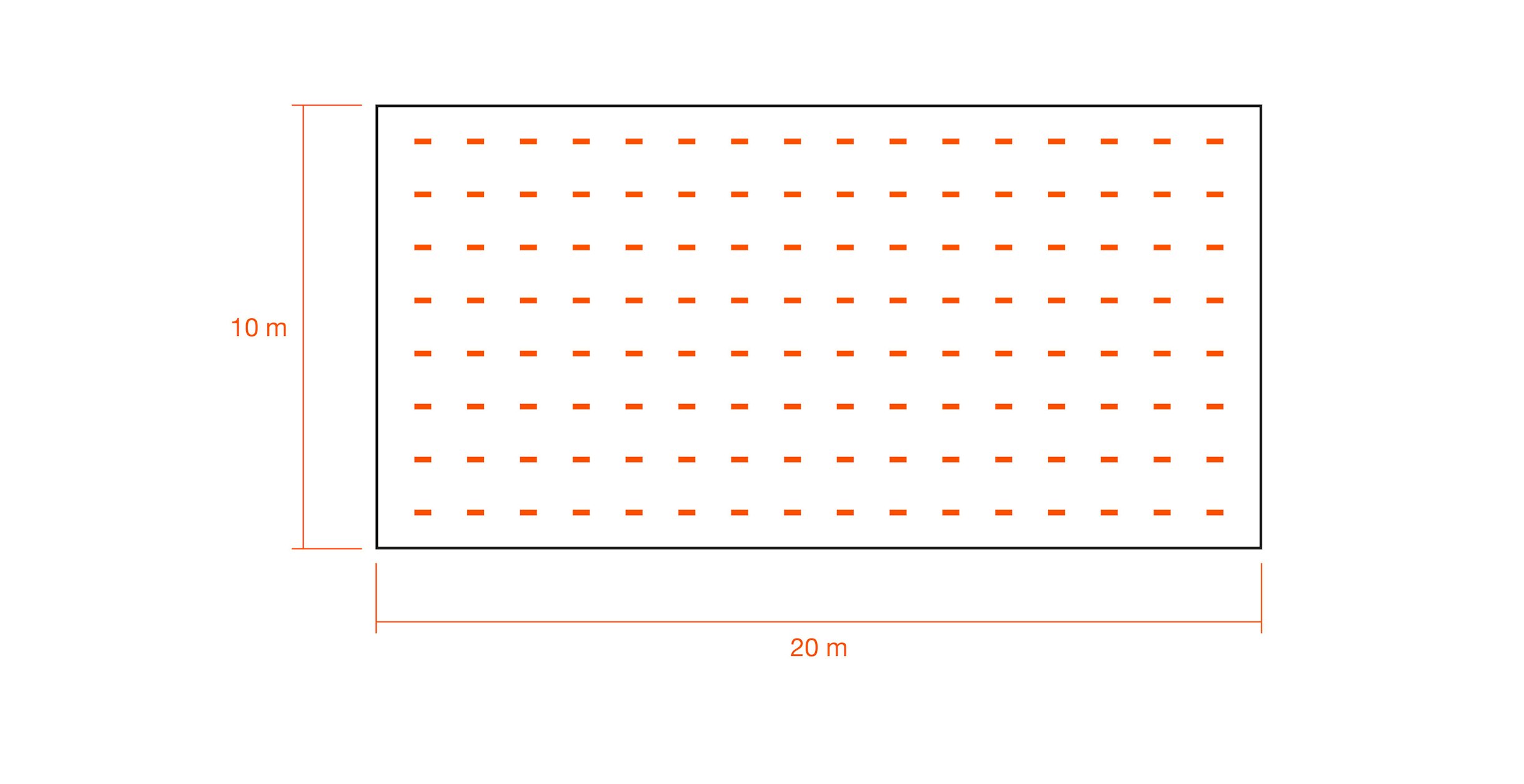

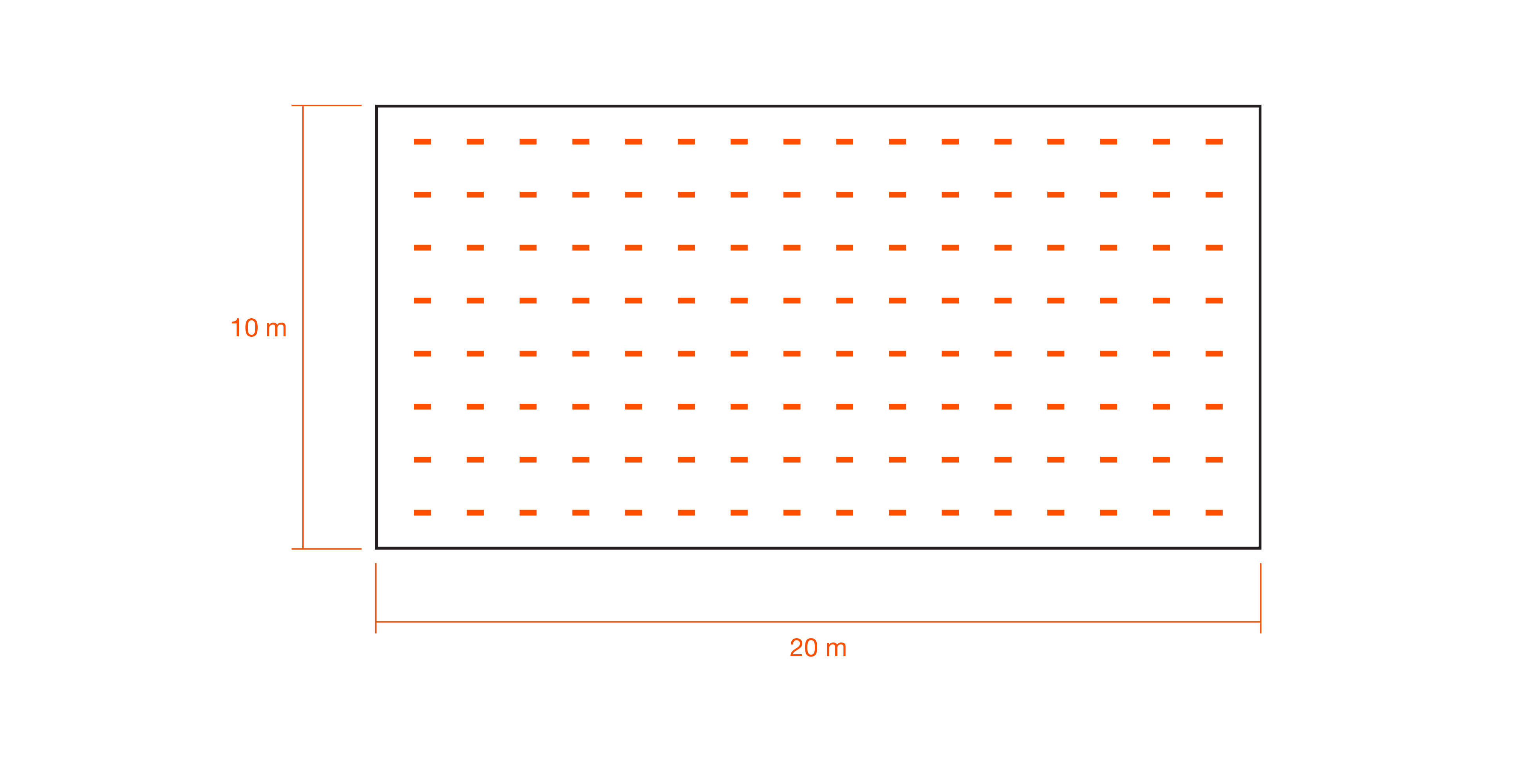

PROJECT TYPE: Ambient 20m x 10m, h 2.7m.
Version used: Light shadow 4L Flood Optic Dali dimmable.
Spacing between luminaries: 1.2 m
Technical brightness parameters: UGR < 10 from any point of observation (UGR < 19 standard minimum value).
Average brightness: 551 lx (500 lx standard minimum value).
Uniformity obtained: 0.655 (0.600 standard minimum value).
Reference standard: UNI-EN 12464-1:2011

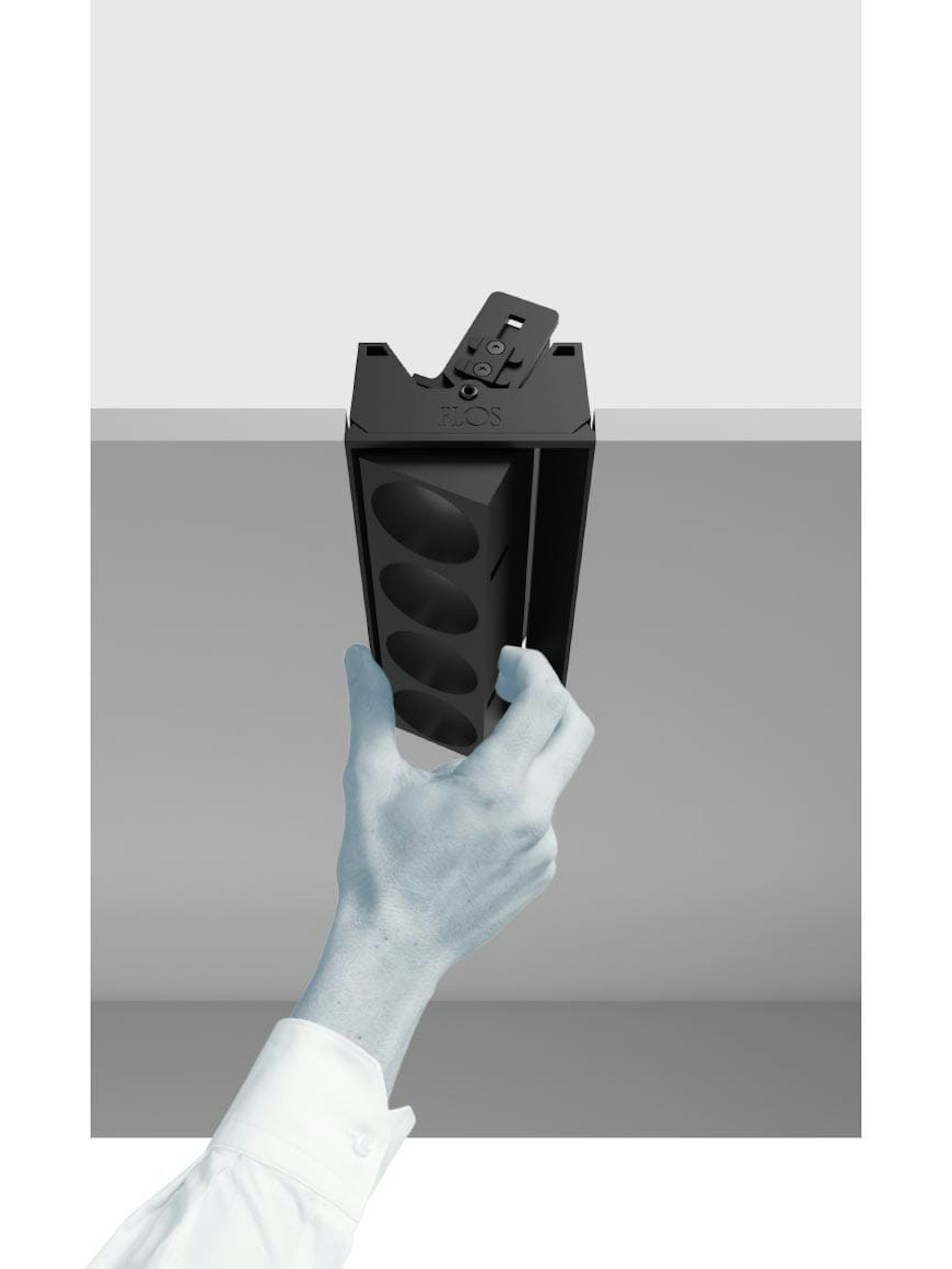

The adjustable version allows the main body to be extracted to guarantee perfect integration with the architecture, and to make the most of the whole beam.
