Atom 120

Designed by Piero Lissoni

Módulo de iluminación LED de acento.

Download Documentation

Product highlight

Los ojos engañan

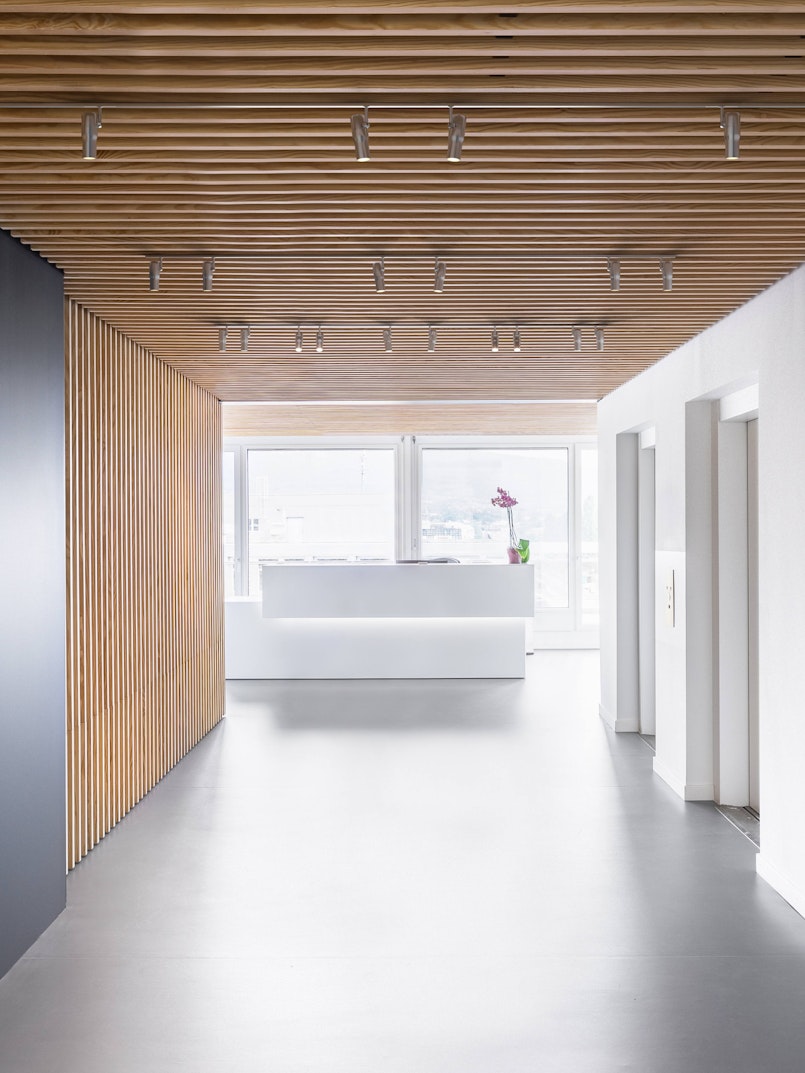

Un novedoso sistema de 24 V compuesto por un carril en miniatura que se adapta sutilmente a la superficie y ofrece una gran variedad de luminarias regulables.


Luminarias

(40)

Tipo de óptica

Fuente de alimentación (W)

Flujo neto (lm)

CCT (K)

Certifications

Color

Code	Name	Fuente de alimentación (W)	Flujo neto (lm)	CCT (K)	IRC>	Beam angle (º)	Dimming Type	Montaje
09.3943.CZA	Atom 120 Casambi integrated	8	364	2700	90	20	CASAMBI regulable	Carril
09.3943.40A	Atom 120 Casambi integrated	8	364	2700	90	20	CASAMBI regulable	Carril
09.3943.18A	Atom 120 Casambi integrated	8	364	2700	90	20	CASAMBI regulable	Carril
09.3943.14A	Atom 120 Casambi integrated	8	364	2700	90	20	CASAMBI regulable	Carril
09.3943.05A	Atom 120 Casambi integrated	6	298	2700	90	20	CASAMBI regulable	Carril
09.3942.CZA	Atom 120 Casambi integrated	8	373	3000	90	20	CASAMBI regulable	Carril
09.3942.40A	Atom 120 Casambi integrated	8	373	3000	90	20	CASAMBI regulable	Carril
09.3942.18A	Atom 120 Casambi integrated	8	373	3000	90	20	CASAMBI regulable	Carril
09.3942.14A	Atom 120 Casambi integrated	8	373	3000	90	20	CASAMBI regulable	Carril
09.3942.05A	Atom 120 Casambi integrated	6	311	3000	90	20	CASAMBI regulable	Carril
09.3941.CZA	Atom 120 Casambi integrated	8	433	2700	90	14	CASAMBI regulable	Carril
09.3941.40A	Atom 120 Casambi integrated	8	433	2700	90	14	CASAMBI regulable	Carril
09.3941.18A	Atom 120 Casambi integrated	8	433	2700	90	14	CASAMBI regulable	Carril
09.3941.14A	Atom 120 Casambi integrated	8	433	2700	90	14	CASAMBI regulable	Carril
09.3941.05A	Atom 120 Casambi integrated	6	349	2700	90	14	CASAMBI regulable	Carril
09.3940.CZA	Atom 120 Casambi integrated	8	440	3000	90	14	CASAMBI regulable	Carril
09.3940.40A	Atom 120 Casambi integrated	8	440	3000	90	14	CASAMBI regulable	Carril
09.3940.18A	Atom 120 Casambi integrated	8	440	3000	90	14	CASAMBI regulable	Carril
09.3940.14A	Atom 120 Casambi integrated	8	440	3000	90	14	CASAMBI regulable	Carril
09.3940.05A	Atom 120 Casambi integrated	6	355	3000	90	14	CASAMBI regulable	Carril
09.3843.CZA	Atom 120	8	364	2700	90	20	No dimable	Carril
09.3843.40A	Atom 120	8	364	2700	90	20	No dimable	Carril
09.3843.18A	Atom 120	8	364	2700	90	20	No dimable	Carril
09.3843.14A	Atom 120	8	364	2700	90	20	No dimable	Carril
09.3843.05A	Atom 120	6	298	2700	90	20	No dimable	Carril
09.3842.CZA	Atom 120	8	373	3000	90	20	No dimable	Carril
09.3842.40A	Atom 120	8	373	3000	90	20	No dimable	Carril
09.3842.18A	Atom 120	8	373	3000	90	20	No dimable	Carril
09.3842.14A	Atom 120	8	373	3000	90	20	No dimable	Carril
09.3842.05A	Atom 120	6	311	3000	90	20	No dimable	Carril
09.3841.CZA	Atom 120	8	433	2700	90	14	No dimable	Carril
09.3841.40A	Atom 120	8	433	2700	90	14	No dimable	Carril
09.3841.18A	Atom 120	8	433	2700	90	14	No dimable	Carril
09.3841.14A	Atom 120	8	433	2700	90	14	No dimable	Carril
09.3841.05A	Atom 120	6	349	2700	90	14	No dimable	Carril
09.3840.CZA	Atom 120	8	440	3000	90	14	No dimable	Carril
09.3840.40A	Atom 120	8	440	3000	90	14	No dimable	Carril
09.3840.18A	Atom 120	8	440	3000	90	14	No dimable	Carril
09.3840.14A	Atom 120	8	440	3000	90	14	No dimable	Carril
09.3840.05A	Atom 120	6	355	3000	90	14	No dimable	Carril
