Bellhop
F1081064 Bright Aluminium

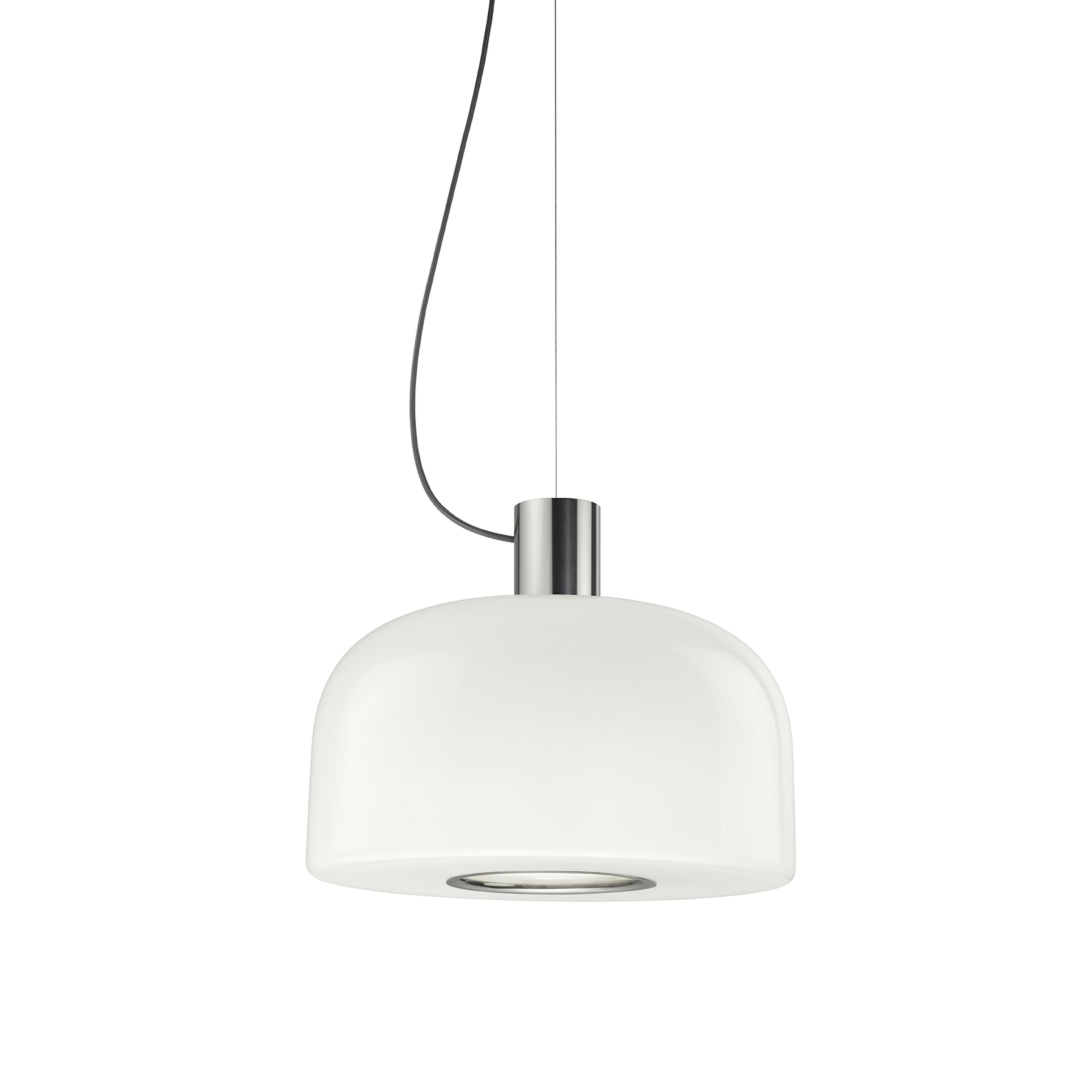

Bellhop Glass S2

Bellhop Glass Suspension can be used it as an ambient but also as a task light, which directly illuminates, with a non-blinding cone of light, the surface on which it is suspended. The hole in the bottom part of the lamp, protected by an aluminum element, is shaped to direct the light (and change the bulb) avoiding the diffusion up to the eyes of those sitting at the table. A cone of light is therefore created inside the suspended Bellhop Glass, which expands homogeneously in the environment on all sides and lands on the table precisely, like a torch, visually signaled by the colored aluminum ring that surrounds the lower opening of the lamp.

LED Retrofit - 30W

Disponibile anche in:
Disegno tecnico
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Bellhop-S2
Caratteristiche principali
EAN
8059607067758
Montaggio
Sospensione
Ambiente
Interni - ambiente asciutto
Tipo di sorgente luminosa
Bulb
Sorgenti luminose incluse
No
Categoria delle lampadine
LED Retrofit
Attacco lampadine
E27
Ilcos
HSGSA
Numero di teste
1
Potenza della sorgente (W)
30
Alimentazione del sistema (W)
30
Schematic light drawing
F10810XXWBELLHOP-GLASS-S2_25W-LED
Caratteristiche fotometriche
Tipo di illuminazione
Totale
Distribuzione dell’illuminazione
Simmetrica
Cut-off estremo
No
Caratteristiche elettriche
Classe di isolamento
I
Frequenza (Hz)
50/60
Tensione di rete (Vac)
220-240
Regolabile
Yes
Interfaccia di regolazione
Regolabile da remoto (dimmer non incluso)
Batterie incluse
No
Caratteristiche fisiche
Colore
Bright Aluminium
Orientabilitá
fissa
Lunghezza (mm)
450
Colore cavo
Grey
Lunghezza cavo (mm)
2700
Colore rosone
White
Dimensione rosone (mm)
132
Canopy height (mm)
31
Peso netto (kg)
7.2
Volume dell'imballo (m3)
0.14
IP
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
UKCA
03 - Italy
Autoprotected Lamp
20

Download

PDF con le specifiche tecniche
Mounting instructions

Archivio fotometrico

LDT / IES

Disegni tecnici

2D
3D

Design sostenibile e classificazione energetica

REPLACEABLE4 Sorgente luminosa (solo LED) sostituibile da utilizzatore finale

Spare Parts

F1081064-bellhoglass-S2-flos-boom
01. Bellhop Glass S shiny white ceiling rose assembly
RF1081109
02. Steel cable 3 meters
RF36887
04. Bellhop Glass S2 white diffuser shiny ring
F1083064
