Light Shadow Pro Ø45 IC Rated JA8

Designed by FLOS Architectural

Airtight IC Rated JA8 CA Title 24 Listed LED lighting module (fixed and adjustable ‘push’) with low glare, to be inserted in the recessed frames (not included), installation through a system with interchangeable spots. Remote driver not included.

Download Documentation

Product highlight

The revolution in low glare lighting

Versatile recessed LED lighting module with high luminous efficiency.

Discover the Story

P_Md_F-Light-Shadow-Pro-45-Flos-Architectural-highlight

Luminaires

(36)

Optical type

System flux (lm)

CCT (K)

Certifications

Color

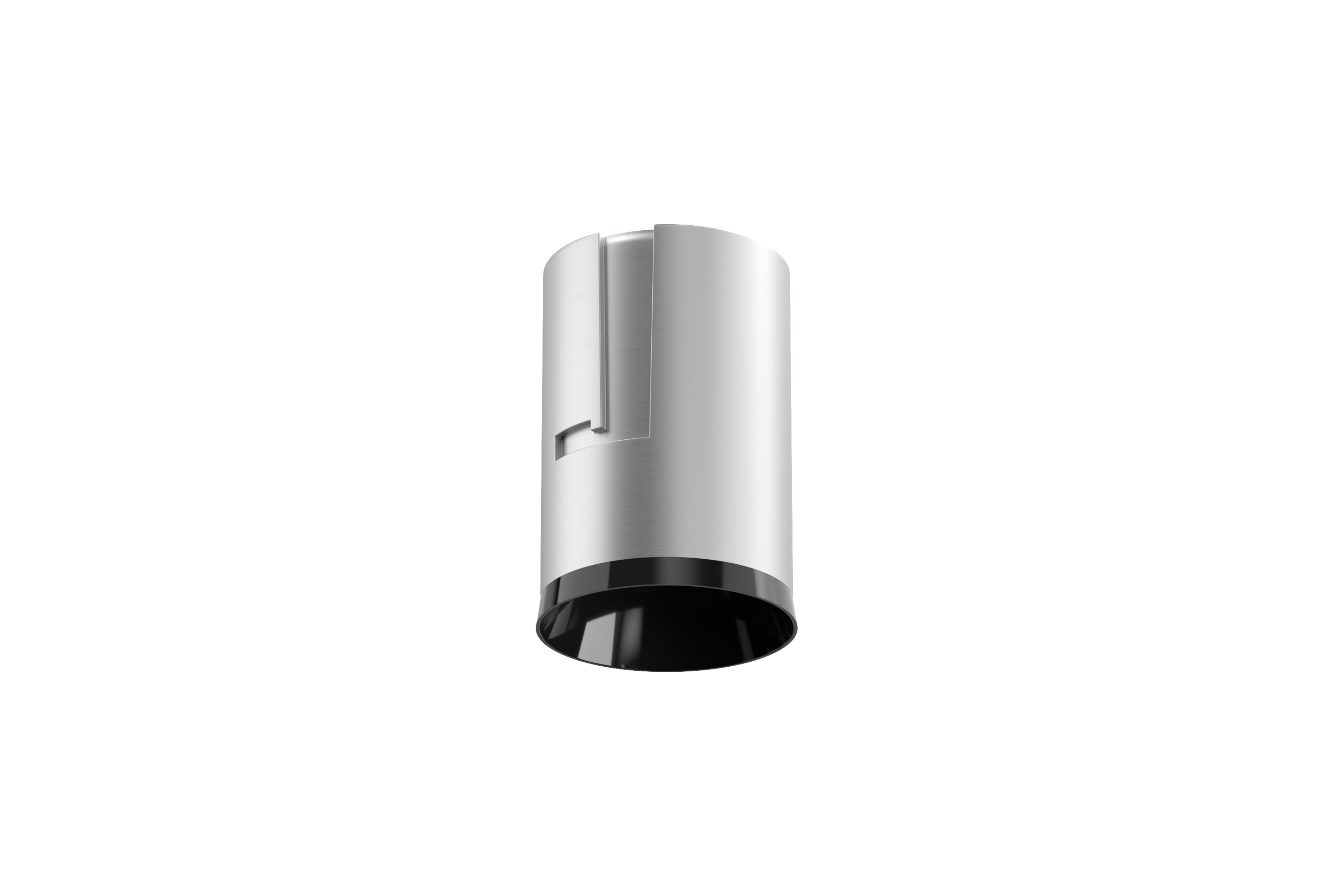

Light Shadow Pro Ø45 Fixed

36 items

Collapse

Code	Name	Power (W)	System flux (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.2512.ES.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	755	4000	90	31	Dimmable 0-10V, Dimmable ELV	Recessed
05.2512.ER.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	753	4000	90	31	Dimmable 0-10V, Dimmable ELV	Recessed
05.2512.40.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	768	4000	90	33	Dimmable 0-10V, Dimmable ELV	Recessed
05.2512.14.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	747	4000	90	31	Dimmable 0-10V, Dimmable ELV	Recessed
05.2511.ES.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	748	4000	90	20	Dimmable 0-10V, Dimmable ELV	Recessed
05.2511.ER.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	745	4000	90	20	Dimmable 0-10V, Dimmable ELV	Recessed
05.2511.40.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	760	4000	90	20	Dimmable 0-10V, Dimmable ELV	Recessed
05.2511.14.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	747	4000	90	21	Dimmable 0-10V, Dimmable ELV	Recessed
05.2510.ES.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	754	4000	90	15	Dimmable 0-10V, Dimmable ELV	Recessed
05.2510.ER.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	762	4000	90	16	Dimmable 0-10V, Dimmable ELV	Recessed
05.2510.40.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	765	4000	90	15	Dimmable 0-10V, Dimmable ELV	Recessed
05.2510.14.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	752	4000	90	15	Dimmable 0-10V, Dimmable ELV	Recessed
05.2507.ES.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	681	3000	90	31	Dimmable 0-10V, Dimmable ELV	Recessed
05.2507.ER.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	679	3000	90	31	Dimmable 0-10V, Dimmable ELV	Recessed
05.2507.40.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	692	3000	90	33	Dimmable 0-10V, Dimmable ELV	Recessed
05.2507.14.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	674	3000	90	31	Dimmable 0-10V, Dimmable ELV	Recessed
05.2506.ES.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	674	3000	90	20	Dimmable 0-10V, Dimmable ELV	Recessed
05.2506.ER.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	671	3000	90	20	Dimmable 0-10V, Dimmable ELV	Recessed
05.2506.40.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	686	3000	90	20	Dimmable 0-10V, Dimmable ELV	Recessed
05.2506.14.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	674	3000	90	21	Dimmable 0-10V, Dimmable ELV	Recessed
05.2505.ES.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	680	3000	90	15	Dimmable 0-10V, Dimmable ELV	Recessed
05.2505.ER.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	687	3000	90	16	Dimmable 0-10V, Dimmable ELV	Recessed
05.2505.40.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	690	3000	90	15	Dimmable 0-10V, Dimmable ELV	Recessed
05.2505.14.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	678	3000	90	15	Dimmable 0-10V, Dimmable ELV	Recessed
05.2502.ES.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	666	2700	90	31	Dimmable 0-10V, Dimmable ELV	Recessed
05.2502.ER.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	664	2700	90	31	Dimmable 0-10V, Dimmable ELV	Recessed
05.2502.40.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	678	2700	90	33	Dimmable 0-10V, Dimmable ELV	Recessed
05.2502.14.98	Light Shadow Pro Ø 45 Fixed Optic Flood - Airtight IC Rated - JA8	8.8	659	2700	90	31	Dimmable 0-10V, Dimmable ELV	Recessed
05.2501.ES.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	659	2700	90	20	Dimmable 0-10V, Dimmable ELV	Recessed
05.2501.ER.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	657	2700	90	20	Dimmable 0-10V, Dimmable ELV	Recessed
05.2501.40.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	671	2700	90	20	Dimmable 0-10V, Dimmable ELV	Recessed
05.2501.14.98	Light Shadow Pro Ø 45 Fixed Optic Medium - Airtight IC Rated - JA8	8.8	659	2700	90	21	Dimmable 0-10V, Dimmable ELV	Recessed
05.2500.ES.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	665	2700	90	15	Dimmable 0-10V, Dimmable ELV	Recessed
05.2500.ER.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	673	2700	90	16	Dimmable 0-10V, Dimmable ELV	Recessed
05.2500.40.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	675	2700	90	15	Dimmable 0-10V, Dimmable ELV	Recessed
05.2500.14.98	Light Shadow Pro Ø 45 Fixed Optic Spot - Airtight IC Rated - JA8	8.8	663	2700	90	15	Dimmable 0-10V, Dimmable ELV	Recessed
