2097
AU135231Matte Black

2097/18 (clear bulbs)

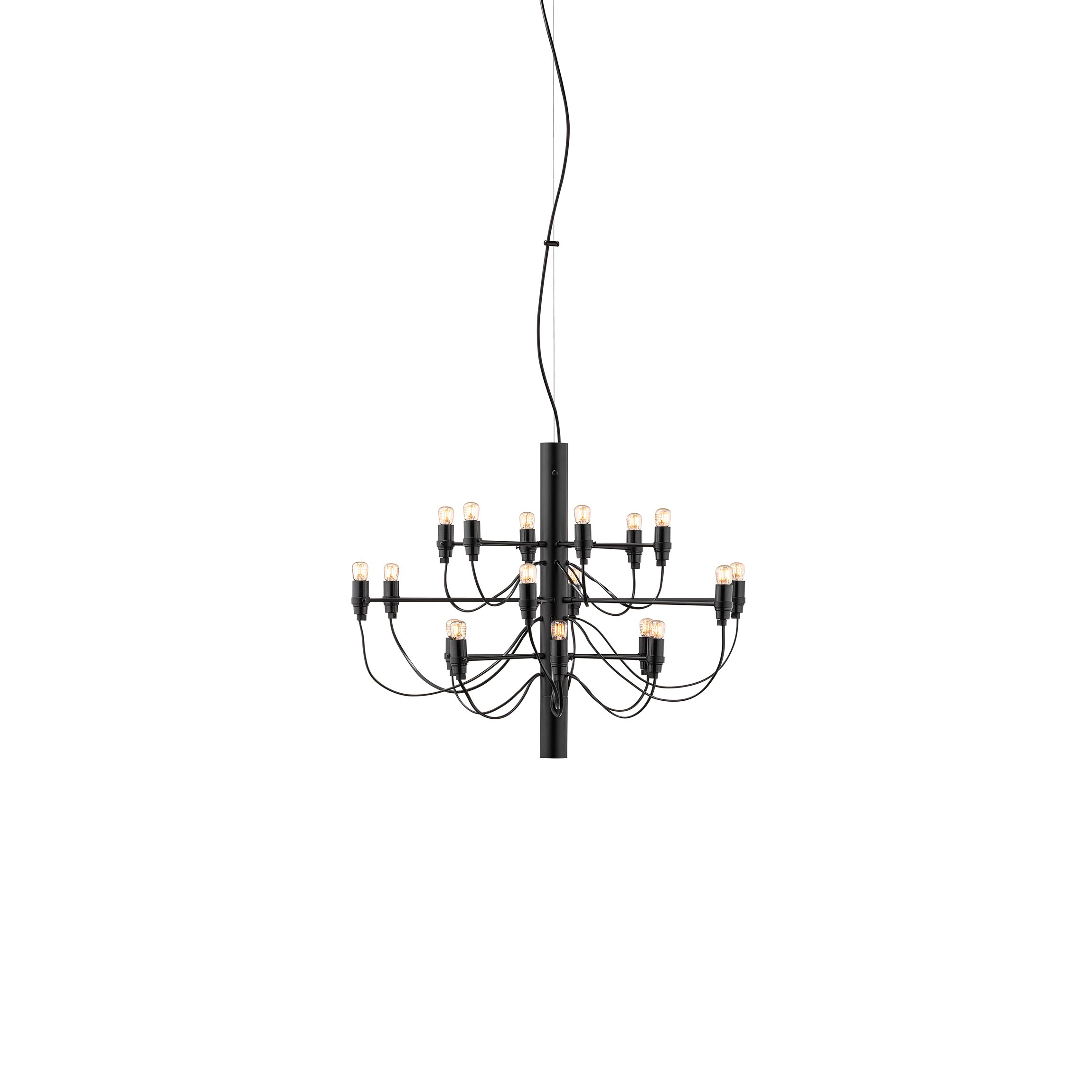

Suspension lamp providing diffused light. Steel central structure with brass arms, both available either chromium-plated, matte black, matte white or golded. Steel ceiling fitting and rose.

LED retrofit - 18 x 3W

Find a Flos store
Request a quote
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Suspension-2097-18
Main specifications
EAN
8059607080245
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
Yes
Lamp category
LED retrofit
Lamp holders
E12
Number of lamps
18
Power (W)
3
Photometric
Lighting type
Total
Light distribution
Asymmetric
Electrical
Insulation class
I
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
Matte Black
Length (in)
26.38
Cord length (in)
110.236
Canopy height (in)
1.102
Net weight (lb)
7.72
Gross weight (lb)
9.19
Package volume (in)
1098.37
IP internal
20
UL
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Technical Drawings

3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

Bulbs

Thumbnail
x1
INCLUDEDClear LED Lamp 2,7W E12 120V 2700K T26 - Dimmable - 20pcRF35783
Thumbnail
x18
NOT INCLUDEDClear LED Lamp 7W E12 120V 2700K T26 - DimmableRF35782

Spare Parts

A1352031-2097-18-flos-boom
01. 2097 Ceiling Rose
RLU706700
02. Opal black short arm (200mm)
RF26022
03. 2097/18 Black Medium Arm (310mm)
RF33864
04. 2097 E12 Black lamp holder US
RF27104
05. 2097 Opal black screw kit
RF1400100
06. 2097/18-30 Opal black lower cap
RF1400200
x1
2097 Ceiling RoseRLU706700
Thumbnail
x1
Opal black short arm (200mm)RF26022
x1
2097/18 Black Medium Arm (310mm)RF33864
Thumbnail
x1
2097 E12 Black lamp holder USRF27104
Thumbnail
x1
2097 Opal black screw kitRF1400100
Thumbnail
x1
2097/18-30 Opal black lower capRF1400200
