2097

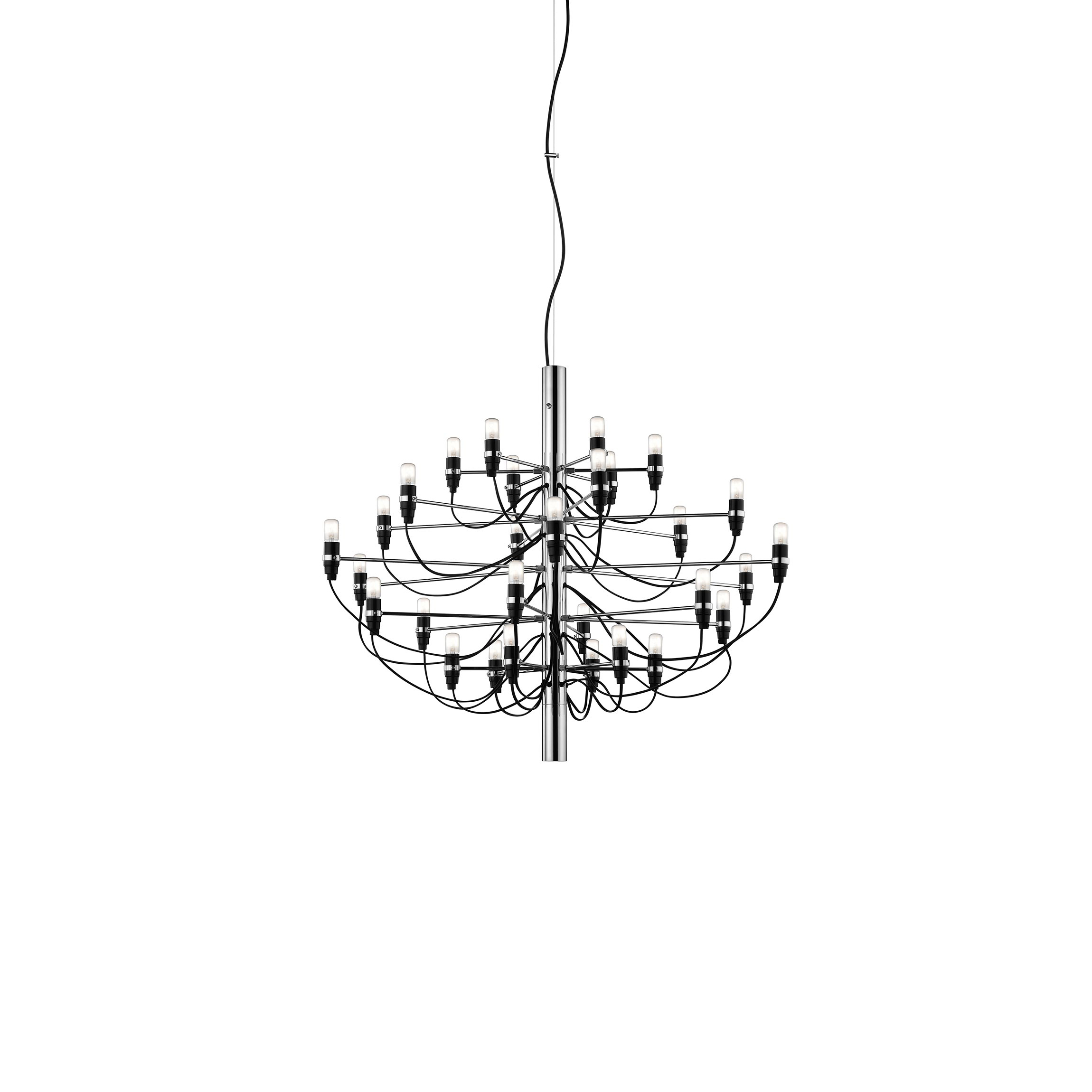

AU140257Chrome2097/30 (clear bulbs)
Designed by Gino Sarfatti, 1958
Suspension lamp providing diffused light. Steel central structure with brass arms, both available either chromium-plated, matte black, matte white or golded. Steel ceiling fitting and rose.
LED retrofit - 30 x 3W
Technical Drawing
Main specifications
EAN
8059607080290
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
Yes
Lamp category
LED retrofit
Lamp holders
E12
Number of lamps
30
Power (W)
3
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Asymmetric
Electrical
Insulation class
I
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
Chrome
Length (in)
34.65
Cord length (in)
110.236
Canopy height (in)
1.102
Net weight (lb)
12.63
Gross weight (lb)
14.09
Package volume (in)
1169.77
IP internal
20
Bulbs
Spare Parts
01. 2097 Ceiling Rose
RLU706700
02. 2097/30 Chrome short arm (180mm)
RL7050457
03. 2097/30 Chrome medium arm (330mm)
RL7050557
04. 2097/30 Chrome long arm (430mm)
RL7050657
05. 2097 E12 Black lamp holder US
RF27104
06. Chrome screw kit
RL7050757
07. Chrome lower cap
RL7050900
