2097
AU150231Matte Black

2097/50 (clear bulbs)

Suspension lamp providing diffused light. Steel central structure with brass arms, both available either chromium-plated, matte black, matte white or golded. Steel ceiling fitting and rose.

LED retrofit - 50 x 3W

Find a Flos store
Request a quote
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Suspension-2097-50
Main specifications
EAN
8059607080320
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
Yes
Lamp category
LED retrofit
Lamp holders
E12
Number of lamps
50
Power (W)
3
Schematic light drawing
A15000XXW2097-50_50X15W-HL
Photometric
Lighting type
Total
Light distribution
Asymmetric
Electrical
Insulation class
I
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
Matte Black
Length (in)
39.37
Cord length (in)
110.236
Canopy height (in)
1.102
Net weight (lb)
23.1
Gross weight (lb)
25.71
Package volume (in)
2137.49
IP internal
20
UL
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

Bulbs

Thumbnail
x1
INCLUDEDClear LED Lamp 2,7W E12 120V 2700K T26 - Dimmable - 20pcRF35783
Thumbnail
x1
INCLUDEDClear LED Lamp 2,7W E12 120V 2700K T26 - Dimmable - 32pcRF35784
Thumbnail
x50
NOT INCLUDEDClear LED Lamp 7W E12 120V 2700K T26 - DimmableRF35782

Spare Parts

A1502031-2097-50-flos-boom

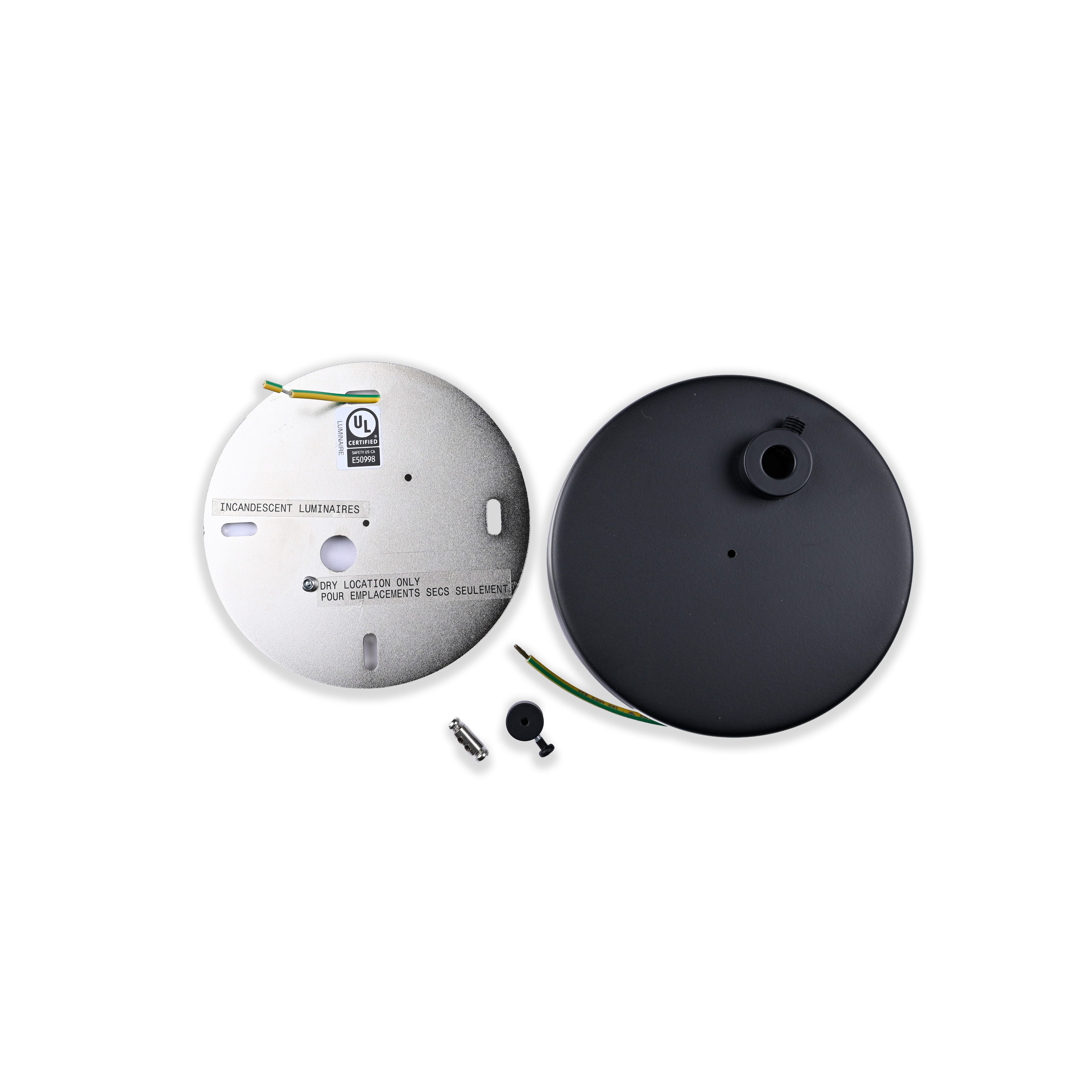

01. 2097-50 Black ceiling rose US
RF1500231
02. Opal black short arm (200mm)
RF26022
03. 2097/50 Opal black medium arm (375mm)
RF26024
04. 2097/50 Opal black long arm (475mm)
RF26025
05. 2097 E12 Black lamp holder US
RF27104
06. 2097 Opal black screw kit
RF1400100
07. 2097/50 Opal black lower cap
RF1400300
x1
2097-50 Black ceiling rose USRF1500231
Thumbnail
x1
Opal black short arm (200mm)RF26022
Thumbnail
x1
2097/50 Opal black medium arm (375mm)RF26024
Thumbnail
x1
2097/50 Opal black long arm (475mm)RF26025
Thumbnail
x1
2097 E12 Black lamp holder USRF27104
Thumbnail
x1
2097 Opal black screw kitRF1400100
Thumbnail
x1
2097/50 Opal black lower capRF1400300
