265
AU030099Chromatica265 Chromatica
Designed by Paolo Rizzatto, 1973

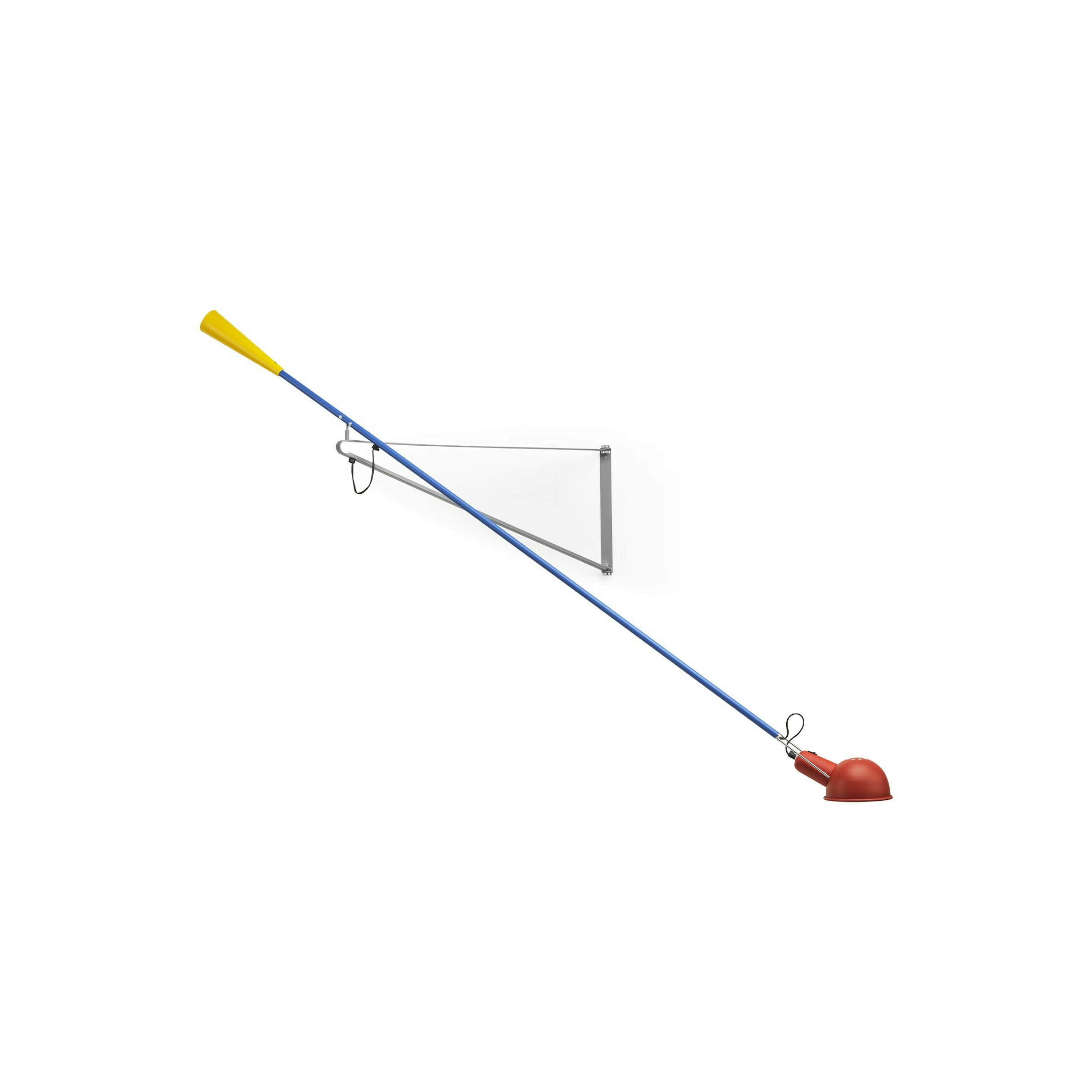

Wall-mounted lamp emitting direct light. Features a painted steel adjustable arm and rotating reflector, chrome-plated brass reflector support and cast-iron tapered counterweight. Mounted to the wall with a painted steel fixture.
Incandescent - 60W
Technical Drawing
Main specifications
EAN
8059607040539
Mounting
Wall
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
No
Lamp category
Incandescent
Lamp type
A
Lamp holders
E26
Number of lamps
1
Power (W)
60
Photometric
Lighting type
Direct
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Switch Integrated (Remote Dimmable)
Plug type
Type A
Batteries inside
No
Physical
Color
Chromatica
Length (in)
96.46
Cord length (in)
79.921
Net weight (lb)
12.79
Gross weight (lb)
20.28
Package height (in)
83.07
Package width (in)
5.91
Package length (in)
15.35
Package volume (in)
7532.5
IP internal
20
Spare Parts
01. 265/265 Small Screw set for wall attachment
RA0300200
02. 265 Matt Yellow Counterweight
RF31192
03. 265/ 265 Small Red reflector support and electrical cable assembly
RF31206
04. 265 Small Matt Red reflector
RF31207
05. 265 Matt Grey Wall Attachment
RF31194
06. 265 Matt Grey Triangle Bracket Suport
RF31193
07. 265/265 Small Screws bag group stm3x 3 ce c.10 p
RF11719
