265
AU032009White265 Small
Designed by Paolo Rizzatto, 1973

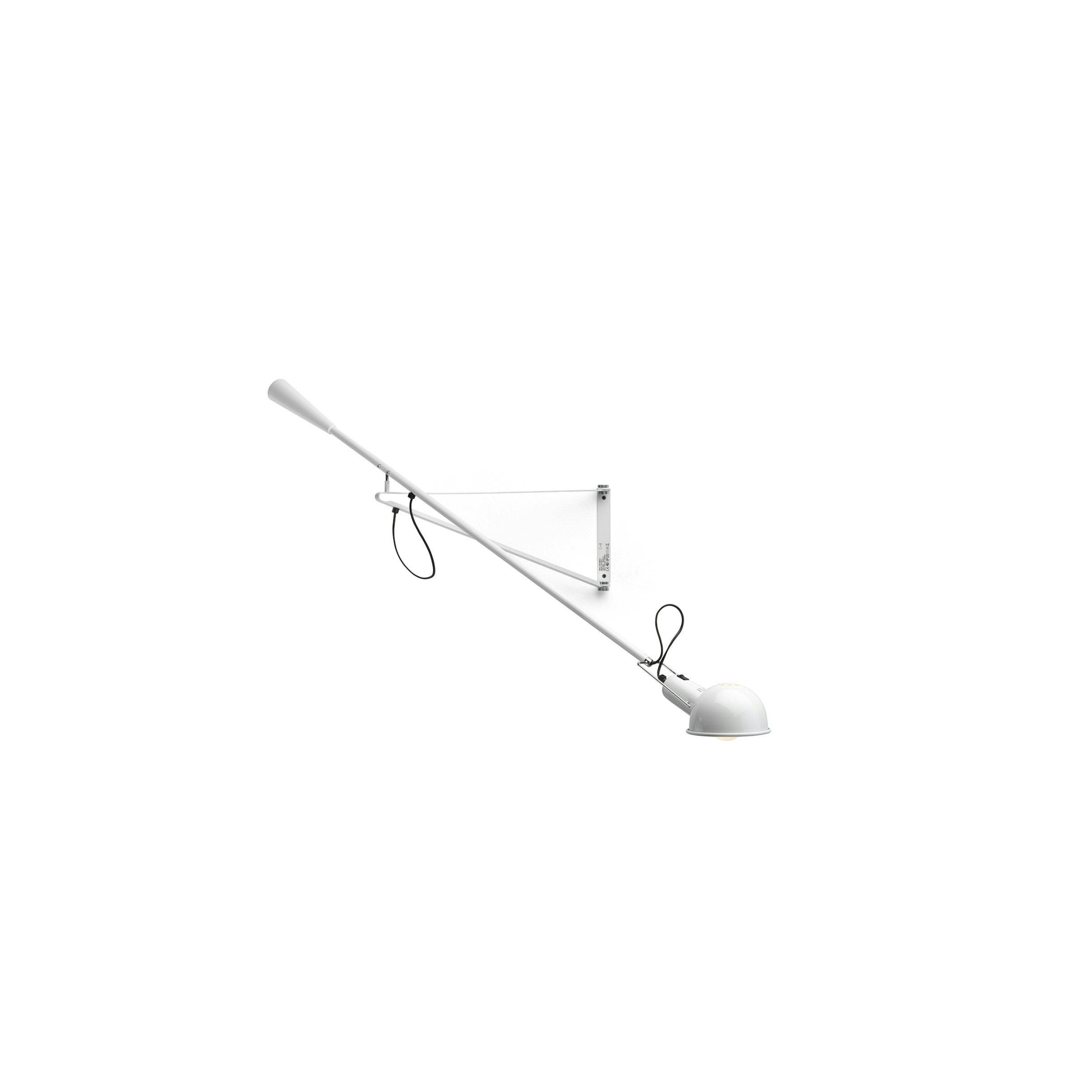

Wall-mounted lamp emitting direct light. Features a painted steel adjustable arm and rotating reflector, chrome-plated brass reflector support and cast-iron tapered counterweight. Mounted to the wall with a painted steel fixture.
Halogen - 60W
Technical Drawing
Main specifications
EAN
8059607047330
Mounting
Wall
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E26
Ilcos
HSGSA
Number of lamps
1
Power (W)
60
Photometric
Lighting type
Direct
Light distribution
Asymmetric
Electrical
Insulation class
II
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Switch Integrated (Remote Dimmable)
Plug type
Type A
Batteries inside
No
Physical
Color
White
Length (in)
66.14
Cord length (in)
79.921
Net weight (lb)
8.38
Gross weight (lb)
14.99
Package height (in)
67.91
Package width (in)
5.91
Package length (in)
13.39
Package volume (in)
5368.58
IP internal
20
Spare Parts
01. 265/265 Small Screw set for wall attachment
RA0300200
02. 265 Small Counterweight White
RF32736
03. 265/265 Small White UL lamp holder with reflector support and electrical cable assembly
RF29261

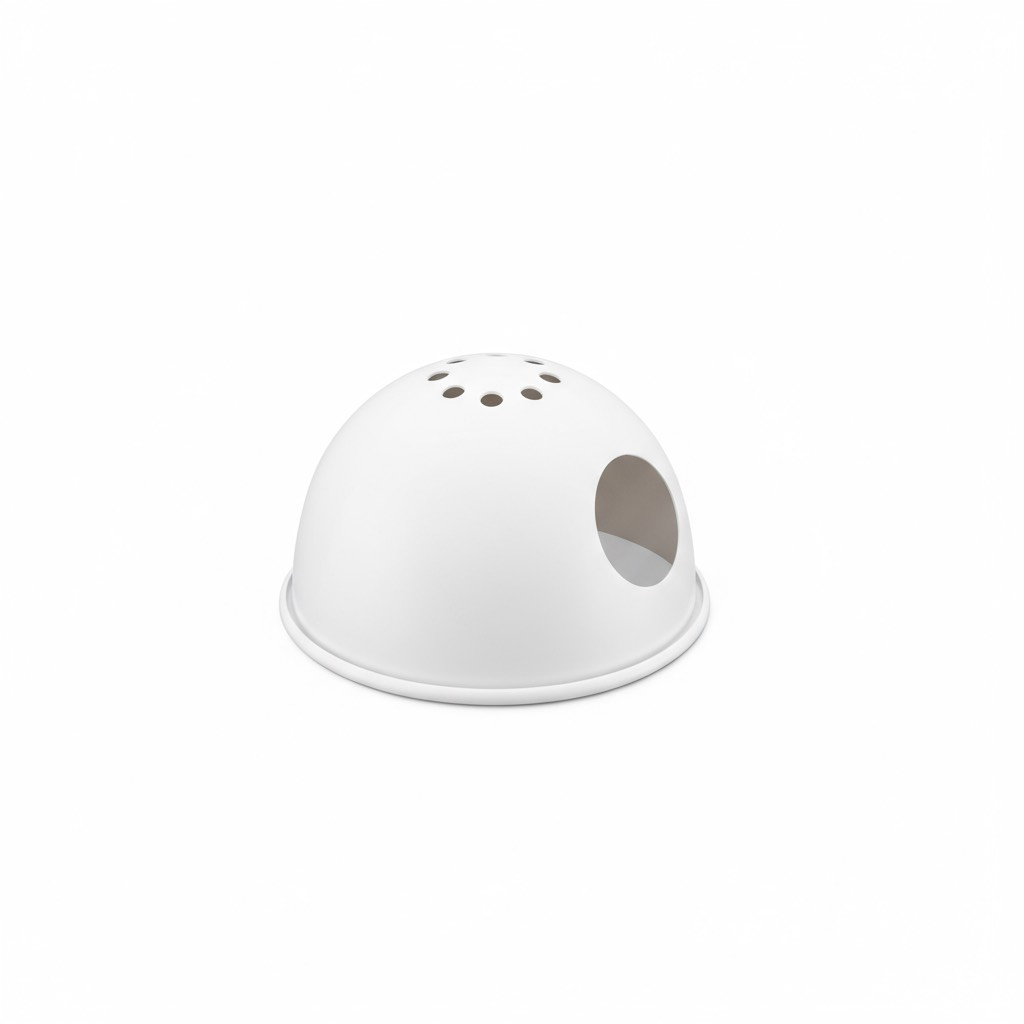

04. 265 Small White reflector
RF29268
05. 265 Small Wall Attachment White
RF32740
06. 265 Small Bracket Support White
RF32738
07. 265/265 Small Screws bag group stm3x 3 ce c.10 p
RF11719
