Aim
FU009030 Black

Aim

Created by the Bouroullec brothers in 2010, the AIM ceiling light is a design stripped to its most basic-and beautiful-essence. This innovative form of modern pendant lighting is constructed from a varnished aluminum sheet with a photo-etched optical PC (polycarbonate) shade. The internal reflector is photo-etched ABS. The cable can be adjusted to allow the fixture head and light distribution to be aimed in whatever way you choose. The cable has a total length of 354" long = 29.50 feet = 9 MT. Available in classic white, black and bronze in addition to new lively colors introduced in 2021 Anodized Blue Steel, Anodized Green, and Anodized Light Silver. The AIM pendant provides direct lighting and is available in two versions: hardwired or plug-in. 1. AIM - Hardwired: Connects to wall-switch by hardwiring to a 120V junction box (no additional LED driver is required). Comes with a 5" diameter canopy.2. AIM - Plug-in: Switch and cord that you can plug into a socket, non-dimmable. Inspiration behind the design: When they created the AIM ceiling light, brothers Ronan and Erwan Bouroullec wanted to keep its core essence limited to the source of light and its cord. By doing that, they ensured that the AIM is versatile enough for any setting not only because of its appearance, but also because it provides a convenient, easily "aimed" light.

12W - 880lm - 2700K - CRI> 90

Also available in:
Technical Drawing
aim-suspension-bouroullec-flos-F00900-spech-tech-300x263-in
Main specifications
EAN
8059607027615
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Multichip LED
Power (W)
12
System power (W)
12
System flux (lm)
880
Photometric
Light distribution
Roto symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
60
Main voltage (Vac)
120
Driver
Integrated
Dimmable
Yes
Dimming type
Mains Cut Dimming
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
Black
Length (in)
9.57
Cord color
Black
Cord length (in)
354.331
Canopy color
Black
Canopy lenght/diameter (in)
4.488
Canopy height (in)
0.748
Net weight (lb)
7.05
Package height (in)
11.81
Package width (in)
14.76
Package length (in)
11.81
Package volume (in)
2059.56
IP internal
20
RETILAP
Canada & USA
20

Download

Tech spec pdf
Mounting instructions
Dimmers or chargers compatible

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

Optional (1)

Spare Parts

FU009030-aim-flos-boom
01. Aim/Aim Small Black ceiling attachment assembly
RF0090130
02. Aim/Aim Small Kit of quantity 3 m4 screws
RF06750

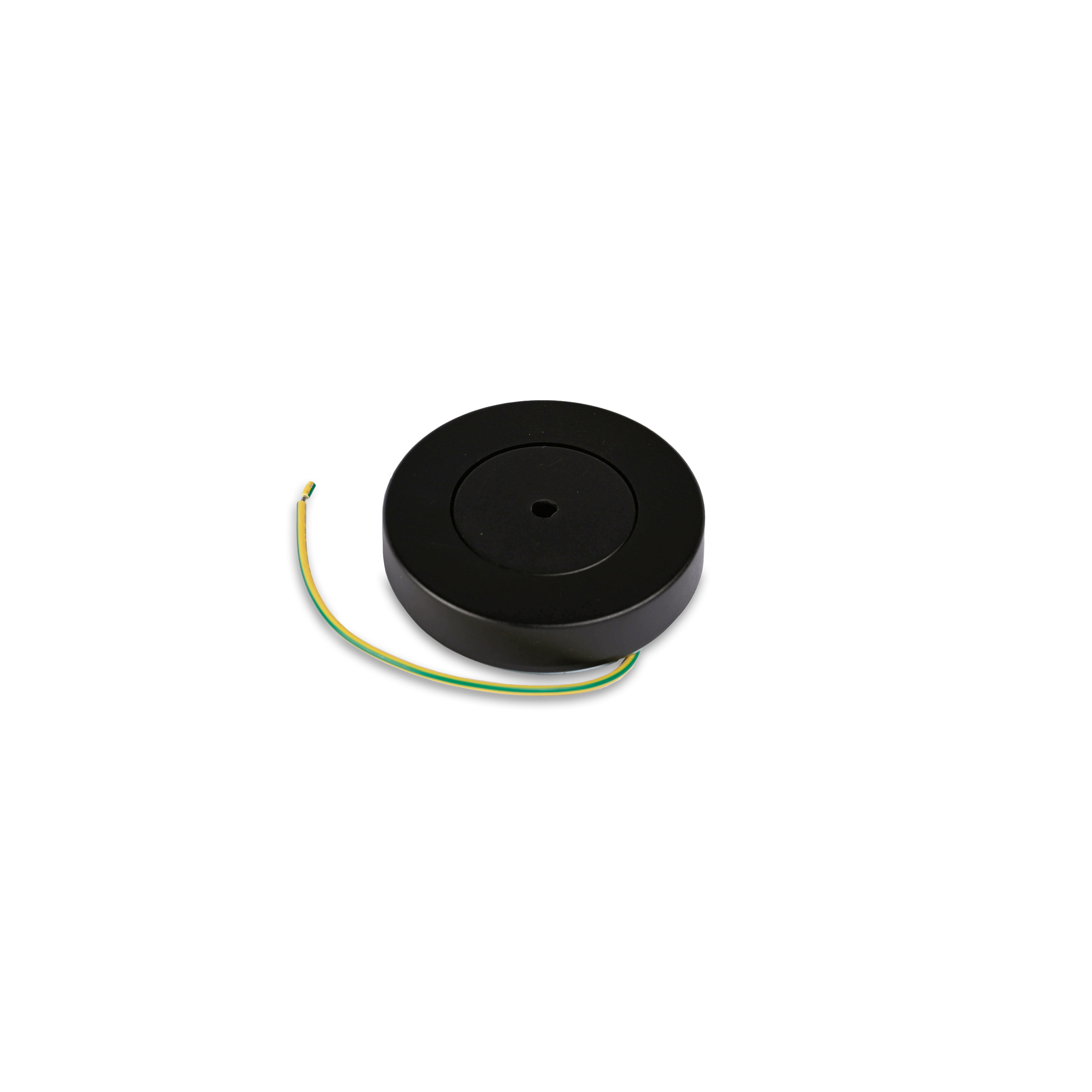

03. AIM Ceiling Rose Assembly In Black
RFU009930
04. Aim Assembly Led Board 2700K
RFU009100
