Arco
FU030000 Steel

Arco

A legendary design has been featured in Hollywood classics including Diamonds are Forever and The Italian Job, Arco is a design icon that has been in constant production since its debut in 1962. The modern arc floor lamp considered a design classic. The famed Castiglioni brothers spared no detail when they created it, from the beveled corners of its genuine Carrera marble base (designed not to hurt should you brush against them) to the strategic hole that allows for easy lifting of the base.FEATURESThe base supports a spun aluminum reflector via a curved stainless steel adjustable stem, allowing the lamp to offer both direct and indirect light. The height extends to almost 7-feet, allowing for easy placement of a couch or table underneath.Stainless steel finish. Available in LED or incandescent INSPIRATION BEHIND THE DESIGNThe Castiglioni brothers drew their inspiration for the Arco lamp from something they saw every day: a streetlight. Using commercially available parts, they set out to design a piece that was technically innovative and visually appealinga lamp that was functional but wouldnt need to be stepped around. They finished it with a marble base, knowing that the same weight would take up less space, allowing the Arco to live innot take overthe room it illuminated.

Incandescent - 100W

Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Floor-Arco
Main specifications
Mounting
Floor
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
No
Lamp category
Incandescent
Lamp type
A
Lamp holders
E26
Number of lamps
1
Power (W)
100
Photometric
Lighting type
Direct
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Switch Integrated (Remote Dimmable)
Plug type
Type A
Batteries inside
No
Physical
Color
Steel
Length (in)
86.61
Cord color
Black
Cord length (in)
106.299
Net weight (lb)
141.34
Package volume (in)
8106.61
IP internal
20
RETILAP
Canada & USA
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Technical Drawings

2D
3D

Spare Parts

FU030000-arco-flos-boom
01. Pins and screw set
RF0300200
02. Arco Arm Assembly Spare Parts #37 & #15
FU330000
03. Long inox channel
RF02970
04. Medium inox channel
RF02971
05. Arco Small Arm Assembly
RFU030310

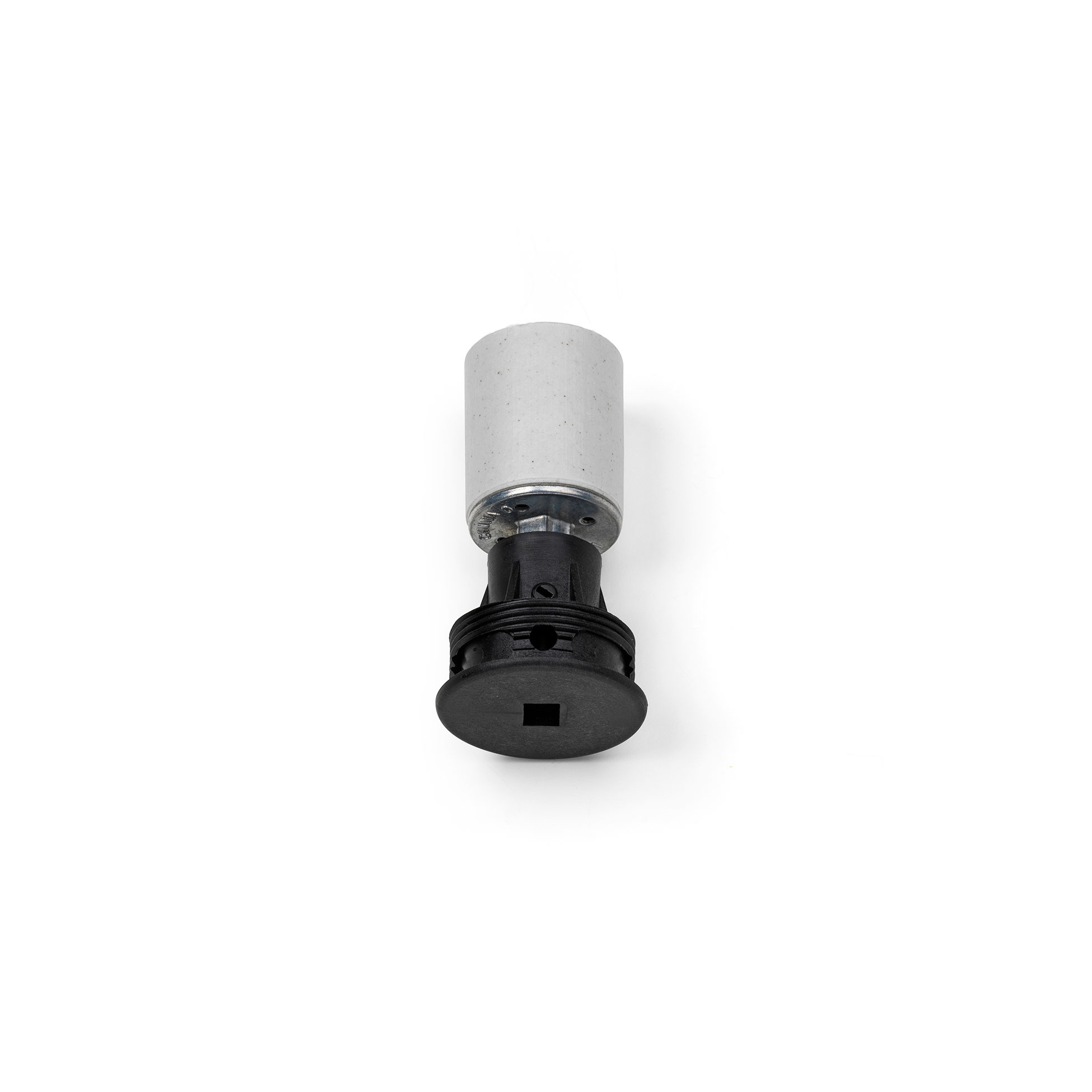

06. Arco E26 Lampholder With Joint And Fixing Screw
RFU030030
07. Arco Anodized sleeve
RF02593
08. Arco Shade and Grid
FU320000
09. Polished reflector
RF00797
10. Arco Polished grid
RF01411
11. Fixing screw with joint
RF0300100
12. Marble base
F0310000
13. Arco Footswitch And Cord
RF17423
14. Pedal On/Off Switch In Bronze
RF15858
15. Inox stem
RF21041
