Bellhop
FU108409 White

Bellhop Glass S1

Bellhop Glass Suspension can be used it as an ambient but also as a task light, which directly illuminates, with a non-blinding cone of light, the surface on which it is suspended. The hole in the bottom part of the lamp, protected by an aluminum element, is shaped to direct the light (and change the bulb) avoiding the diffusion up to the eyes of those sitting at the table. A cone of light is therefore created inside the suspended Bellhop Glass, which expands homogeneously in the environment on all sides and lands on the table precisely, like a torch, visually signaled by the colored aluminum ring that surrounds the lower opening of the lamp.

Halogen - 75W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Suspension-Bellhop-S1
Main specifications
EAN
8059607073827
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
No
Lamp category
Halogen

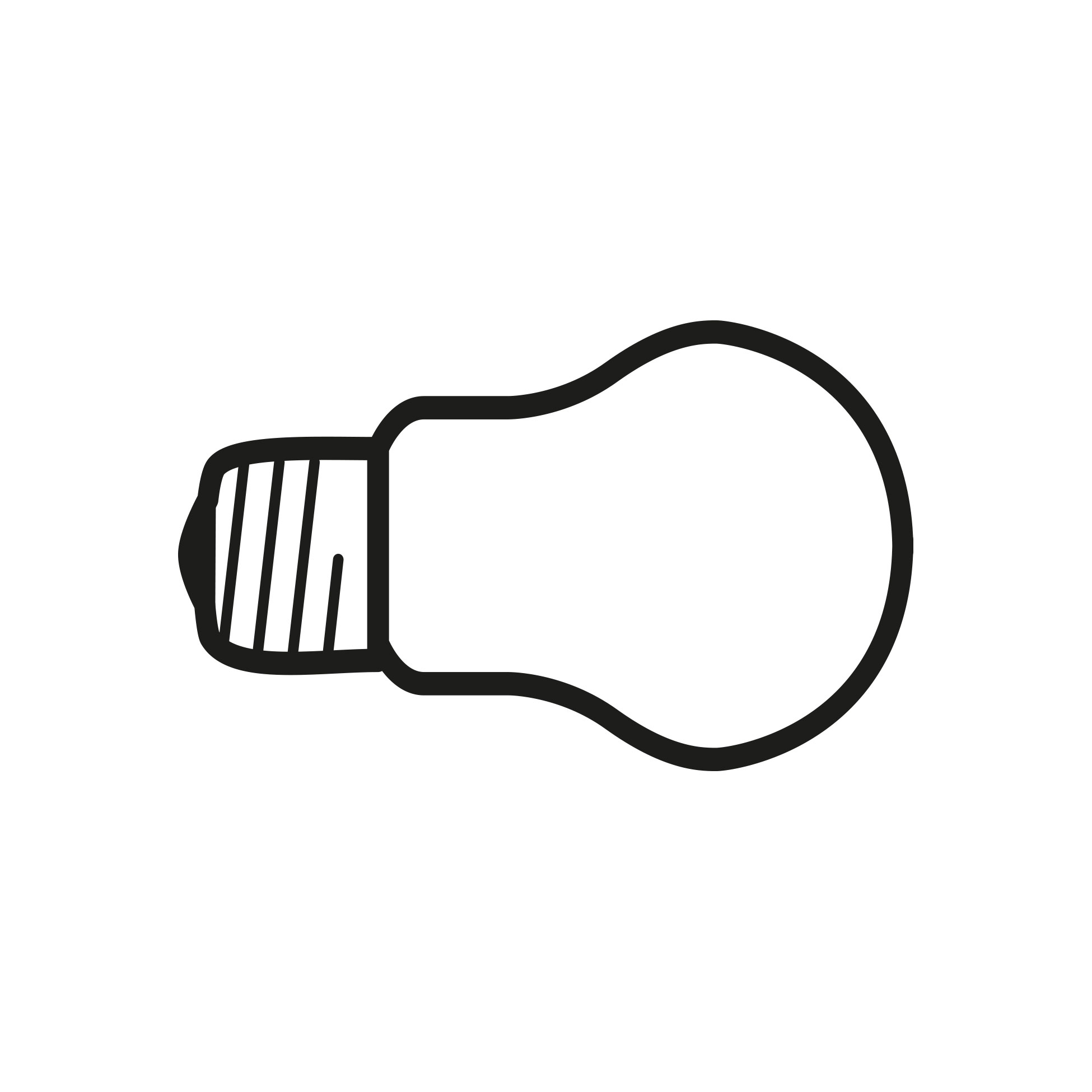

Lamp type
A
Lamp holders
E26
Number of lamps
1
Power (W)
75
System power (W)
75
Schematic light drawing
F10840XXWBELLHOP-GLASS-S1_25W-LED
Photometric
Lighting type
Total
Light distribution
Symmetric
Electrical
Insulation class
I
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
White
Length (in)
12.99
Cord length (in)
106.299
Canopy height (in)
1.220
Net weight (lb)
6.83
Gross weight (lb)
12.9
Package volume (in)
4190.52
IP internal
20
RG
UL

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

REPLACEABLE4 Replaceable (LED only) light source by an end-user

Spare Parts

01. Bellhop Glass S white ceiling rose assembly
RFU108109
02. Steel cable 3 meters
RF36887
