Bellhop
FU108019 YellowBellhop Wall Up
Designed by Edward Barber and Jay Osgerby, 2022

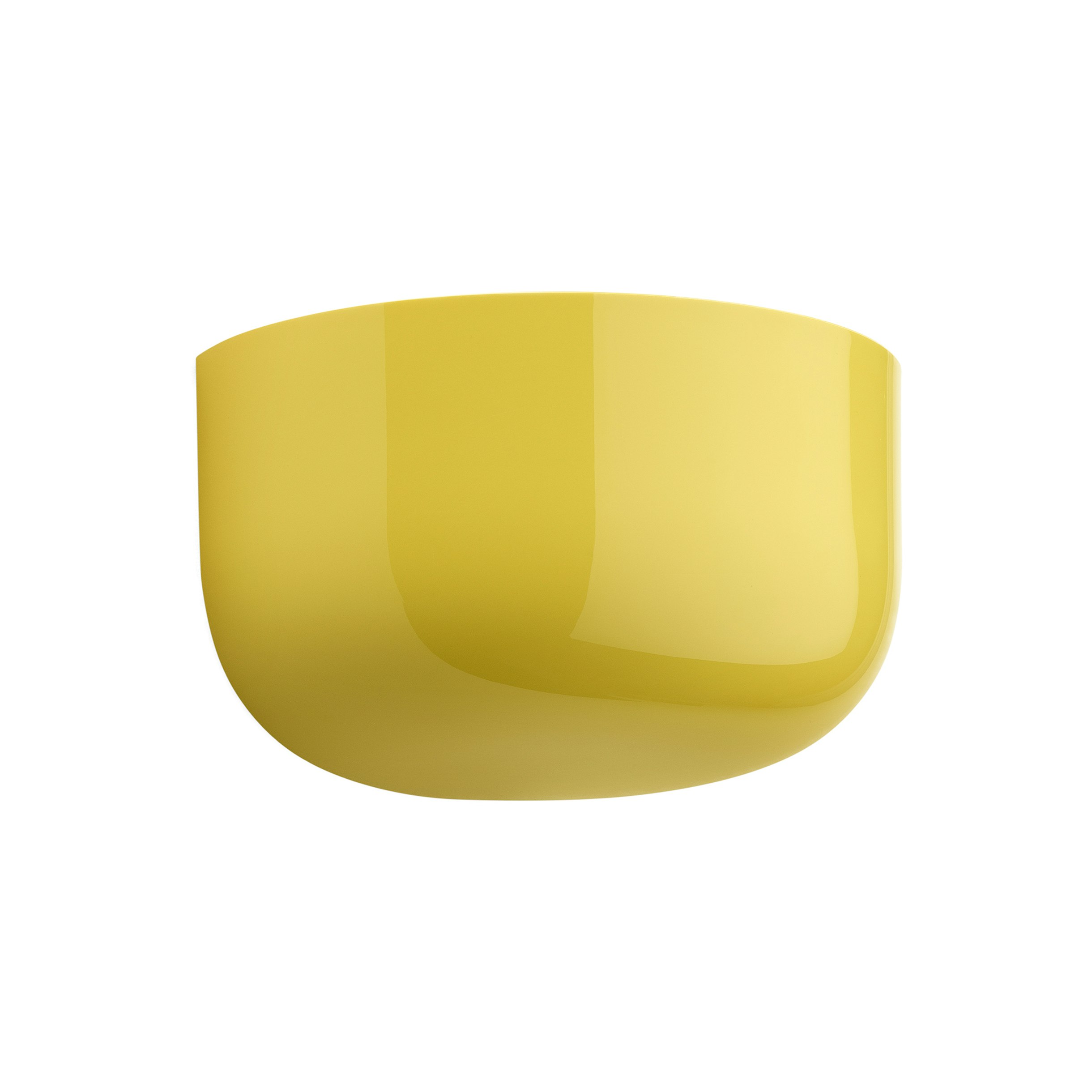

Designed by Edward Barber and Jay Osgerby Indirect light wall lamp. Body in colored polycarbonate. Diffuser made of semi-transparent injection-moulded polycarbonate. The surface of the diffuser has been designed with a special texture to enhance the uniformity of the light distribution. High efficiency LED source with a lifetime of more than 50.000 hours. The LED source can be easily replaced on site by a professional installer when it comes to the end of its lifecycle. Bellhop Wall Up is a future-proof lamp as no glue is used to assemble its different parts. The product can therefore be separated, replaced individually, and recycled separately.
17W - 1332lm - 2700K - CRI> 90
Technical Drawing
Main specifications
EAN
8059607047880
Mounting
Wall
Environments
Indoor damp location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
17
System power (W)
17
System flux (lm)
1332
Schematic light drawing
Photometric
Lighting type
Direct, Indirect
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
120
Driver
Integrated
Dimmable
Yes
Dimming type
Mains Cut Dimming
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Color
Yellow
Length (in)
5.91
Net weight (lb)
2.47
Gross weight (lb)
3.75
Package height (in)
8.86
Package width (in)
6.06
Package length (in)
10.71
Package volume (in)
575.15
IP internal
44
Replaceable (LED only) light source by a professional
Spare Parts
01.
Bellhop Wall Up Transparent Difusser
RF34084
02.
Bellhop Wall Up Led board
RF1080200
