Black Flag
FU109000Matte Black

Black Flag Primer

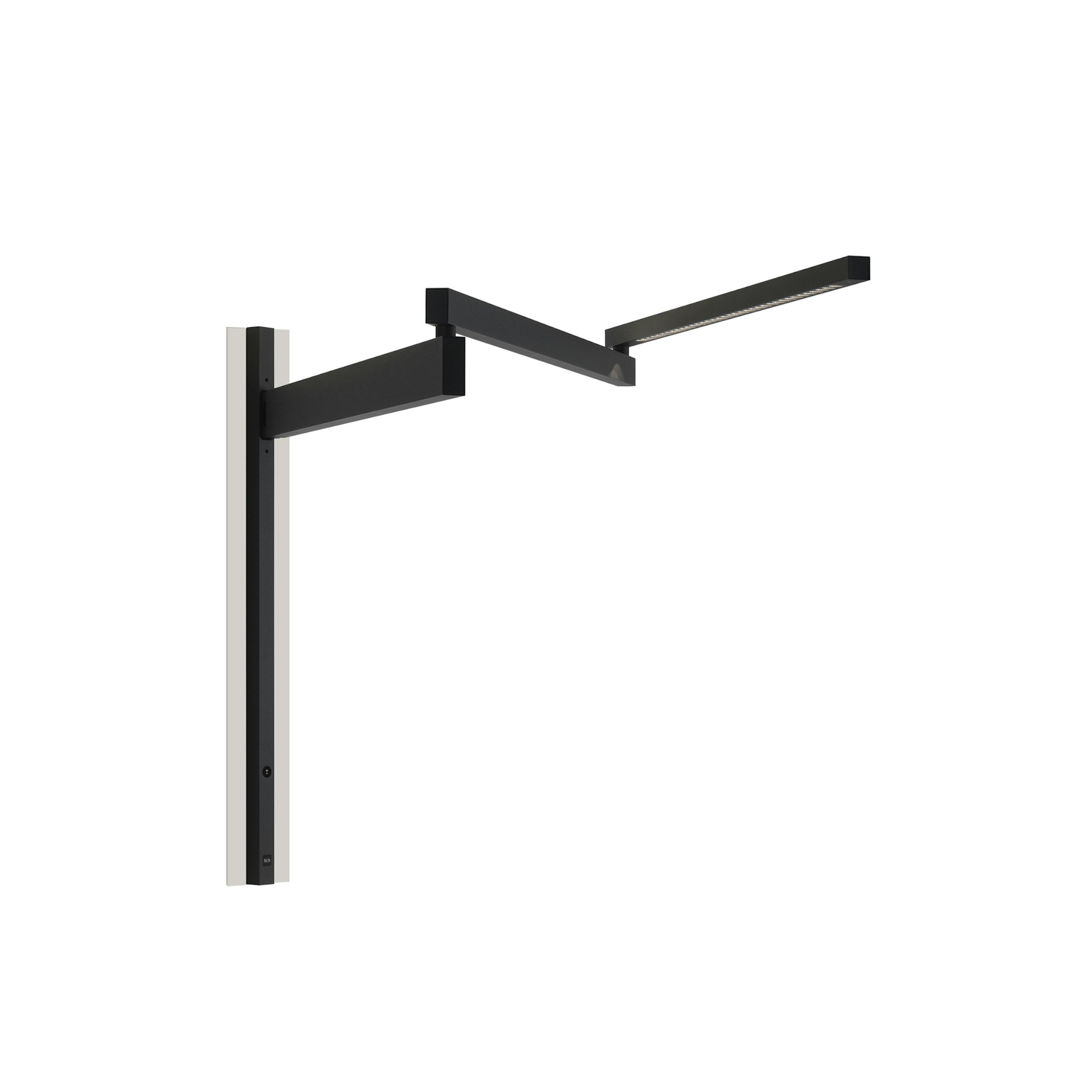

Wall-mounted lamp emitting direct and indirect light. Features an extendable aluminium arm that extends up to 3.5 metres from a vertical wall-mounted frame. Integrated touch-sensitive control panel on the arm enables on/off switching and independent dimming of upward and downward light. Can be wired to a light point or through an IEC plug.

75W - 2700K - CRI> 90

Find a Flos store
Request a quote
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Wall-Black_Flag
Main specifications
EAN
8059607069370
Mounting
Wall
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
75
Schematic light drawing
35317_ASS-ASTA-SUPERIORE-UP-DOWN_FLAG
Photometric
Lighting type
Direct, Indirect
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
120
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable
Dimming interface
Dimmer Integrated
Physical
Color
Matte Black
Canopy width (in)
1.693
Canopy height (in)
1.693
Net weight (lb)
39.13
Gross weight (lb)
50.71
Package volume (in)
4974.67
IP internal
20
UL
RG
RETILAP
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

REPLACEABLE4

PWRSUPRPL2

Spare Parts

FU109000-black-flag-flos-boom
00. Super magnet diam. 22
RF37394
01. Led power supply 100W-48 120-277V 48V 96W
RF35622
03. Black Flag up stripe assembly
RF35321
04. Black Flag down 2700°K stripe assembly
RF35320
x1
Super magnet diam. 22RF37394
x1
Led power supply 100W-48 120-277V 48V 96WRF35622
x1
Black Flag up stripe assemblyRF35321
x1
Black Flag down 2700°K stripe assemblyRF35320
