Black Flag
FU109100 Matte Black

Black Flag Pro Primer

Black Flag is an extendable wall light that offers flexibility of illumination thanks to the expanding aluminium arm reaching up to 3.5meters from a wall-mounted frame of the same material. Wall lamp and sculptural centre piece, Black Flag embodies Grcic’s industrial design expertise and demonstrates the experimental opportunities of his approach mixed with Flos’ technical expertise. The luminaire provides direct and indirect lighting. Greater Up or Down intensity can be controlled through the dedicated touch buttons featured in the stem. The lamp is dimmable via wireless (by Casambi) and also offers the possibility to adjust colour temperature from 2700K to 5000K. Touch panel control on the lamp's arm features: 1: Switching and dimming function 2: Light emission control (direct only / indirect only / all together) 3: CCT control (27>50K) – 4 steps 27K-30K-40K-50K or linear change with continuous press 4: Adaptive eco mode ( lux sensor to keep constant lighting levels on the workplan – 500lx). Control management compatible with digital systems (Push dim, DALI, CASAMBI). Up to 10mt distance from the lamp for remote Bluetooth control. Possibility of wiring from a light point or through an IEC plug. Tunable White range: 2700K – 5000K CRI 90.

82W - 2700-5000K - CRI> 90

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Wall-Black_Flag_Pro
Main specifications
EAN
8059607068915
Mounting
Wall
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
82
Schematic light drawing
35317_ASS-ASTA-SUPERIORE-UP-DOWN_FLAG
Photometric
Lighting type
Indirect, Direct
CCT (K)
2700-5000
CRI>
90
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
120
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable
Dimming interface
Dimmer Integrated
Physical
Color
Matte Black
Canopy color
Black
Canopy lenght/diameter (in)
47.244
Canopy width (in)
1.693
Canopy height (in)
1.693
Net weight (lb)
39.68
Package volume (in)
4974.67
IP internal
20
RETILAP
Canada & USA
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

REPLACEABLE4 Replaceable (LED only) light source by an end-user

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

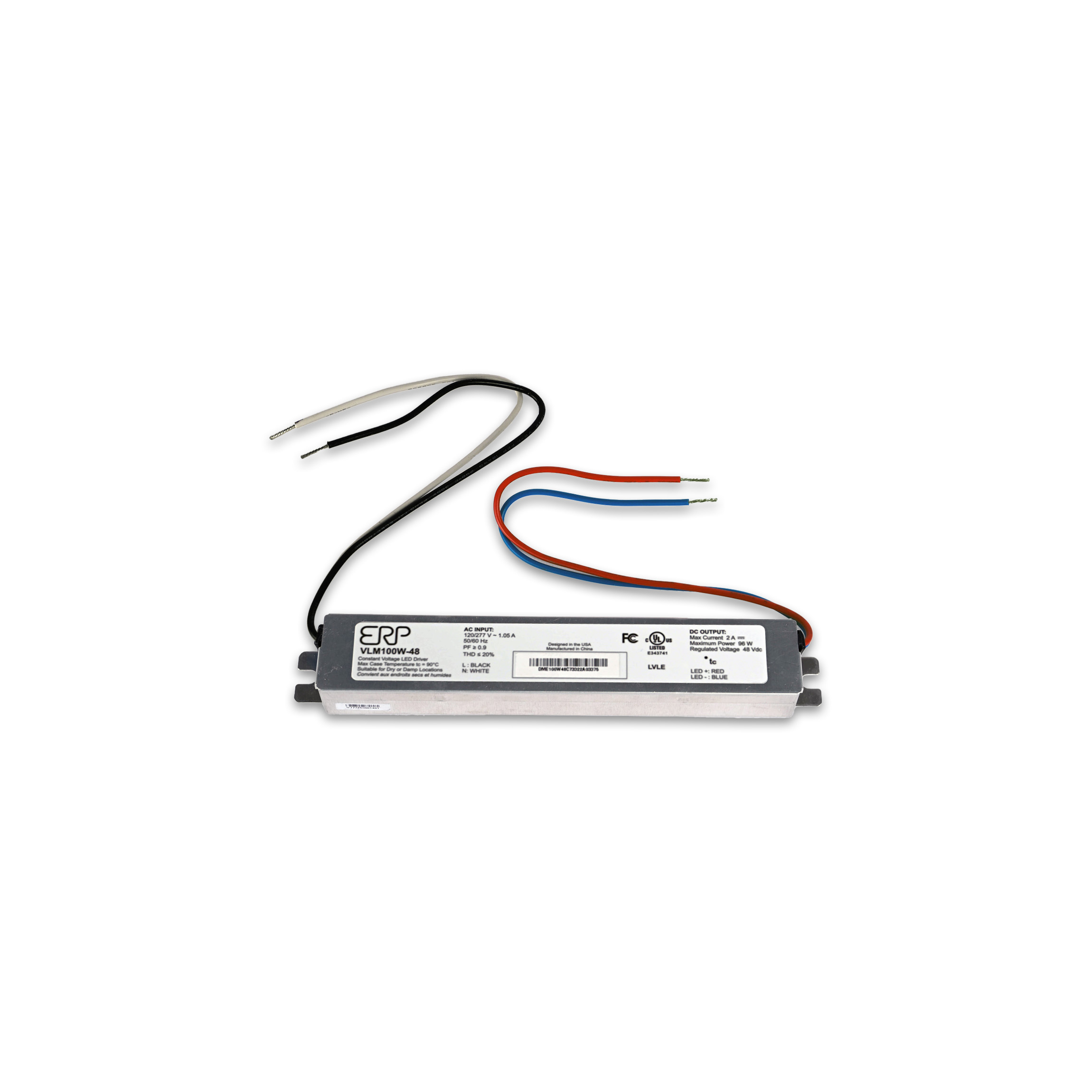

01. Led power supply 100W-48 120-277V 48V 96W
RF35622
03. Black Flag Pro up stripe assembly
RF35291
04. Black Flag Pro down 2700-5000°K stripe assembly
RF37995
