C1
03.1247.DYB Matte White
C1 Double Spot Wall Large Ø 56
Upgrade
Designed by Vincent Van Duysen, 2020

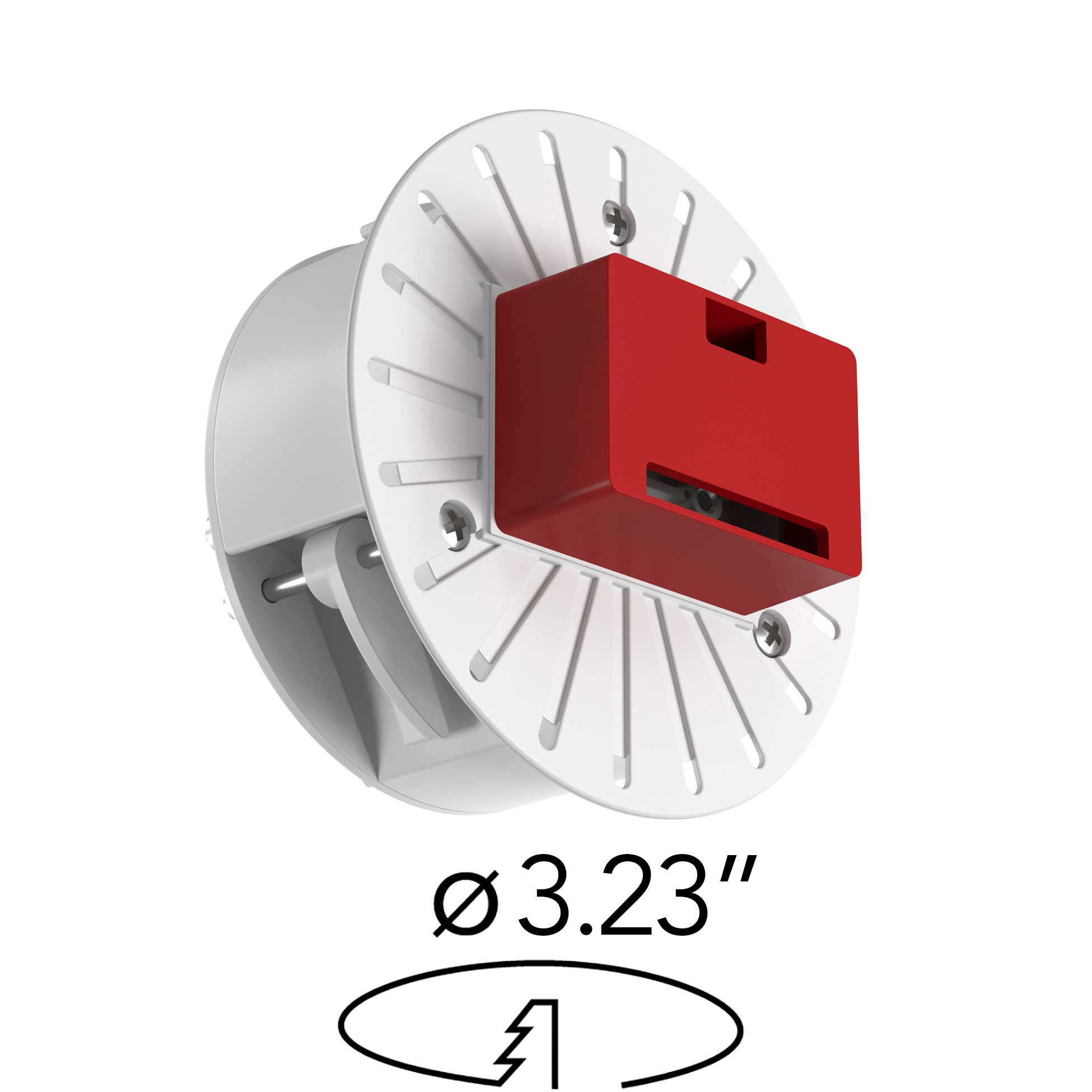

Adjustable luminaire with LED for indoor use, suitable for wall installation. The body can be extracted from the installation surface for 60º orientation on the vertical axis and 180º on the horizontal axis. Integrated Full cut-off optical group. The remote power supply (not included) must be placed in an accessible location. The installation frame must be ordered .separately.
28W - 2150lm - 3000K - CRI> 90 - Beam° 34
Technical Drawing
Main specifications
Mounting
Wall surface
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Power LED
Power (W)
28
Source flux (lm)
2799
System flux (lm)
2150
Schematic light drawing
Photometric
Lighting type
Indirect, Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Rf fidelity index
91
Rg gamut index
98
LED Life / Failure Ratio
L80B20 >36.000h (Tc=85ºC)
Beam angle C0-180 (º)
34
Beam angle C90-270 (º)
34
Electrical
Insulation class
III
LED current (mA)
950-1200
Driver
Remote excluded
Dimmable
Yes
Physical
Color
Matte White
Orientation
Adjustable
Rotation (º)
180
Longitudinal tilting (°)
60
IP internal
20
Notes
Photometric data without up diffuser.
Replaceable (LED only) light source by a professional
