Captain Flint
F1530030 Anthracite/Black Marble

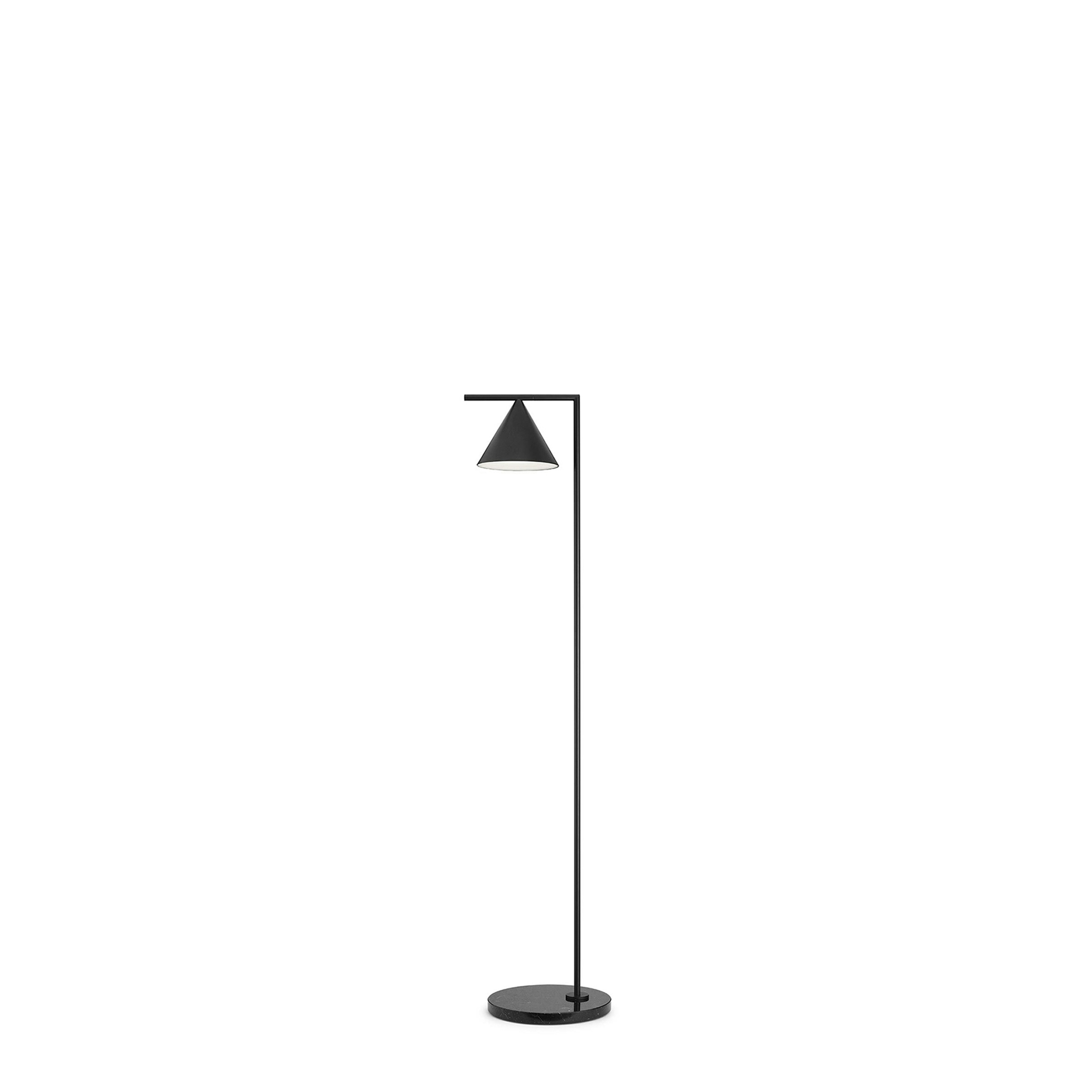

Captain Flint

Sleek and graceful, Captain Flint is a versatile floor lamp features smart details from head to toe. Designed in 2015 by Michael Anastassiades, this dual purpose floor lamp converts either to a reading or ambiance light. Discover the Captain Flint outdoor/indoor version, see here. Lamp Features: At the top, its spinning cone diffuser provides direct light that can be repositioned. On the base of this dimmable floor lamp, it is weighted by a stunning Italian white Carrara or black Marquina marble base which added a feeling of understated luxury. Its stem and cone are available in painted steel or brushed brass. The diffuser is opal photoengraved PC. Its power cord measures 102" long (260 cm) and features an ON-OFF foot dimmer switch. Dimming option: The light of this sleek floor lamp can be adjusted from 10-100%. The plug-in power supply includes with interchangeable plugs. This version is suitable for indoor use only. Inspiration behind the design: There's a duality to this finely balanced piece from designer Michael Anastassiades. "I wanted to design a light that was dual purpose," he says. "It is an up lighter, illuminating the space with ambient lighting, and its rotation also offers a dim companion for reading. There's a notion of balance, with a cone resting delicately on its point on a rotating rod."

20W - 554lm - 2700K

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Floor-Captain_Flint
Main specifications
EAN
8059607001431
Mounting
Floor
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED array
Power (W)
20
System flux (lm)
554
Schematic light drawing
F15300XXWCAPTAIN-FLINT_20W-LED
Photometric
Lighting type
Direct
Light distribution
Roto symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Remote included
Dimmable
Yes
Dimming type
Electronic 48V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Batteries inside
No
Physical
Color
Anthracite/Black Marble
Length (in)
12.6
Cord color
Black
Cord length (in)
98.425
Net weight (lb)
18.08
Package volume (in)
13620.55
IP internal
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
UKCA
Canada & USA
Risk 0
03 - Italy
20

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class D

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL3 Replaceable control gear by an end-user

Spare Parts

F1530030-captainflint-flos-boom
01. Captain Flint Black marble base
F1532030
02. Black plug assembly kit & 48V driver
RF6600130
03. Captain Flint Switch dimmer 400Ma
RF26382
04. Captain Flint Screws with allen key and feet pads
RF1530100
