Clessidra
FU158309 White

Clessidra 20°+20°

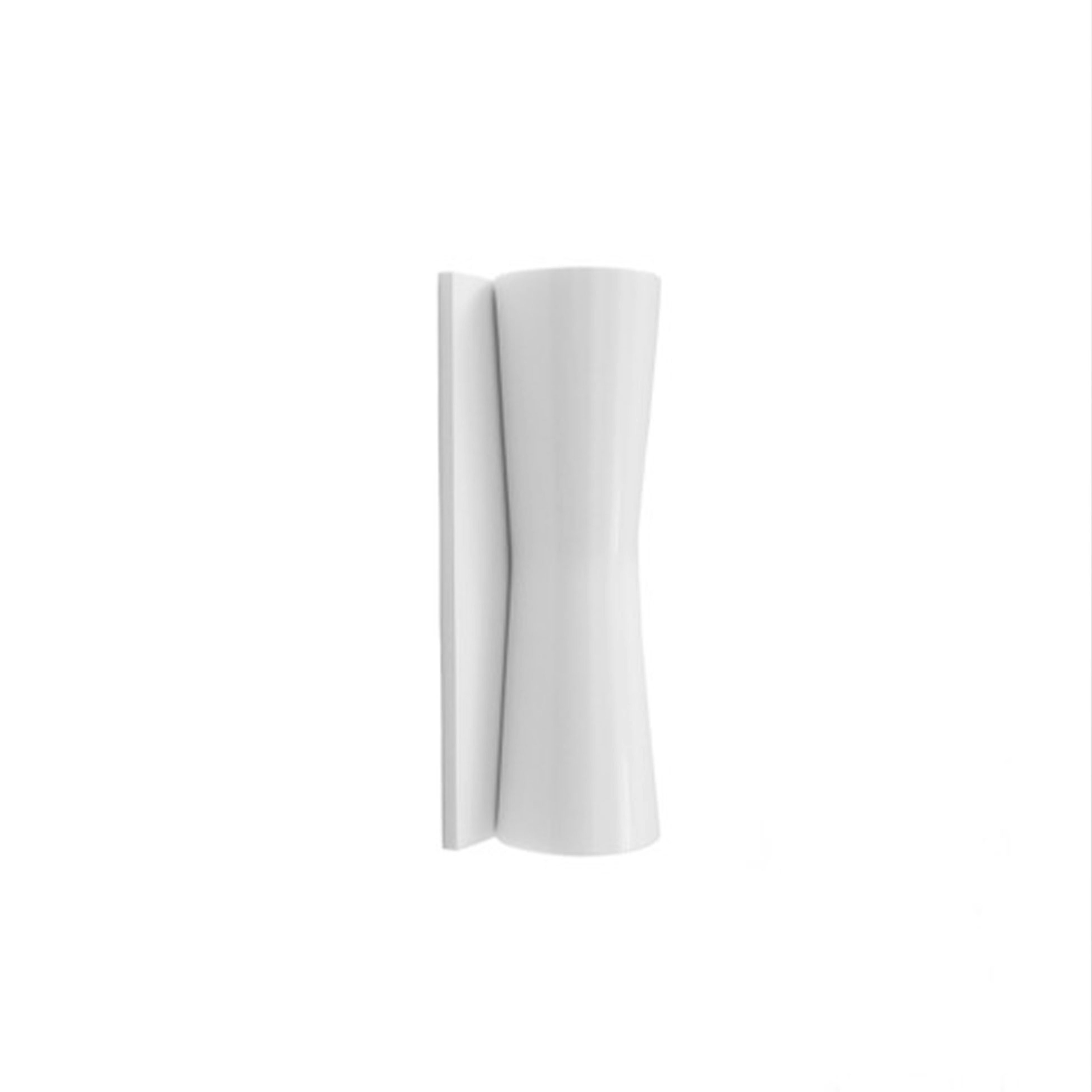

Inspired by the shape of the hourglass, the Clessidra lamp from Antonio Citterio emits diffused direct and indirect light. This stunning wall light has a body made of die-cast aluminum with a powder-coated finish and a diffuser in PMMA (Polymethyl methacrylate). There is an aluminum wall attachment. The cover is in PA66. The fixture has a moisture rating of IP55. A back-plate* with a brown finish is included to cover the junction box. Clessidra also has non-replaceable, specially designed high-efficiency lenses. Clessidra is an elegant option for illuminating hallways and outdoor spaces. It features an LED light source, and the fixture is non-dimmable. The Clessidra outdoor wall light is available in two beam spreads:• Outdoor: 20 + 20; Outdoor: 40 + 40Choose from two finishes, anthracite or dark brown. This wall light is also available as an indoor fixture with different finishes. *Back plate not shown in the image.

10W - 637lm - 3000K

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Wall-Clessidra
Main specifications
EAN
8059607010709
Mounting
Wall
Environments
Indoor wet location
Light Source Type
LED
Light sources included
Yes
LED type
LED array
Power (W)
10
System flux (lm)
637
Schematic light drawing
F15830XXWCLESSIDRA-20_10W-LED
Photometric
Lighting type
Indirect, Direct
Light distribution
Symmetric
CCT (K)
3000
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Integrated
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Batteries inside
No
Physical
Color
White
Length (in)
2.99
Net weight (lb)
2.42
Package volume (in)
302.68
IP internal
55
UL
RETILAP
Notes

Compliance: ADA

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

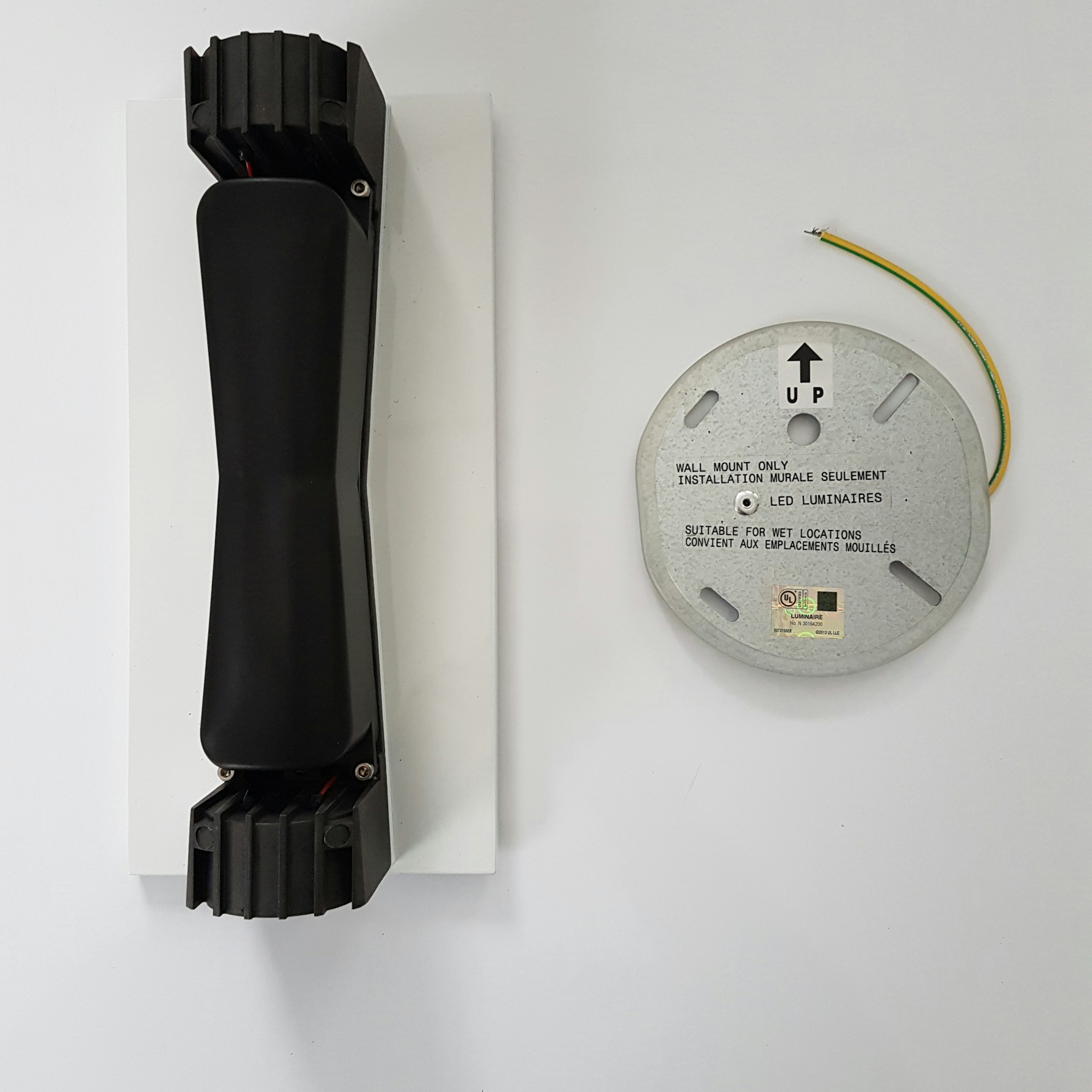

01. Clessidra 20 Ul Wall Attachment White Polish
FU158109
02. White external clessidra lamp body
F1580009
03. Screws and tool kit for clessidra external lamp body
RF1580100
