FU186233ArgentCoordinates Suspension 2
Designed by Michael Anastassiades, 2020

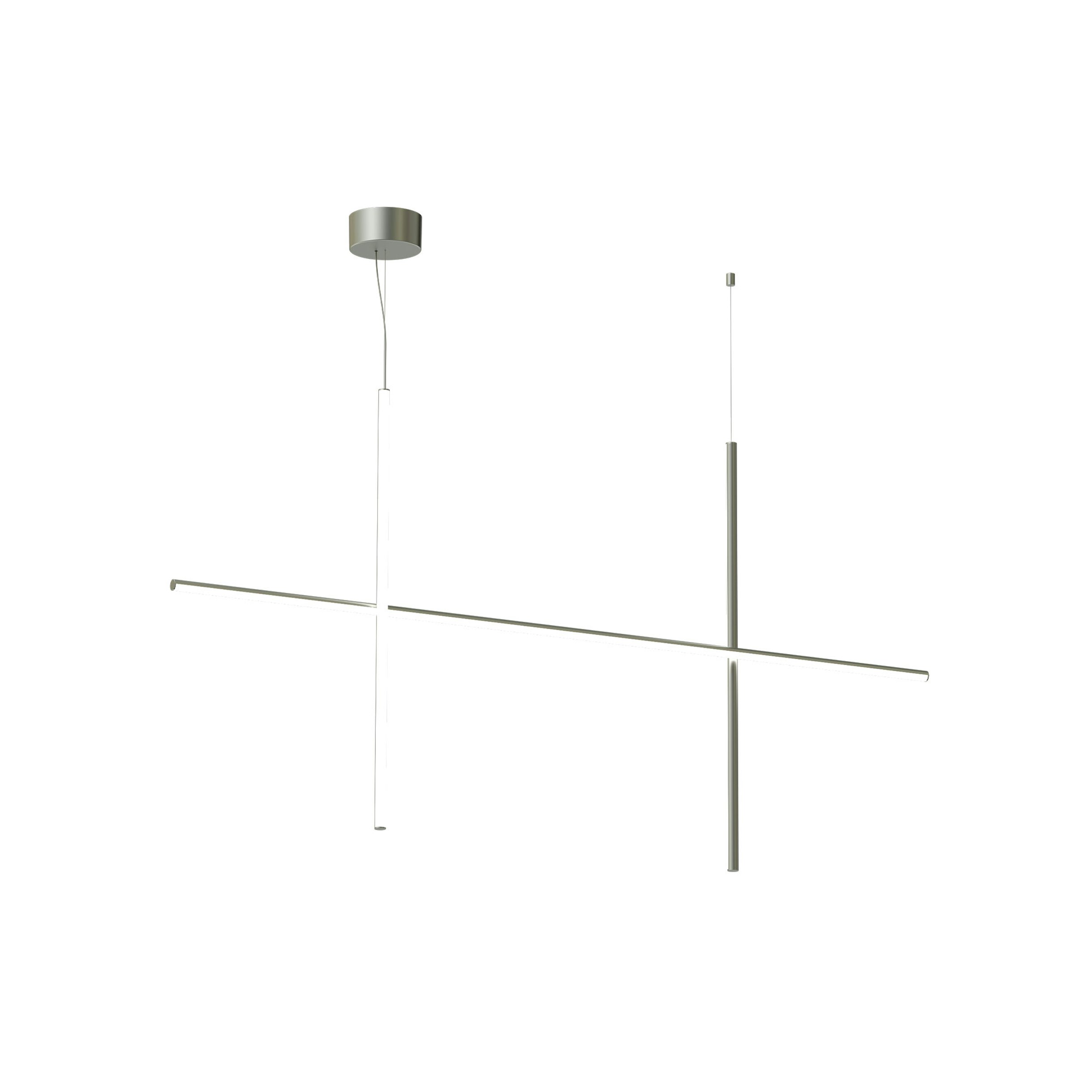

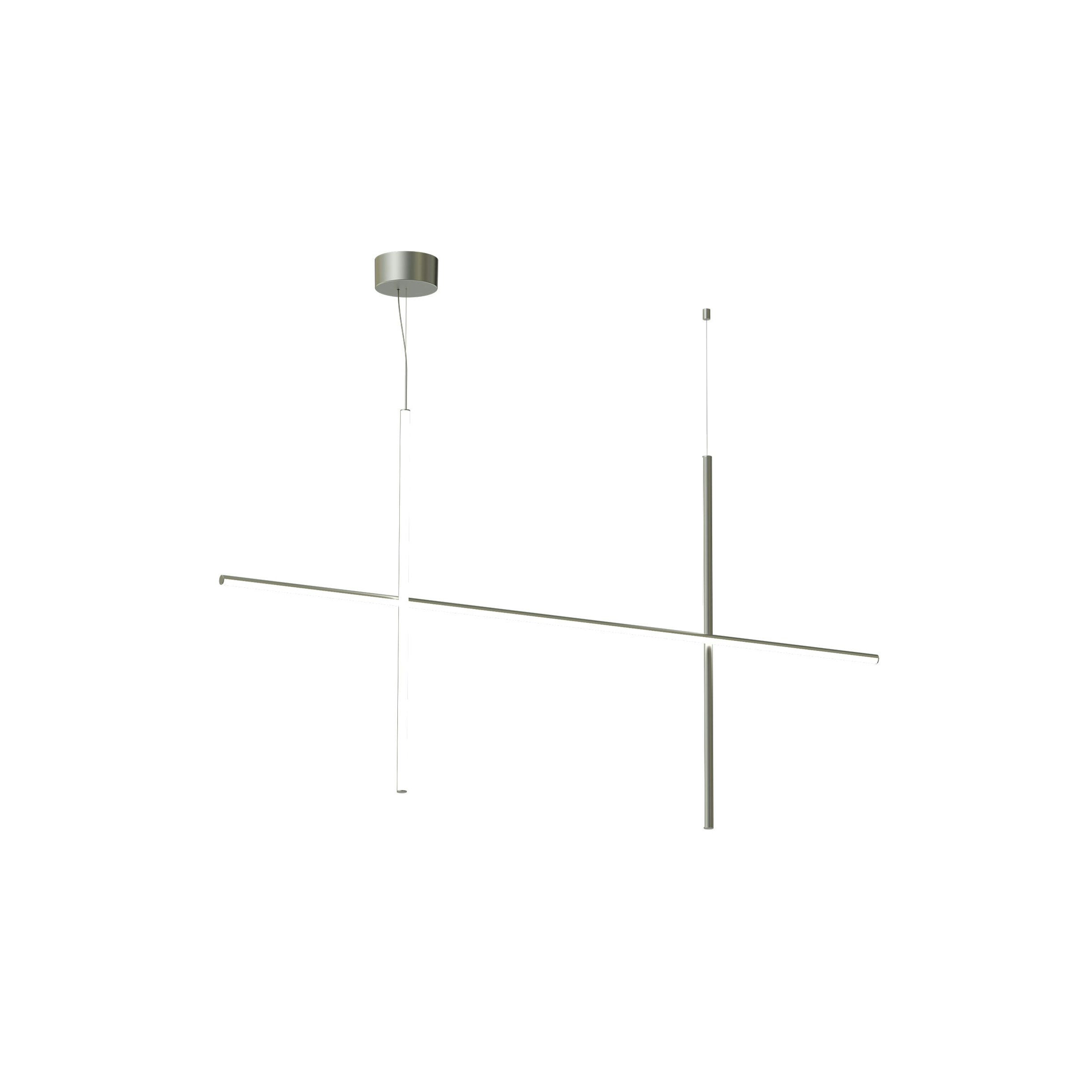

Suspension lighting system emitting diffused light. Composed of horizontal and vertical luminaires arranged in a grid. Elements made of extruded anodised aluminium with a platinum optical silicone diffuser housing an integrated LED strip. Invisible electrical and mechanical connection with 2.4 m cables. Each configuration includes a ceiling rose with integrated electronics for push, 1–10 V or DALI dimming.
55W - 2960lm - 2700K - CRI> 95
Technical Drawing
Main specifications
EAN
8059607038413
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
55
System flux (lm)
2960
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable 0-10V, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
Argent
Length (in)
69.29
Cord color
Black
Cord length (in)
94.488
Canopy color
Argent
Canopy height (in)
2.795
Net weight (lb)
5.95
Gross weight (lb)
11.9
Package volume (in)
1748.21
IP internal
20
Accessories & Power Supply
Spare Parts
01. Power supply kit for Arrangements small & Noctambule
RF0410500
02. Led dimmer kit
RF35452
03. Assembly Rose for Coordinates Suspension Argent
RF1872133
05. Coordinates Suspension 2 Rod Assembly 1760 H-21 Argent
RF30929
06. Coordinates Suspension 2 Rod Assembly L920 S-20 Argent
RF30928
