FU185444 Anodized Champagne

Coordinates Suspension 4

Suspension lighting system emitting diffused light. Composed of horizontal and vertical luminaires arranged in a grid. Elements made of extruded anodised aluminium with a platinum optical silicone diffuser housing an integrated LED strip. Invisible electrical and mechanical connection with 2.4 m cables. Each configuration includes a ceiling rose with integrated electronics for push, 1–10 V or DALI dimming.

Designed by Michael Anastassiades, Coordinates Suspension translates the collection’s illuminated grid into a series of suspended compositions. Evolving from a commission for the historic Four Seasons restaurant in New York, Coordinates takes inspiration from the Cartesian grid, translating pure mathematical precision into light. Its modular, scalable system allows configurations ranging from minimal arrangements to complex installations. Elegant, imposing and expressive, it brings geometry to life within any space.

161W - 8830lm - 2700K - CRI> 95

Find a Flos store
Request a quote
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Suspension-Coordinates-4
Main specifications
EAN
8059607034354
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
161
System flux (lm)
8830
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable 0-10V, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
Anodized Champagne
Length (in)
69.68
Cord color
Black
Cord length (in)
94.488
Canopy color
Anodized Champagne
Canopy height (in)
3.740
Net weight (lb)
17.42
Gross weight (lb)
31.97
Package volume (in)
3827.42
IP internal
20
UL
RETILAP
Gwt 850 (º)
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

ULD

Technical Drawings

3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Accessories & Power Supply

Optional (1)

Spare Parts

FU185444-coordinates-suspension-4-flos-boom
01. Coordinates S Assembly Big Rose Anodized Champagne
RF1873144
02. Led dimmer kit
RF35452

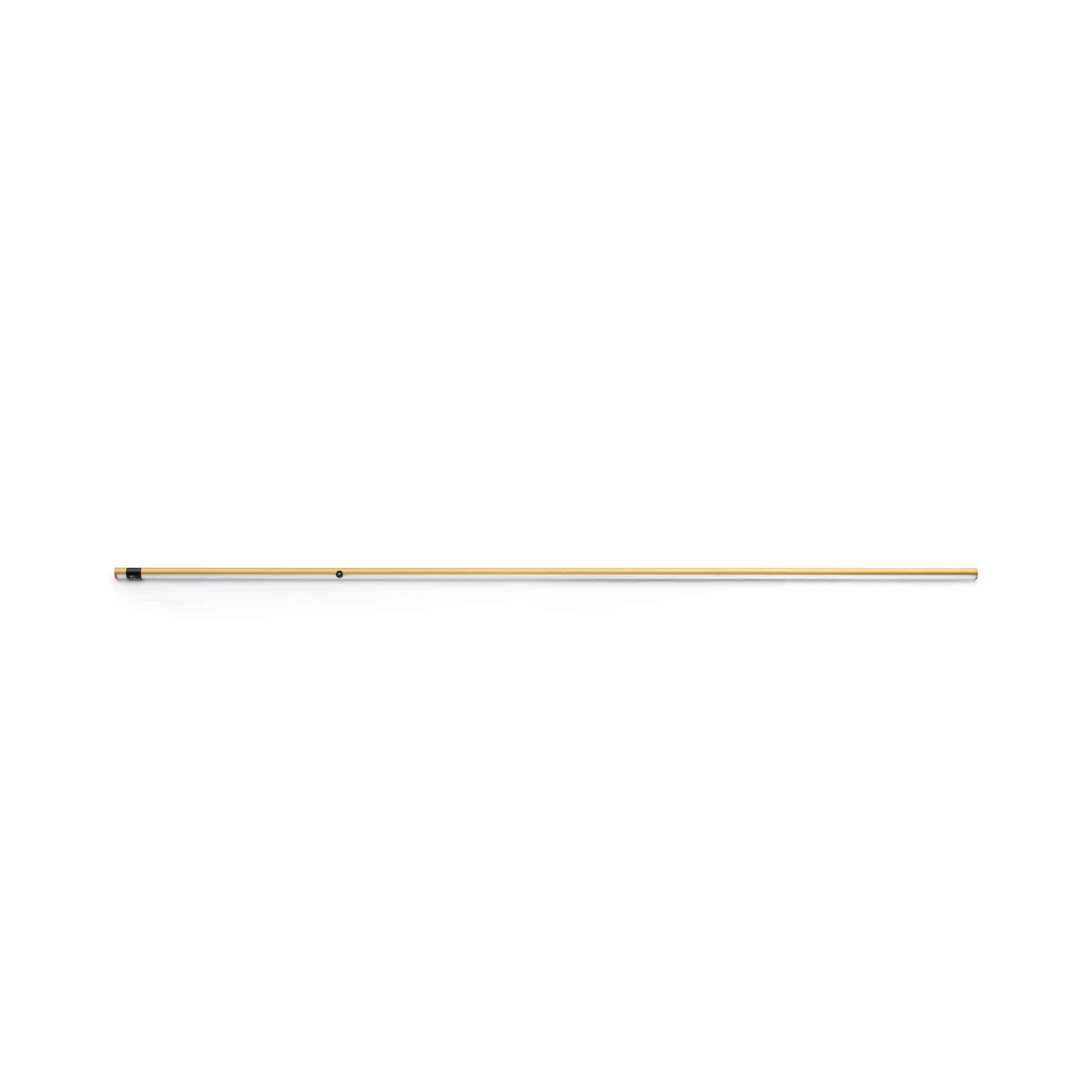

03. Coordinates Rod Assembly L1760 H-11 Anodized Champagne
RF30985

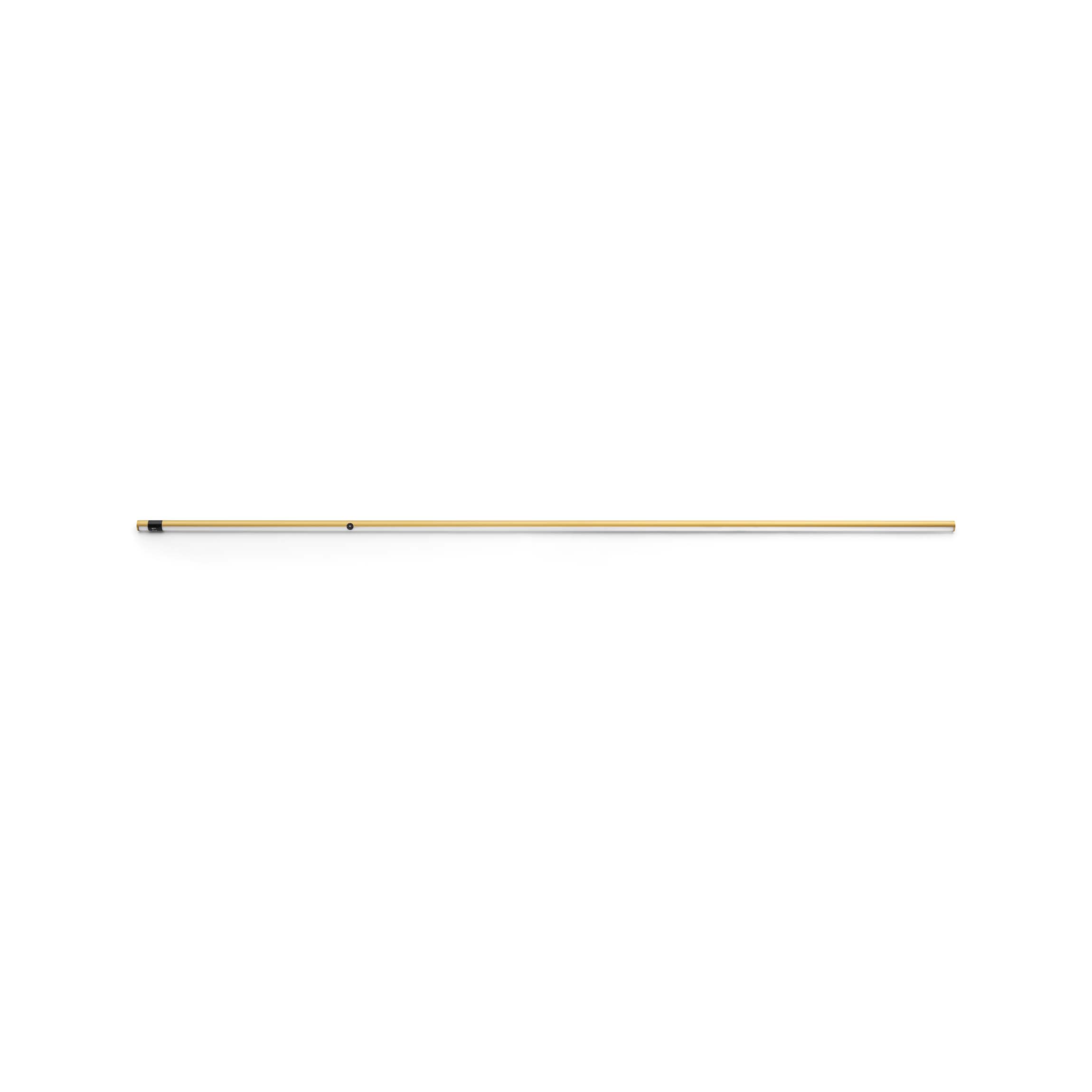

04. Coordinates Rod Assembly L1760 H-10 Anodized Champagne
RF30984
05. Coordinates Suspension 4 Rod Assembly L920 S-14 Anodized Champagne
RF30983
06. Coordinates Suspension 4 Rod Assembly L920 S-13 Champagne
RF30982
07. Coordinates Suspension 4 Rod Assembly L920 SA-50 Anodized Champagne
RF30267
