Coordinates
FU181033 Argent

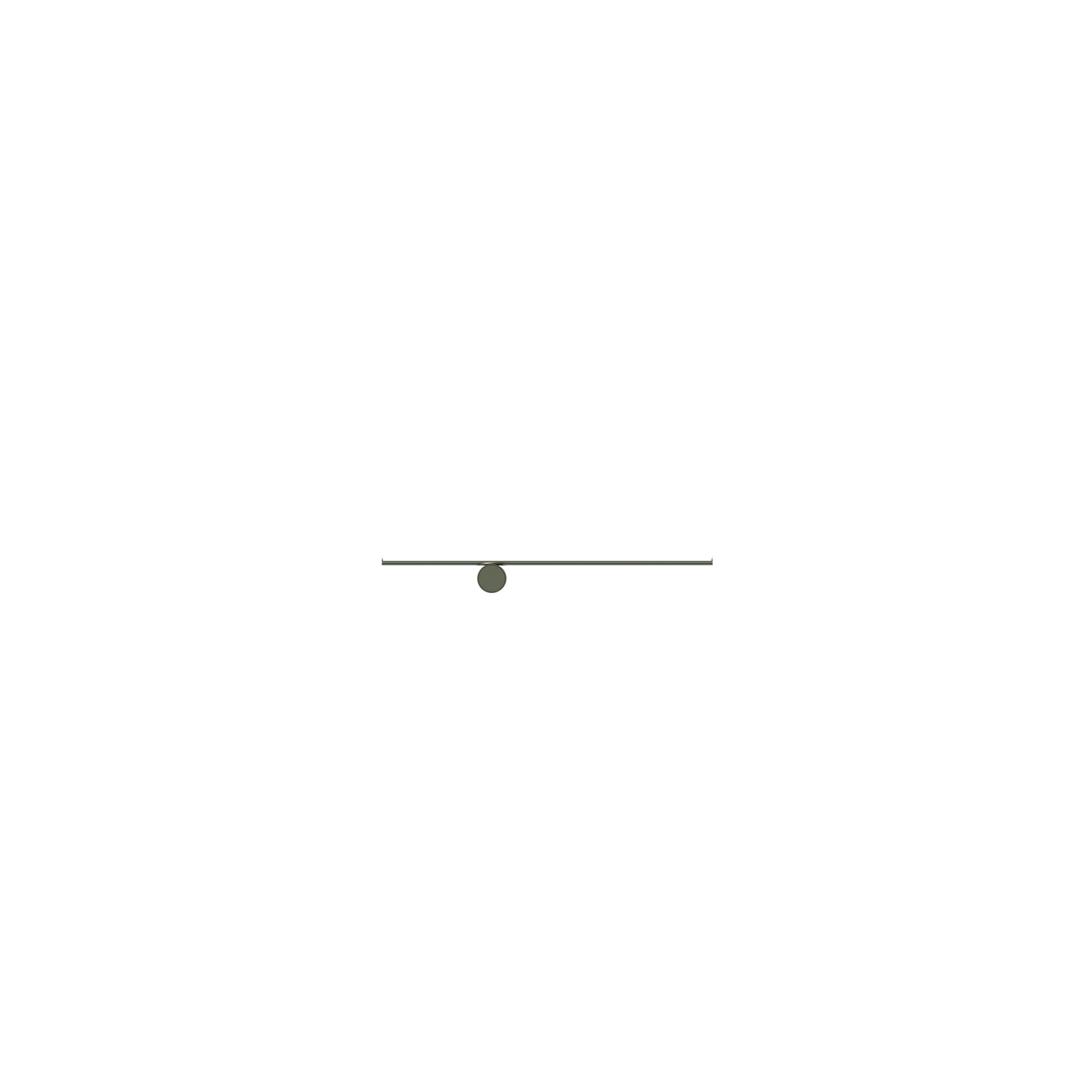

Coordinates Wall 1

Coordinates is a lighting system consisting of horizontal and vertical strip lights that form illuminated grid-like structures of various complexities. This collection of standard chandeliers of pared-down configurations that can be used in any setting. Newly added to the Coordinates collection: Wall-mounted sconces providing diffused light by composed of a horizontal bar (Wall 1) or vertical and horizontal bar (Wall 2). Each bar is composed of: extruded and processed aluminium body anodized in a champagne color; diffuser in platinum optical silicone; integrated LED strip (CRI 90). Behind the design: This design evolved from a commission for the feature lighting of the main dining area of the historic Four Seasons restaurant in New York City. The restaurant relocated and opened in 2018 with the interiors designed by São Paolo-based architect Isay Weinfeld.

18W - 961lm - 2700K - CRI> 90

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Wall-Coordinates-1
Main specifications
EAN
8059607038741
Mounting
Wall
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
18
System power (W)
18
System flux (lm)
961
Photometric
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
120
Driver
Integrated
Dimmable
Yes
Dimming type
Mains Cut Dimming
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
Argent
Length (in)
3.94
Net weight (lb)
2.54
Gross weight (lb)
6.28
Package height (in)
11.42
Package width (in)
5.71
Package length (in)
35.04
Package volume (in)
2283.52
IP internal
20
UL
RETILAP

Download

Tech spec pdf
Mounting instructions
Dimmers or chargers compatible

Photometric Files

ULD

Technical Drawings

3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional
