IC Lights
FU315759Brass

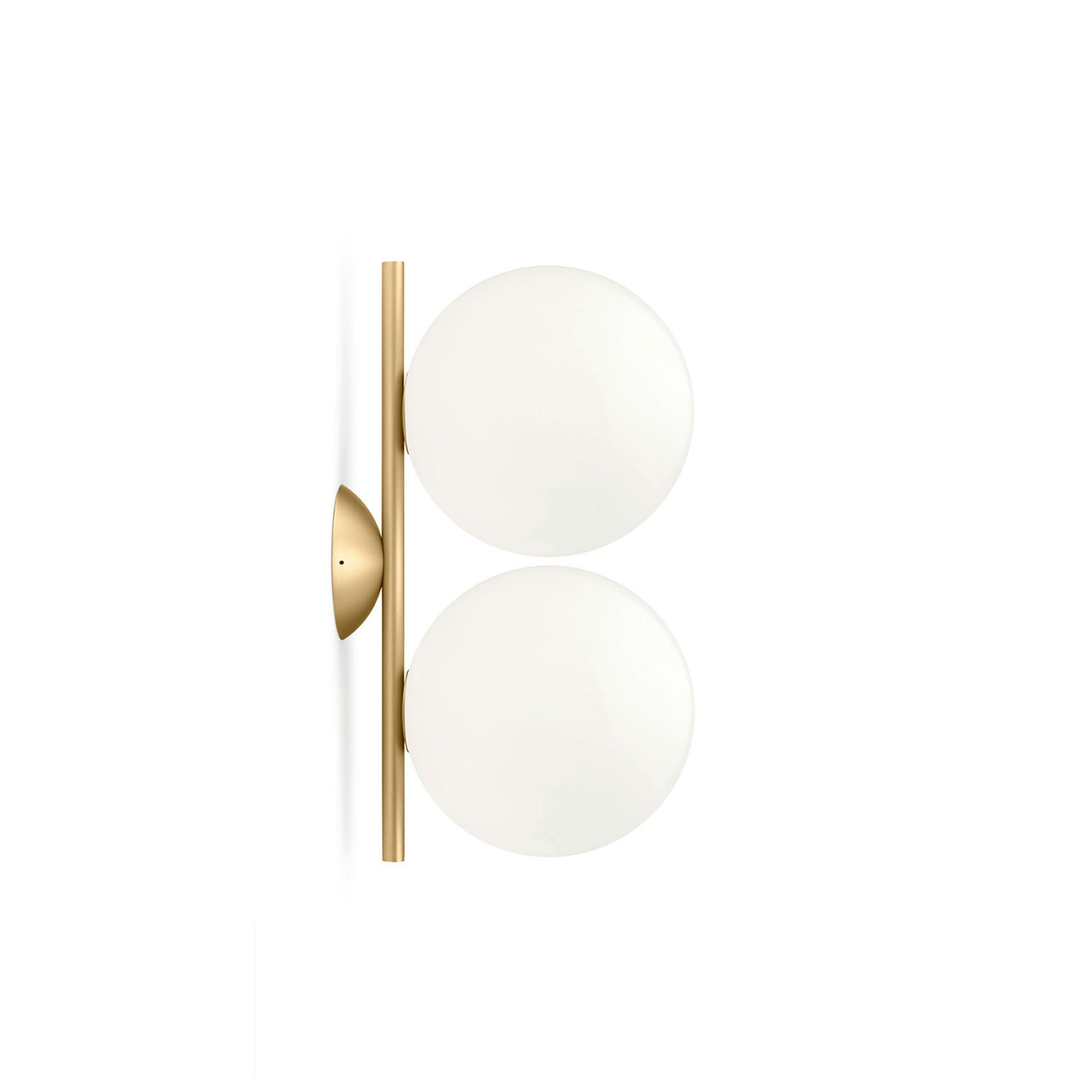

IC Lights C/W1 Double

Wall or ceiling-mounted lamp emitting diffused light. Features a metal frame available in brushed and transparent varnished brass, chrome-plated steel or black, with two blown opal glass diffusers.

Halogen - 2 x 75W

Find a Flos store
Request a quote
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Ceiling_Wall-IC_Lights-CW1_Double
Main specifications
EAN
8059607030646
Mounting
Ceiling, Wall
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp type
T4
Lamp holders
G9
Number of lamps
2
Power (W)
75
Schematic light drawing
F31560_2X60W_HL_IC_CW1_DOUBLE
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
Brass
Length (in)
9.65
Net weight (lb)
5.51
Gross weight (lb)
10.36
Package volume (in)
3564.9
IP internal
20
UL
RETILAP
20
IK07 - 2.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Bulbs

x2
NOT INCLUDEDLED lamp G9 5W 100-130V 2700KRF34658

Spare Parts

F3157030-ic-cw1-double-flos-boom
01. IC Lights 1 diffuser for brass version
F3136059
02. Kit with screws and allen key
RF3160100
Thumbnail
x1
IC Lights 1 diffuser for brass versionF3136059
Thumbnail
x1
Kit with screws and allen keyRF3160100
