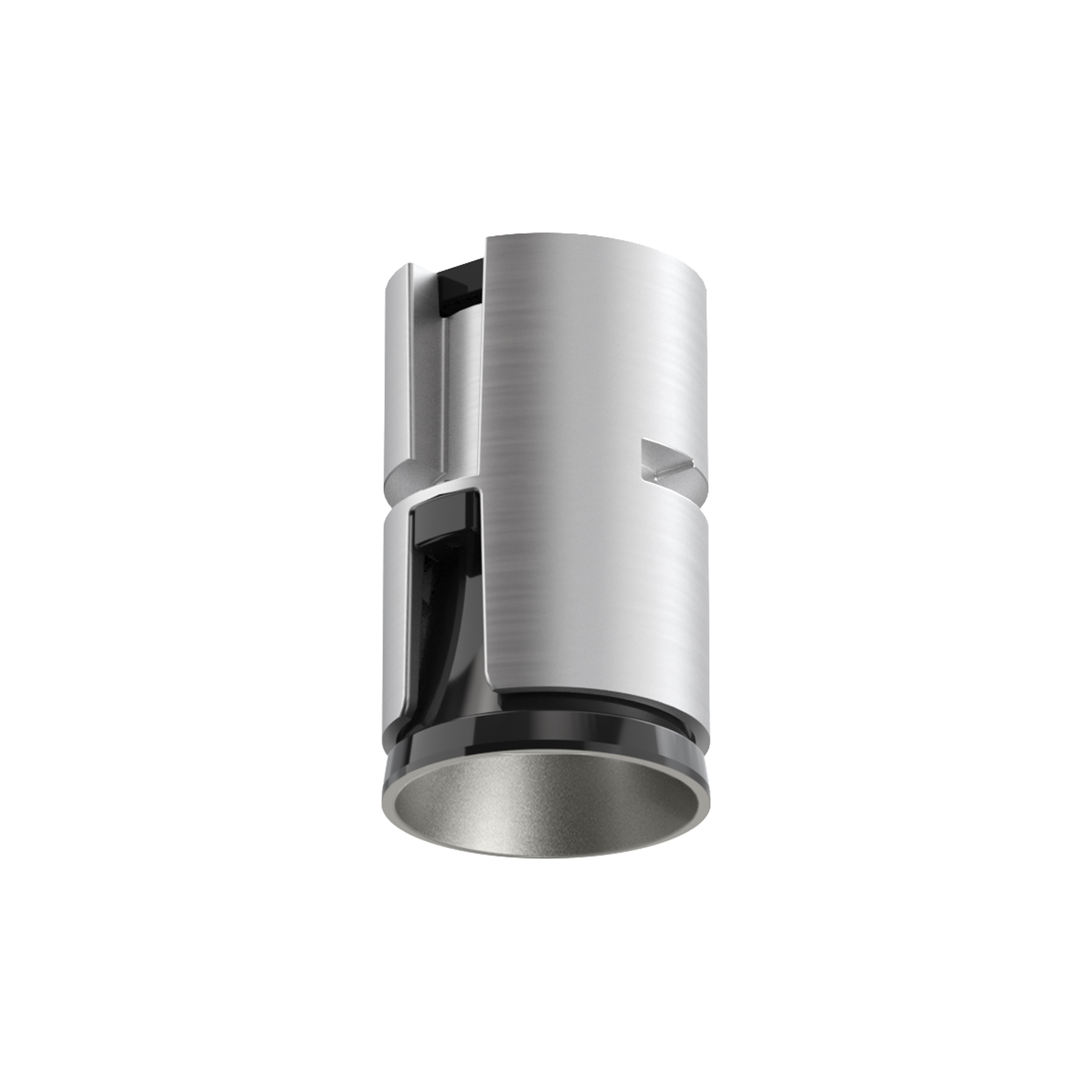

03.8602.ERA9S SteelLight Shadow Dots - Single Spot Module. Set of 1 Spot
Designed by FLOS Architectural, 2019
LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Available in one-light versions and groups of two and four lights. Driver not included, the driver has to be directly connected to the embedding frames.
LED - Power LED - 1.8W - 150lm - 2700K - CRI> 90 - Beam° 27
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
1.8
Source flux (lm)
270
System flux (lm)
150
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
LED Life / Failure Ratio
L80B50>50.000h (Tc=85ºC)
Beam angle C0-180 (º)
27
Beam angle C90-270 (º)
27
UGRL
<10
Electrical
Forward voltage (V)
6
LED current (mA)
600
Driver
Remote
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Color
Steel
Orientation
Fixed
Net weight (lb)
0.11
Gross weight (lb)
0.19
Package height (in)
0.29
Package volume (in)
0
IP internal
20
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
