Light Shadow

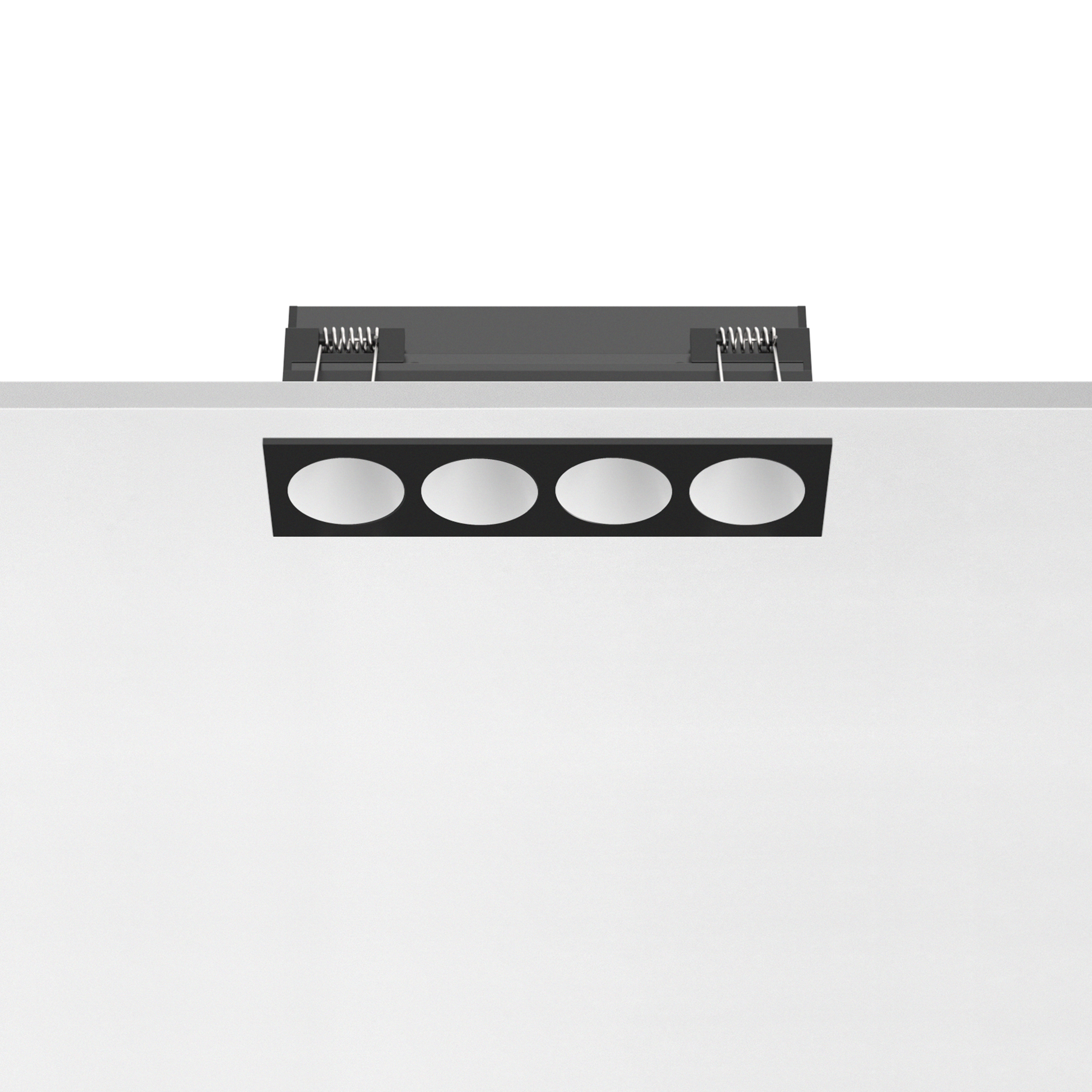

03.9135.14CUQBlack/WhiteLight Shadow Fixed Trim 4 Spots Optic Flood - Non IC
Designed by FLOS Architectural, 2022
Recessed integrated luminaire with 4 LED lighting spots. Remote power supply.
LED - Power LED - 10.8W - 1098lm - 3000K - CRI> 90 - Beam° 29
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
10.8
System power (W)
10.8
Source flux (lm)
1272
System flux (lm)
1098
Efficacy (lm/W)
101
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
LED Life / Failure Ratio
L80B10 > 50.000h
Beam angle C0-180 (º)
29
Beam angle C90-270 (º)
28
Extreme cut off
No
UGRL
<10
Electrical
Forward voltage (V)
12
LED current (mA)
900
Driver
Integral - Splice Box
Dimmable
Yes
Dimming type
Dimmable 0-10V, Dimmable ELV
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Color
Black/White
Trim
Yes
Orientation
Fixed
IP internal
20
IP external
55
Notes
Pre-Installation frame not required.
