03.9981.14.QS Black
Light Shadow Pro Ø 90 Adjustable Optic Spot- Non IC - Quick Ship
New
Designed by FLOS Architectural, 2020
LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included.
LED - LED array - 14.8W - 1316lm - 2700K - CRI> 90 - Beam° 16

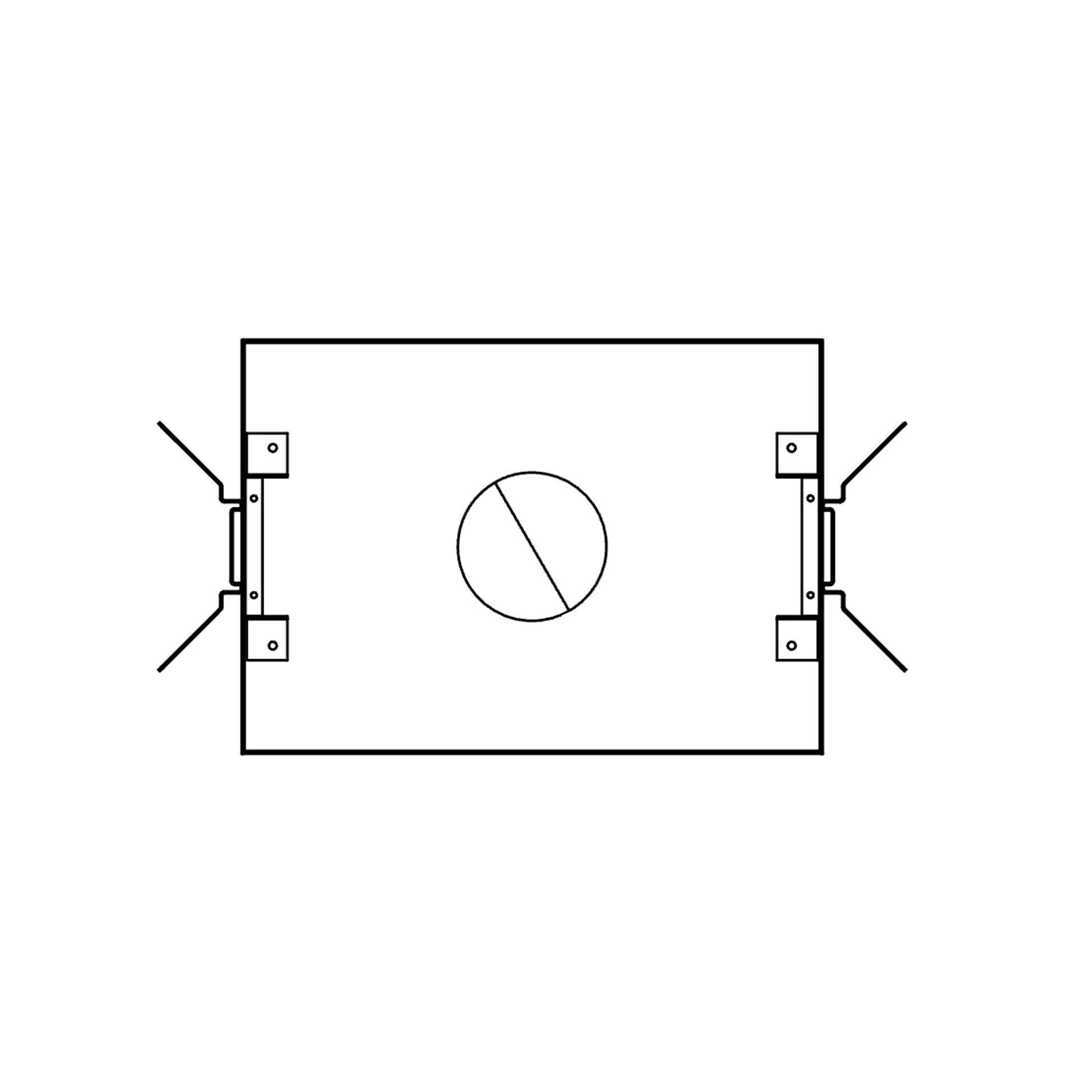

Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
14.8
Source flux (lm)
1636
System flux (lm)
1316
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
2
LED Life / Failure Ratio
L70B40 >50.000h (Tc=85ºC)
Beam angle C0-180 (º)
16
Beam angle C90-270 (º)
16
Extreme cut off
No
UGRL
<10
Electrical
Forward voltage (V)
37
LED current (mA)
400
Driver
Remote excluded
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Color
Black
Orientation
Adjustable
Rotation (º)
355
Longitudinal tilting (°)
35
Transversal tilting (°)
35
Length (in)
3.55
Net weight (lb)
0.53
Package height (in)
6.19
Package width (in)
8.27
Package length (in)
5.32
Package volume (in)
62
IP internal
20
IP external
54
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
