03.9891.ES.UQ BronzeLight Shadow Pro Ø 90 Wall-Washer - Non IC
Designed by FLOS Architectural
LED lighting module, with wall washer optic, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included.
LED - LED array - 14.8W - 1159lm - 3000K - CRI> 90 - Beam° 23
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
14.8
Source flux (lm)
1710
System flux (lm)
1159
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
2
LED Life / Failure Ratio
L70B40 >50.000h (Tc=85ºC)
Beam angle C0-180 (º)
23
Beam angle C90-270 (º)
23
UGRL
<19
Electrical
Forward voltage (V)
74
LED current (mA)
400
Driver

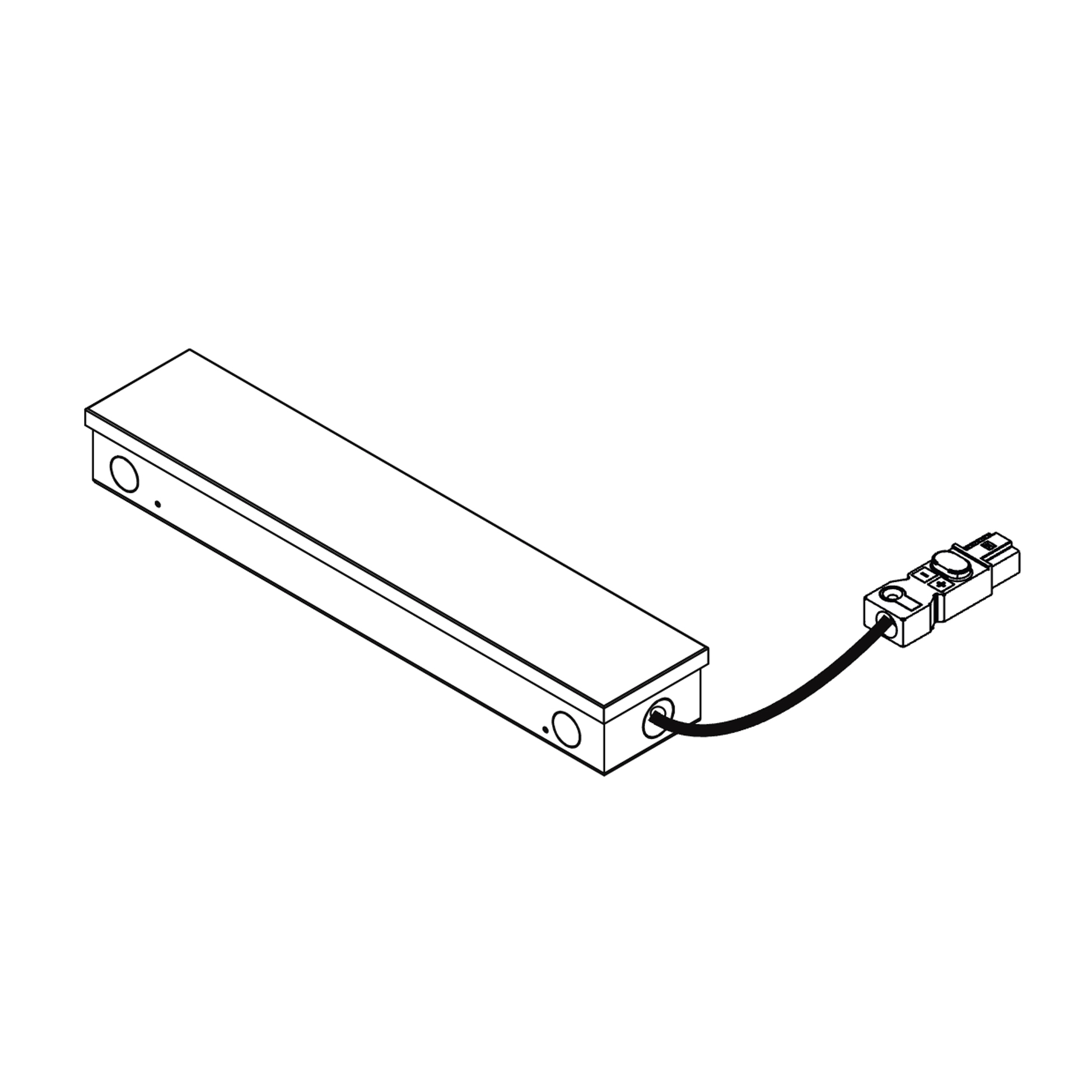

Attached Splice Box
Dimmable
Yes
Dimming type
Dimmable
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Color
Bronze
Orientation
Directional
Net weight (lb)
0.89
Package volume (in)
427.14
IP internal
20
IP external
54
Notes
Class 2 Listed.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
