The Tracking MagnetInfra-Structure
05.9032.ER.DABrushed Steel

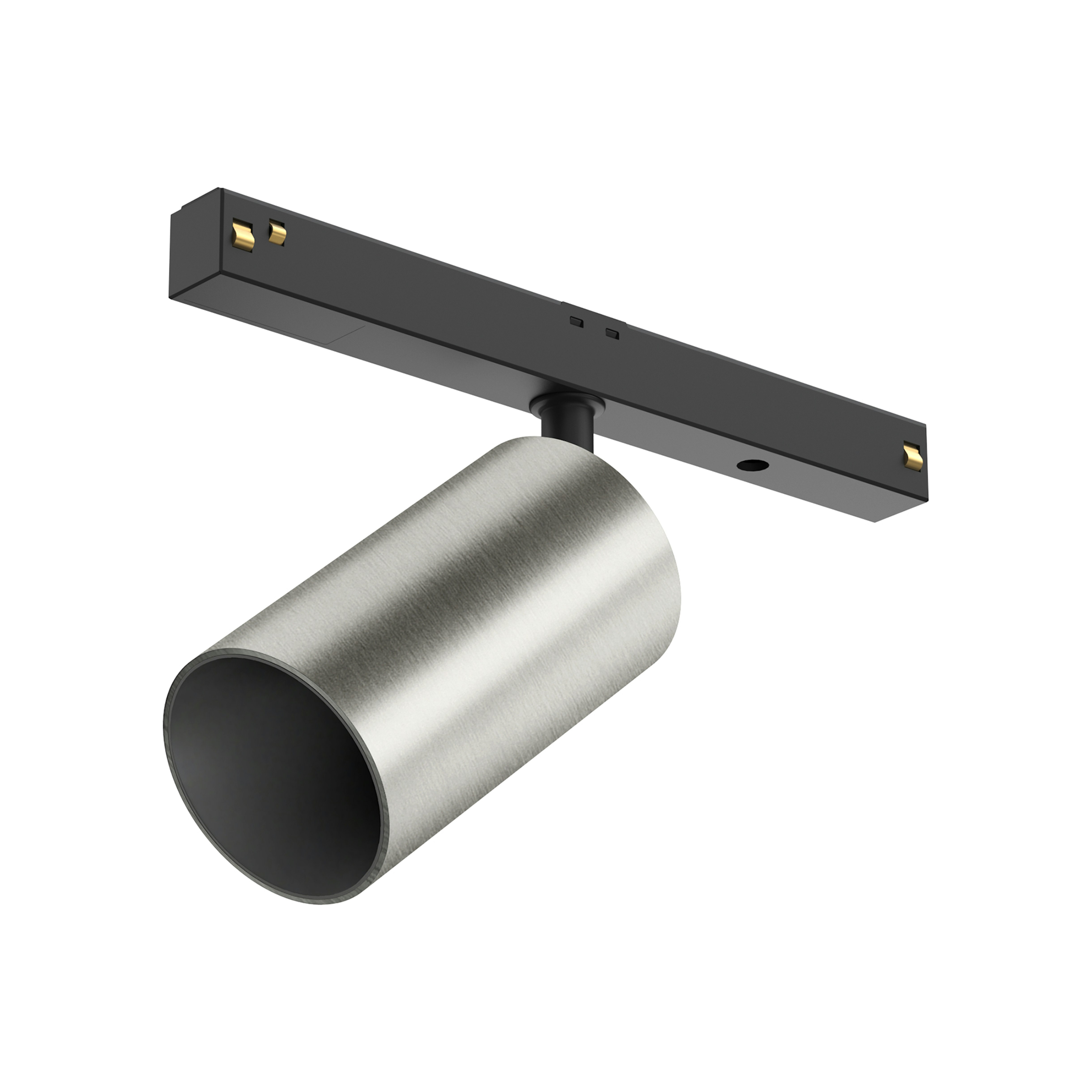

Light Shadow Spot 45 Dali Version

LED accent lighting module for installation in The Tracking Magnet or Infra-Structure systems. For wireless control of luminaires, please select Casambi integrated versions. Accessories available, (honeycomb and CCT dichroic filters).

10W - 646lm - 2700K - CRI> 90 - Beam° 31

Find a Flos store
Request a quote
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-System-Spots-Light_Shadow_Spot_45
Main specifications
Mounting
Track
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED array
Number of lamps
1
Power (W)
10
Source flux (lm)
799
System flux (lm)
646
Schematic light drawing
EU_05_9032_XX_XXW11
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Rf fidelity index
93
Rg gamut index
99
LED Life / Failure Ratio
L80B50>47.000h_Tc85ºC
Beam angle C0-180 (º)
31
Beam angle C90-270 (º)
31
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
48
LED current (mA)
250
Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable DALI 2
Dimming range (%)
1-100
Physical
Color
Brushed Steel
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (lb)
0.56
Gross weight (lb)
0.78
IP internal
20
CE
RG
UL
UKCA
Flammable Surface
Gwt 850 (º)
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

REPLACEABLE2

PWRSUPRPL2

Accessories & Power Supply

Optional(3)
