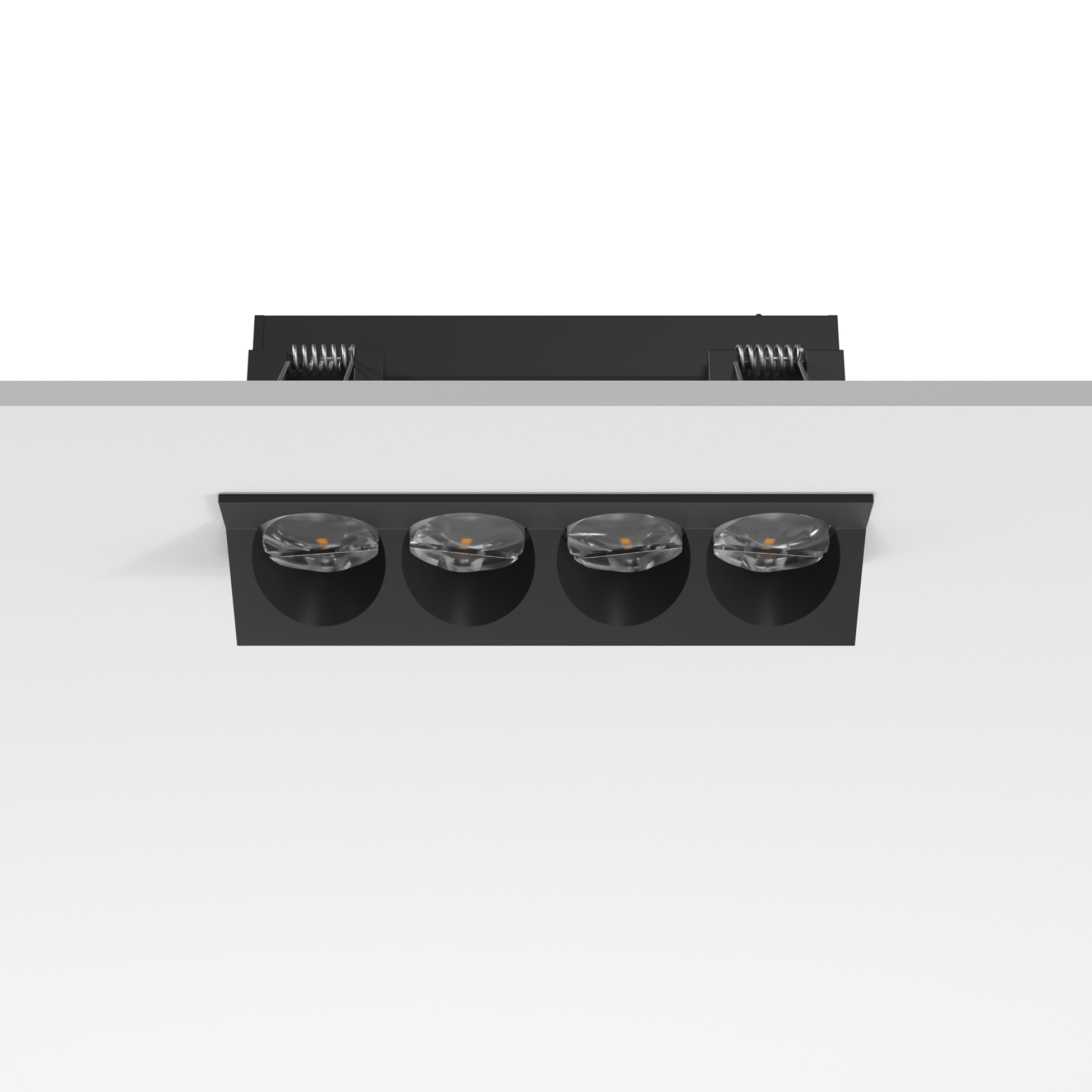

03.9901.14CUQBlackLight Shadow Wall Washer Trim 4 Spots - Non IC
Designed by FLOS Architectural, 2022
Recessed integrated luminaire with 4 LED lighting spots. Remote power supply included.
LED - Power LED - 10.8W - 801lm - 2700K - CRI> 90 - Beam° 24
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
10.8
System power (W)
10.8
Source flux (lm)
1176
System flux (lm)
801
Efficacy (lm/W)
74
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
LED Life / Failure Ratio
L80B20 >50.000h (Tc=85ºC)
Beam angle C0-180 (º)
24
Beam angle C90-270 (º)
43
Extreme cut off
No
UGRL
<10
Electrical
Forward voltage (V)
12
LED current (mA)
900
Driver
Integral - Splice Box
Dimmable
Yes
Dimming type
Dimmable 0-10V, Dimmable ELV
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Color
Black
Trim
Yes
Orientation
Fixed
IP internal
20
IP external
20
Notes
Pre-Installation frame not required.
