Luce Orizzontale
FU374500Glass

Luce Orizzontale S3

Suspension lamp emitting direct and indirect light. Composed of interconnected cylindrical poured glass modules with an internal structure in polished extruded aluminium housing two linear LED modules. Power supply unit and DALI dimmer integrated into the ceiling rose. Touch control button positioned at one end of the product with control options: TOUCH, PUSH & TOUCH, DALI & TOUCH. Dimming range 10–100%. LED modules are removable and replaceable for maintenance.

165W - 8018lm - 2700K - CRI> 95

Find a Flos store
Request a quote
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Suspension-Luce_Orizzontale-S3_1
Main specifications
EAN
8059607049983
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
165
System flux (lm)
8018
Photometric
Lighting type
Direct, Indirect
Light distribution
Symmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
LED current (mA)
700
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmer on board
Dimming interface
Dimmer Integrated
Physical
Color
Glass
Length (in)
97.95
Cord color
Clear
Cord length (in)
106.299
Canopy color
White
Canopy width (in)
2.402
Canopy height (in)
3.071
Net weight (lb)
89.84
Gross weight (lb)
115.96
Package volume (in)
15987.31
IP internal
20
UL
RETILAP
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

ULD

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2

PWRSUPRPL2

Spare Parts

FU374500-luce-orizzontale-S3-flos-boom

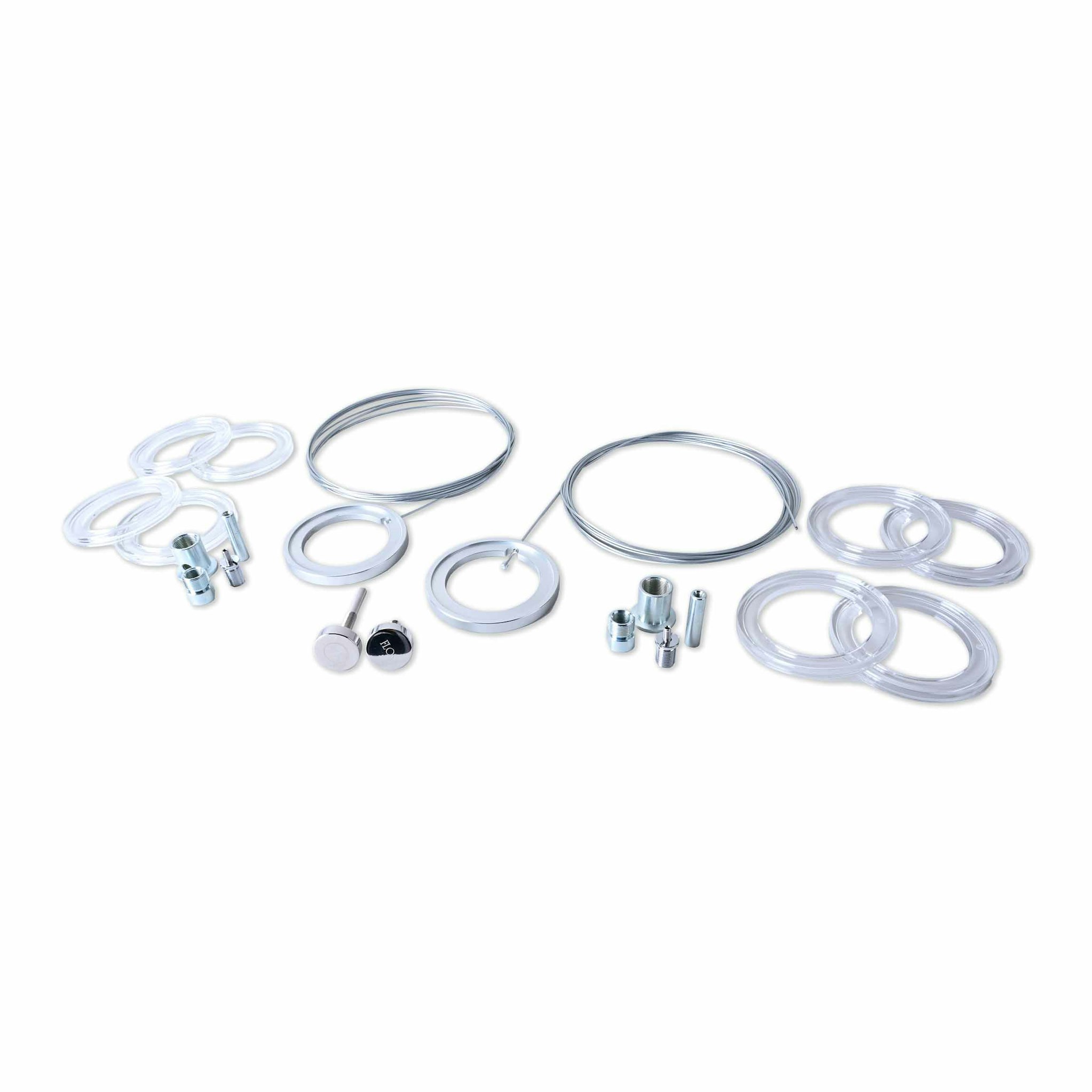

00. Luce Orizzontale S3 UL Assembly Accesories kit
RF34058
00. Luce Orizzontale Suspension 3 White ceiling rose cover – old type
RF3748300
01. Luce Orizzontale/Sferica/Cilindrica steel wire cable fixing kit
RF3750100
02. Luce Orizzontale/Sferica/Cilindrica Power supply
RF32976
03. Luce Orizzontale/Sferica/Cilindrica Ceiling rose dimmer
RF36893
04. Luce Sferica/Cilindrica Ceiling rose cover USA
RF37989
05. Luce Orizzontale/Sferica/Cilindrica Ring and 4 meters steel wire cable
RF3746200
06. Luce Orizzontale Suspension 3 Linear diffuser
RF3748200
07. Luce Orizzontale Suspension 3 Led board
RF3748400
08. Luce Orizzontale Closed glass difusser
RF3746300
09. Luce Orizzontale Open glass difusser
RF3746400
10. Luce Orizzontale/Sferica/Cilindrica 4-piece spacer ring kit
RF39006
x1
Luce Orizzontale S3 UL Assembly Accesories kitRF34058
x1
Luce Orizzontale Suspension 3 White ceiling rose cover – old typeRF3748300
x1
Luce Orizzontale/Sferica/Cilindrica steel wire cable fixing kitRF3750100
x1
Luce Orizzontale/Sferica/Cilindrica Power supplyRF32976
x1
Luce Orizzontale/Sferica/Cilindrica Ceiling rose dimmerRF36893
x1
Luce Sferica/Cilindrica Ceiling rose cover USARF37989
x1
Luce Orizzontale/Sferica/Cilindrica Ring and 4 meters steel wire cableRF3746200
x1
Luce Orizzontale Suspension 3 Linear diffuserRF3748200
x1
Luce Orizzontale Suspension 3 Led boardRF3748400
x1
Luce Orizzontale Closed glass difusserRF3746300
x1
Luce Orizzontale Open glass difusserRF3746400
Thumbnail
x1
Luce Orizzontale/Sferica/Cilindrica 4-piece spacer ring kitRF39006
