Mayday
FU378030Black

Mayday

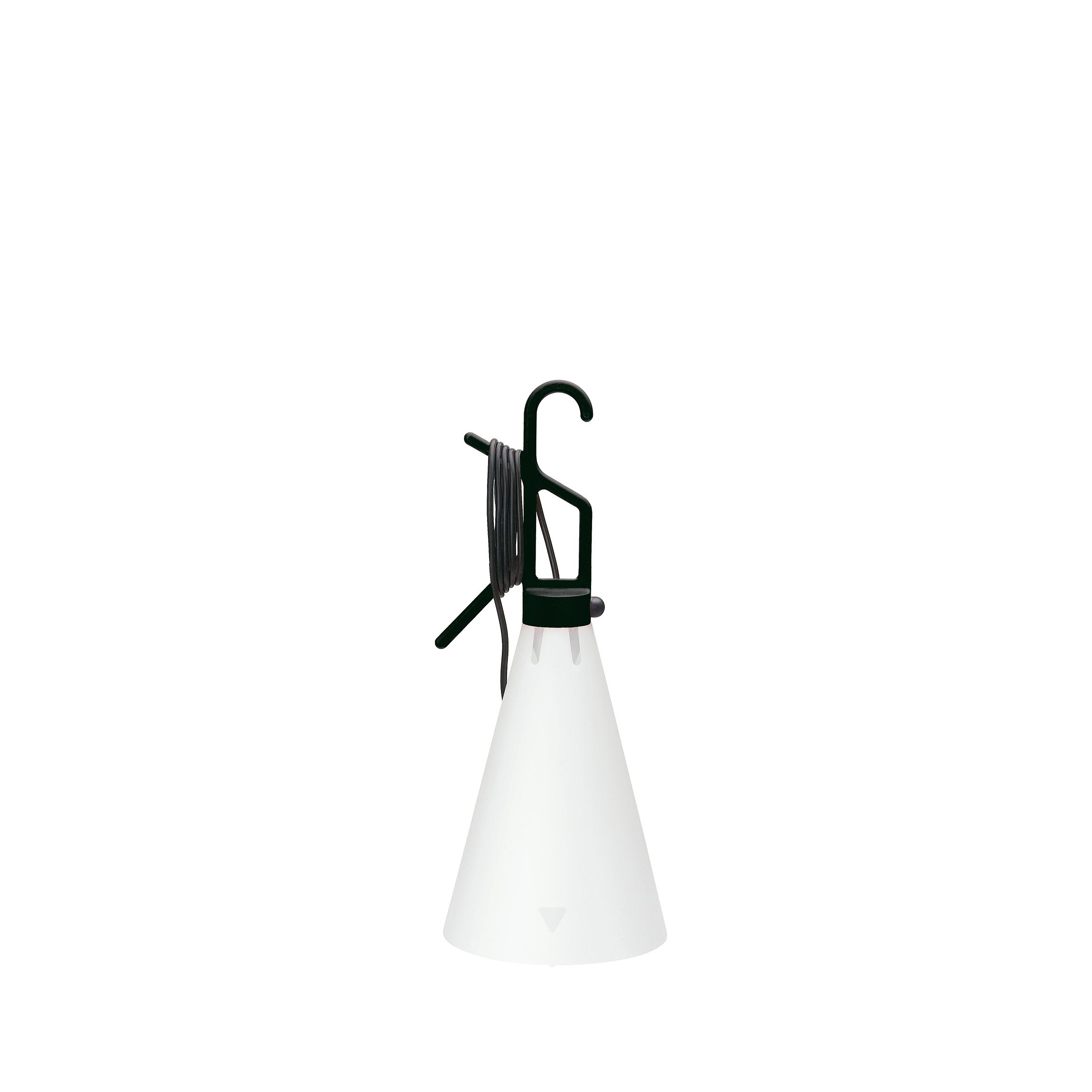

Multipurpose lighting appliance emitting diffused light. Features a hook/handle that doubles as a cable winder and an injection-moulded opaline conical diffuser made from sustainable polypropylene produced from industrial process waste. Button switch located on the handle. As no glue is used in the assembly process, Mayday is easy to dismantle and properly recycle.

Designed by Konstantin Grcic in 1999, Mayday is a multipurpose lamp conceived as a functional tool. Its sturdy build, handle and long cable make it highly portable, while a subtle triangular notch in the diffuser even allows it to hang from a nail. In short, anything is possible with Mayday. The name nods to both the distress call and the optimism of spring. A modern icon now made with sustainable materials, it reflects Grcic’s belief in democratic, purposeful design. Mayday won the Compasso d’Oro in 2001.

Incandescent - 60W

Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Table-MayDay
Main specifications
EAN
8059607029152
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
No
Lamp category
Incandescent
Lamp type
A
Lamp holders
E26
Number of lamps
1
Power (W)
60
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Switch Integrated (Remote Dimmable)
Plug type
Type A
Batteries inside
No
Physical
Color
Black
Length (in)
8.66
Cord color
Black
Cord length (in)
190.945
Net weight (lb)
1.54
Gross weight (lb)
2.54
Package height (in)
21.65
Package width (in)
8.86
Package length (in)
8.86
Package volume (in)
1699.15
IP internal
20
RETILAP
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Technical Drawings

2D
3D
