05.2996.C5 WhiteMy Circuit Dome
Designed by Michael Anastassiades, 2023

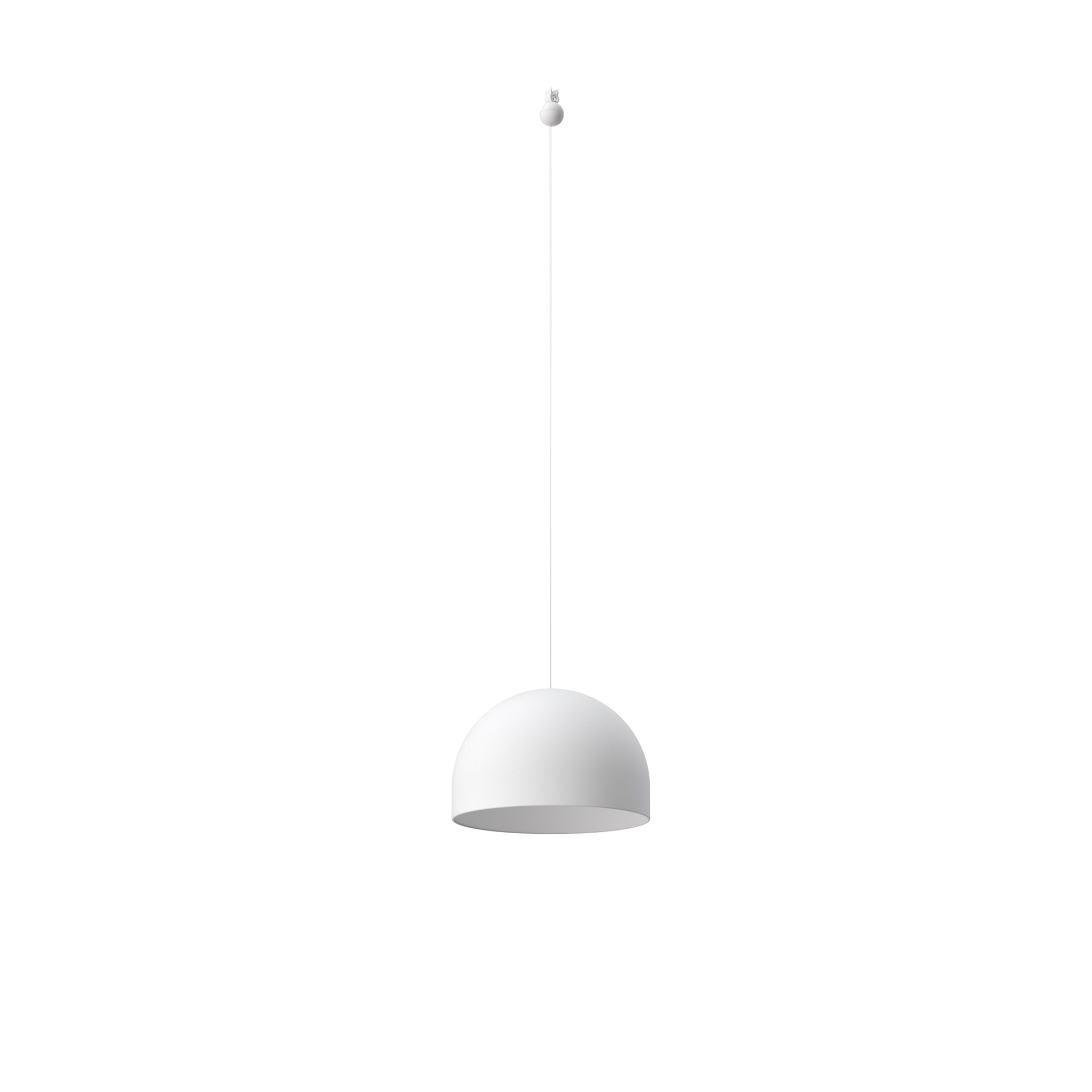

Suspended luminaire for installation in the My Circuit system. Diffused downlight emission. Adjustable suspension height. Casambi version for wireless control.
40W - 2268lm - 3000K - CRI> 90 - Beam° 110
Main specifications
Mounting
Track
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Top LED
Number of lamps
1
Power (W)
40
Source flux (lm)
3700
System flux (lm)
2268
Efficacy (lm/W)
58
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
91
Rg gamut index
92
LED Life / Failure Ratio
L70B50 > 65.000h (Tc=85ºC)
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
110
Electrical
Insulation class
III
Forward voltage (V)
48

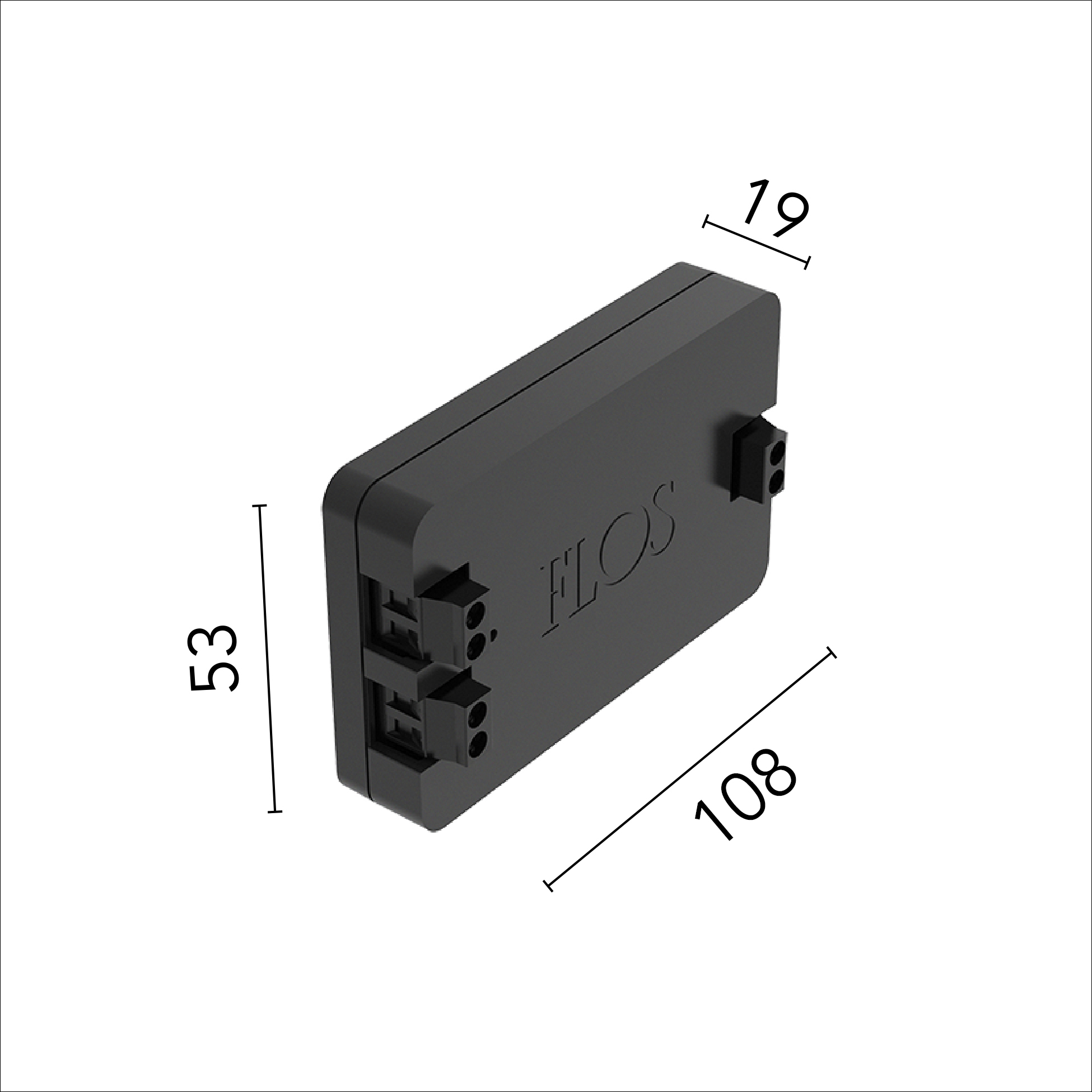

Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable Casambi
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Color
White
Orientation
Fixed
Cord color
White
Net weight (lb)
0.44
IP internal
20
Non-replaceable light source
Replaceable control gear by a professional
