Noctambule
F0286000 Black

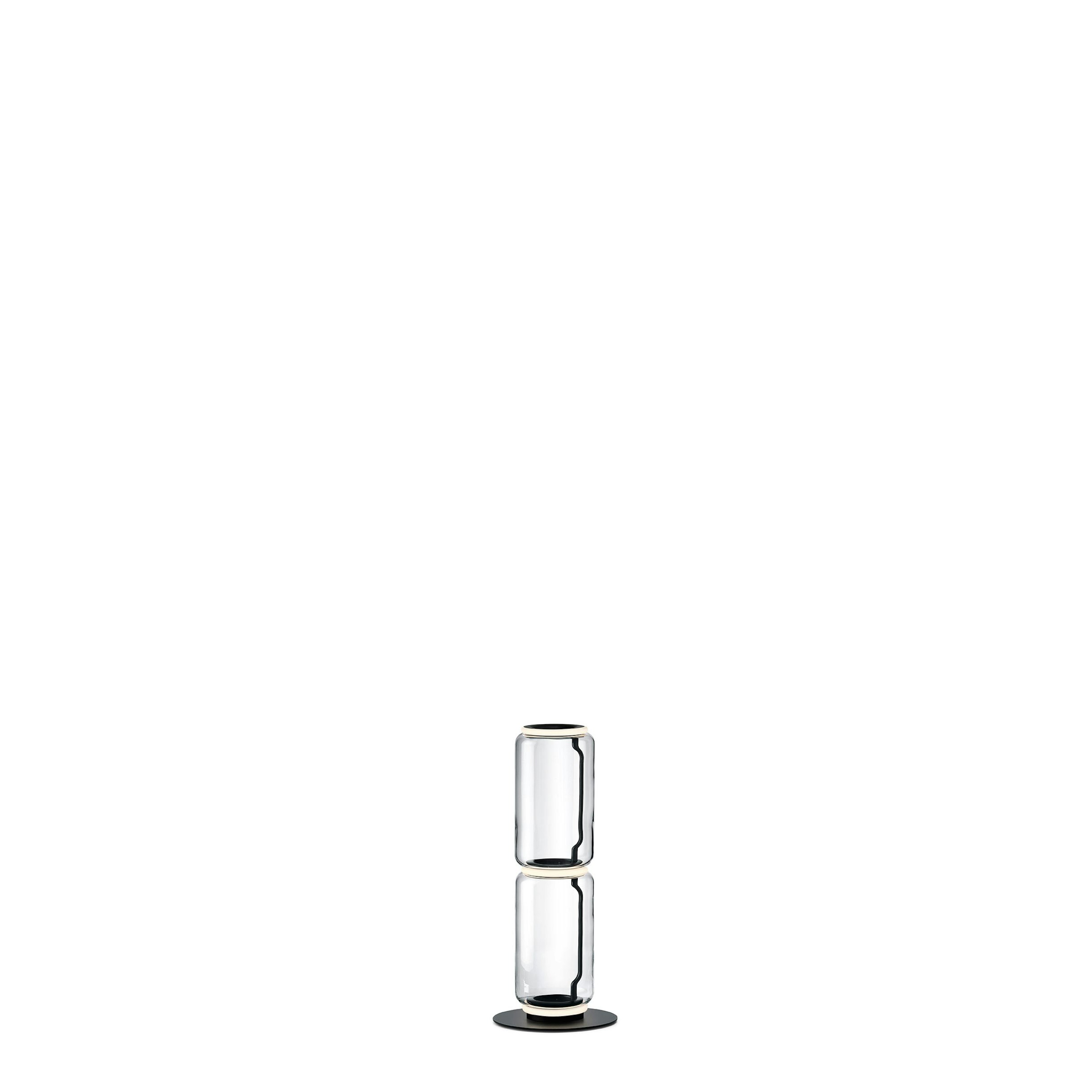

Noctambule Floor 2 High Cylinder Small Base

Floor lamp emitting diffused light. Composed of interconnecting transparent blown-glass cylinders, supported by a large die-cast aluminium base for enhanced stability. Cylinders can be topped with a conical or semi-spherical shaped diffuser. Features hydroformed steel internal arms and injection-moulded optical opal silicone outer-ring diffusers. Supplied with pedal dimmer for 10–100% light adjustment. Wall-mounted power supply unit with interchangeable plugs included.

Designed by Konstantin Grcic, Noctambule takes its name from the French word for a ‘night owl’. By day, its transparent glass cylinders almost disappear into their surroundings. At night, LED rings at the intersections bring the lamp to life, creating luminous columns of light that can grow from three modules to towering heights. A masterful balance of restraint and drama, Noctambule is both system and sculpture, revealing its true character only when illuminated. Noctambule has received multiple design accolades.

27W - 795lm - 2700K

Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Floor-Noctambule-F2_High_Cylinder_Small_Base
Main specifications
EAN
8059607000809
Mounting
Floor
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
27
System flux (lm)
795
Schematic light drawing
F0254000_9W_LED_NOCTAMBULE_F_CYLINDER_450
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Remote included
Dimmable
Yes
Dimming type
Electronic 48V
Dimming interface
Dimmer Integrated
Plug type
Type A, Type C, Type G
Batteries inside
No
Physical
Color
Black
Length (in)
9.84
Cord color
Black
Cord length (in)
70.866
Net weight (lb)
36.49
Gross weight (lb)
46.19
Package volume (in)
12101.06
IP internal
20
CE
RG
UL
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
Gwt 850 (º)
20

Download

Tech spec pdf
Mounting instructions
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL3 Replaceable control gear by an end-user

Spare Parts

F0286000-noctambule-f-flos-boom
03. Noctambule Floor Terminal cap
F0293030
04. Fixing screws kit
RF0254100
05. Ring led diffuser
RF27498
06. Noctambule High Cylinder
F0257000
07. Black plug assembly kit & 48V driver
RF6600130
08. Noctambule switch dimmer assembly (with EMC filter)
RF37082
09. Noctambule Floor Small base
F0261030
10. Noctambule F n°5 adjustable feet kit
RF0254200
