Noctambule
FU027100 Black

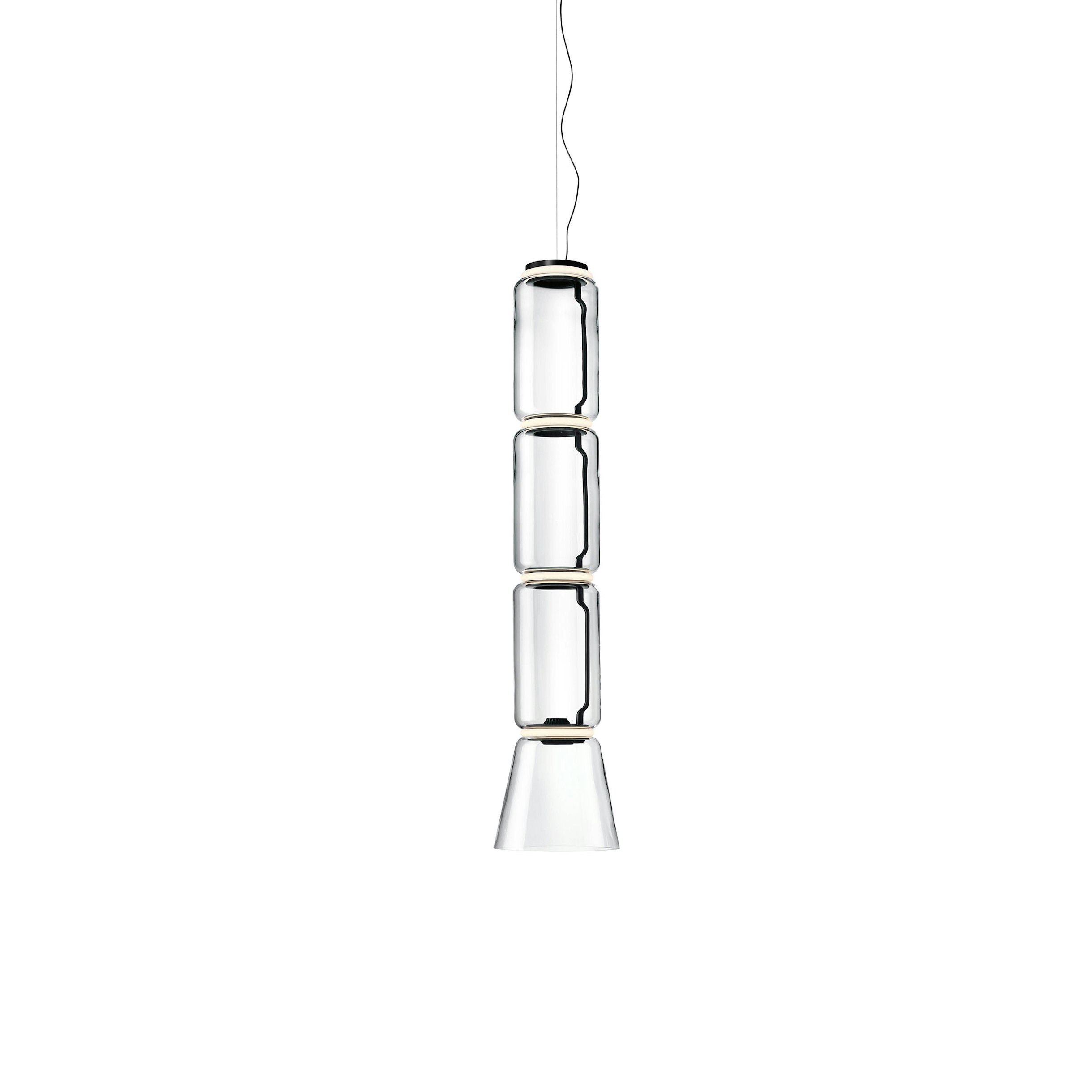

Noctambule Suspension 3 Low Cylinder Cone

Suspension lamp emitting diffused light. Composed of transparent interconnected blown-glass cylinders with a conical or semi-spherical shaped diffuser. Features die-cast aluminium ring connector, hydroformed steel internal arm and injection-moulded optical opal silicone outer-ring diffusers. Ceiling rose houses the power supply unit, enabling dimming from 10–100% via 0–10/1–10 V, PUSH or DALI control.

Designed by Konstantin Grcic, Noctambule takes its name from the French word for a ‘night owl’. By day, its transparent glass cylinders almost disappear into their surroundings. At night, LED rings at the intersections bring the lamp to life, creating luminous columns of light that can grow from three modules to towering heights. A masterful balance of restraint and drama, Noctambule is both system and sculpture, revealing its true character only when illuminated. Noctambule has received multiple design accolades.

54W - 1545lm - 2700K - CRI> 90

Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Suspension-Noctambule-S3_Low_Cylinder_Cone
Main specifications
EAN
8059607073513
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
54
System flux (lm)
1545
Schematic light drawing
F0254000_9W_LED_NOCTAMBULE_S_CYLINDER_H450
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
120-277
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
Black
Length (in)
9.84
Cord color
Black
Cord length (in)
157.480
Canopy height (in)
1.772
Net weight (lb)
37.92
Gross weight (lb)
51.15
Package volume (in)
20428.88
IP internal
20
RG
UL
MEXICO
20

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F0268000-noctambule-s-flos-boom
01. Power supply kit for Arrangements small & Noctambule
RF0410500
02. Led dimmer kit
RF35452
03. Noctambule ceiling rose cover
RF27422
04. Noctambule Suspension attack
F0253030
05. Ring led diffuser
RF27498
06. Fixing screws kit
RF0254100
07. Noctambule Low Cylinder
F0254000
09. Noctambule Cone
F0260000
