F4640030 Black

OK

A pendant light that feels as at home in an industrial space as it would in museum exhibit: The OK Light by German Designer Konstantin Grcic plays with expectations to provide functional light that is surprising and easily directed. It features an ultra-flat LED surface with edge-lighting technology that can be directed over 360 degrees. The electronic components are housed in a small rectangular box that slides vertically over the metal wire of the lamp, which is balanced by a cone-shaped counterweight. The OK Light features a soft-touch switch.

18W - 1551lm - 2700K

Find a Flos store
Request a quote
Also available in:
Technical Drawing
ok-suspension-grcic-flos-F46460019-spech-tech-02-300x263-in
Main specifications
EAN
8059607005064
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
18
System flux (lm)
1551
Schematic light drawing
F46400WOK_18W-LED
Photometric
Light distribution
Symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Remote included
Dimmable
Yes
Dimming type
Electronic 24V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Batteries inside
No
Physical
Color
Black
Length (in)
7.87
Cord color
Black
Cord length (in)
157.480
Canopy color
Black
Canopy lenght/diameter (in)
2.520
Canopy height (in)
0.787
Net weight (lb)
6.44
Package height (in)
5.51
Package width (in)
13.39
Package length (in)
15.35
Package volume (in)
1132.85
IP internal
20
UL
UKCA
CMIM
EAC
RETILAP
CE

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL3 Replaceable control gear by an end-user

Spare Parts

F4640030-ok-flos-boom
02. Ok Anchor with hook
RF4640100
03. Ok Steel cable 4mt.
RF4640200

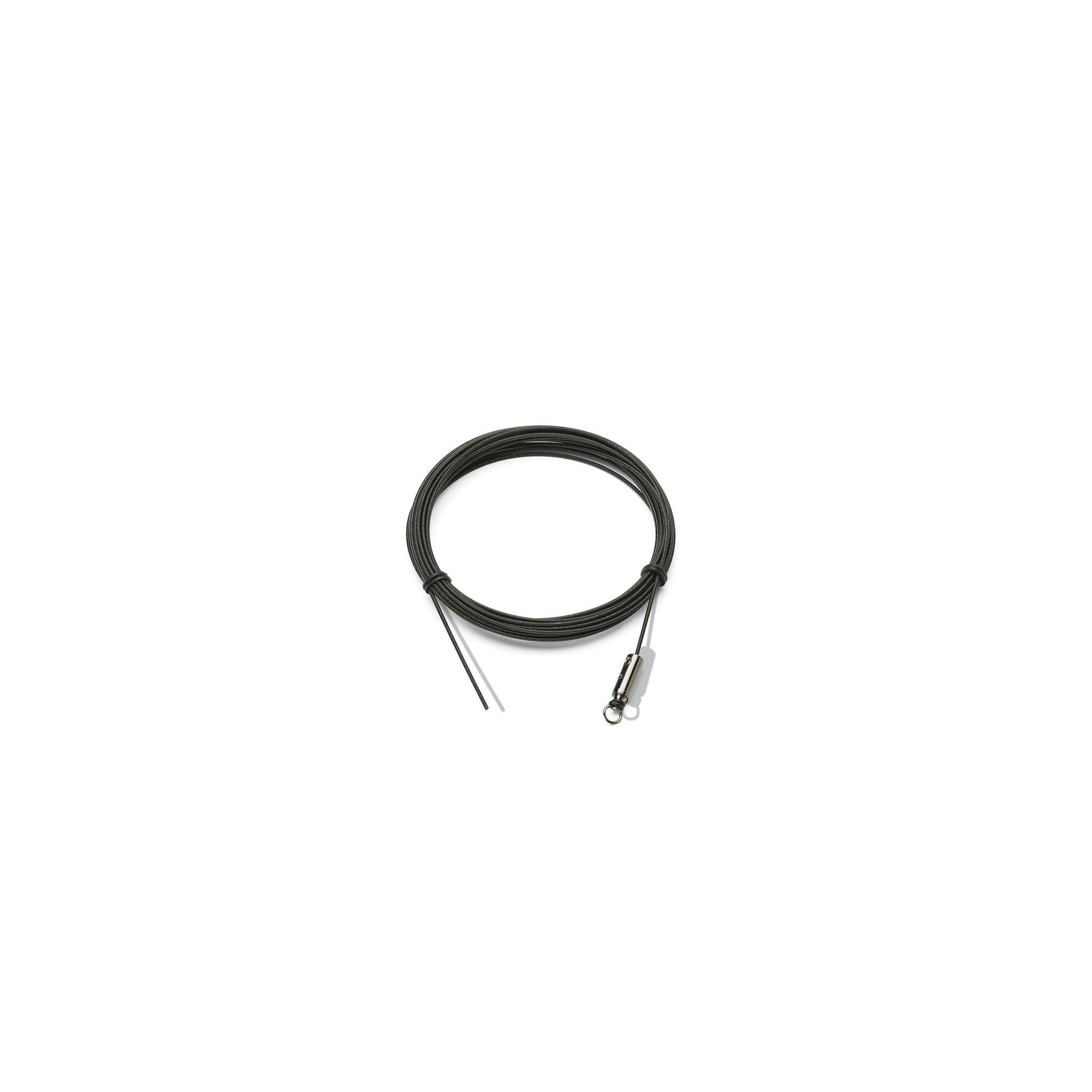

03. Ok Steel cable 6mt.
RF4640300
04. Ok Internal lamp body assembly
RF4640400
06. Ok Black led head assembly
RF28254
08. Ok Counterweight
RF23023
09. Black plug assembly kit & 24V driver
RF6600230
