FU463409 White

Overlap Suspension 2

Suspension lamp emitting diffused light. Internal structure in white powder-coated steel. Diffuser in Cocoon resin with transparent protective spray finish. Interlocking ring in polished, gold-plated galvanic steel. Die-cast zamak ceiling rose in polished, gold-plated galvanic finish.

Designed by Michael Anastassiades, Overlap is a contemporary tribute to Flos’s iconic use of the Cocoon technique, a method originally borrowed from US industry and ingeniously applied to lighting. The two interlocking rings appear to press against the soft membrane, barely revealing the structure beneath. Inspired by both geometry and tension, the lamp invites curiosity by concealing the space where the forms intersect. Overlap is a study in contrast captured in a floating, luminous volume.

Halogen - 2 x 100W

Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Suspension-Overlap-S2
Main specifications
EAN
8059607029206
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp type
T
Lamp holders
E26
Number of lamps
2
Power (W)
100
Photometric
Lighting type
Total
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Color
White
Length (in)
39.37
Cord color
White
Cord length (in)
157.480
Canopy color
Gold
Canopy height (in)
1.260
Net weight (lb)
8.6
Gross weight (lb)
28.44
Package height (in)
35.43
Package width (in)
55.12
Package length (in)
35.43
Package volume (in)
69201.2
IP internal
20
UL
RETILAP
20

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Technical Drawings

2D
3D

Spare Parts

FU463409-overlap-s2-flos-boom

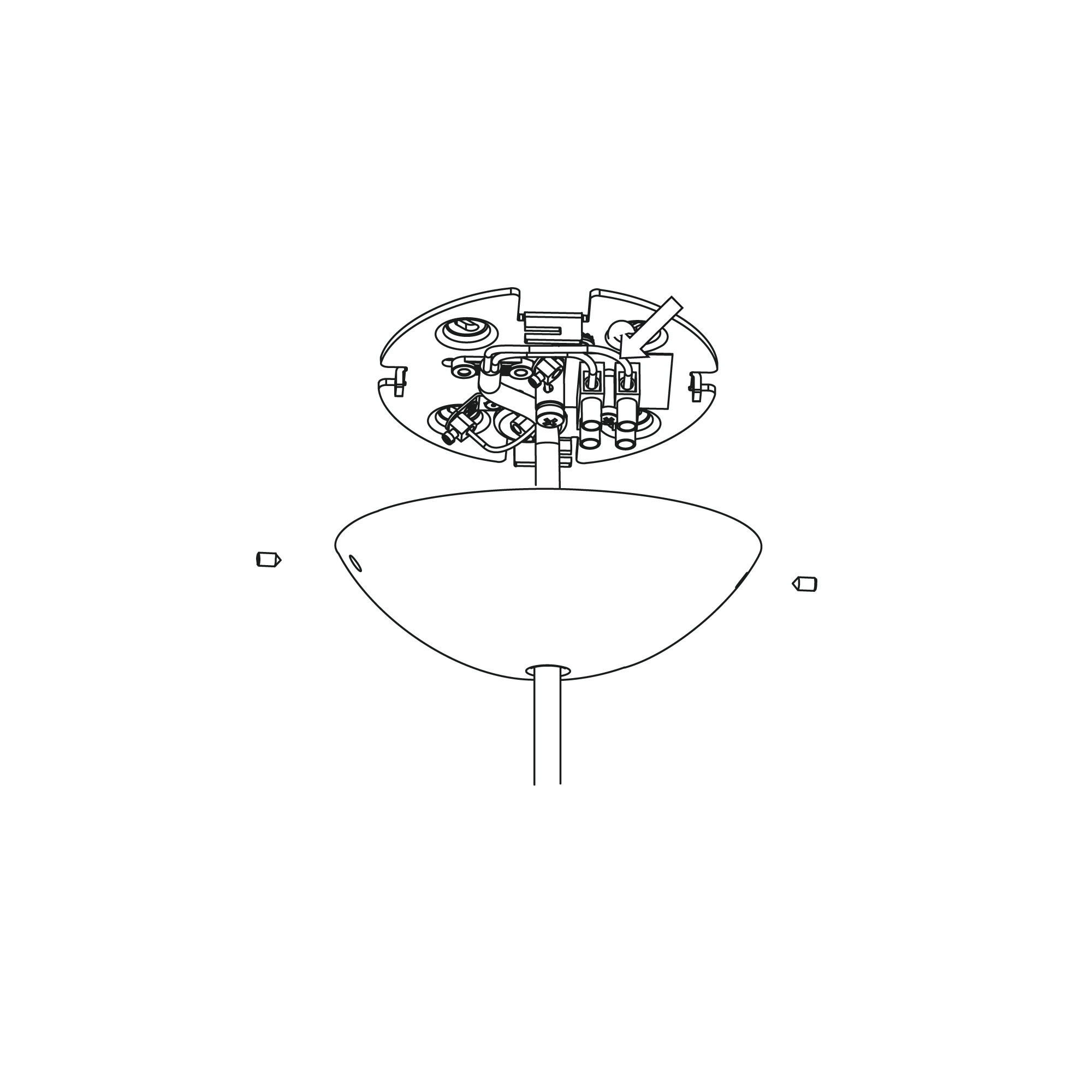

01. Overlap Rose S1-S2
RF4630259
02. Kit with screws and allen key
RF3160100
03. 4mt steel wire Ø1,2 with 19 winded wires
RF01089
03. 3 mt steel cable ø1,2 with 19 winded wires
RF29665
